2. Lamp and Lamp House
2. LAMP AND LAMP HOUSE
About this chapter
This chapter describes how to remove and install the complete Lamp House. Furthermore, instructions on how to align the lamp to
maximize the light output are given.

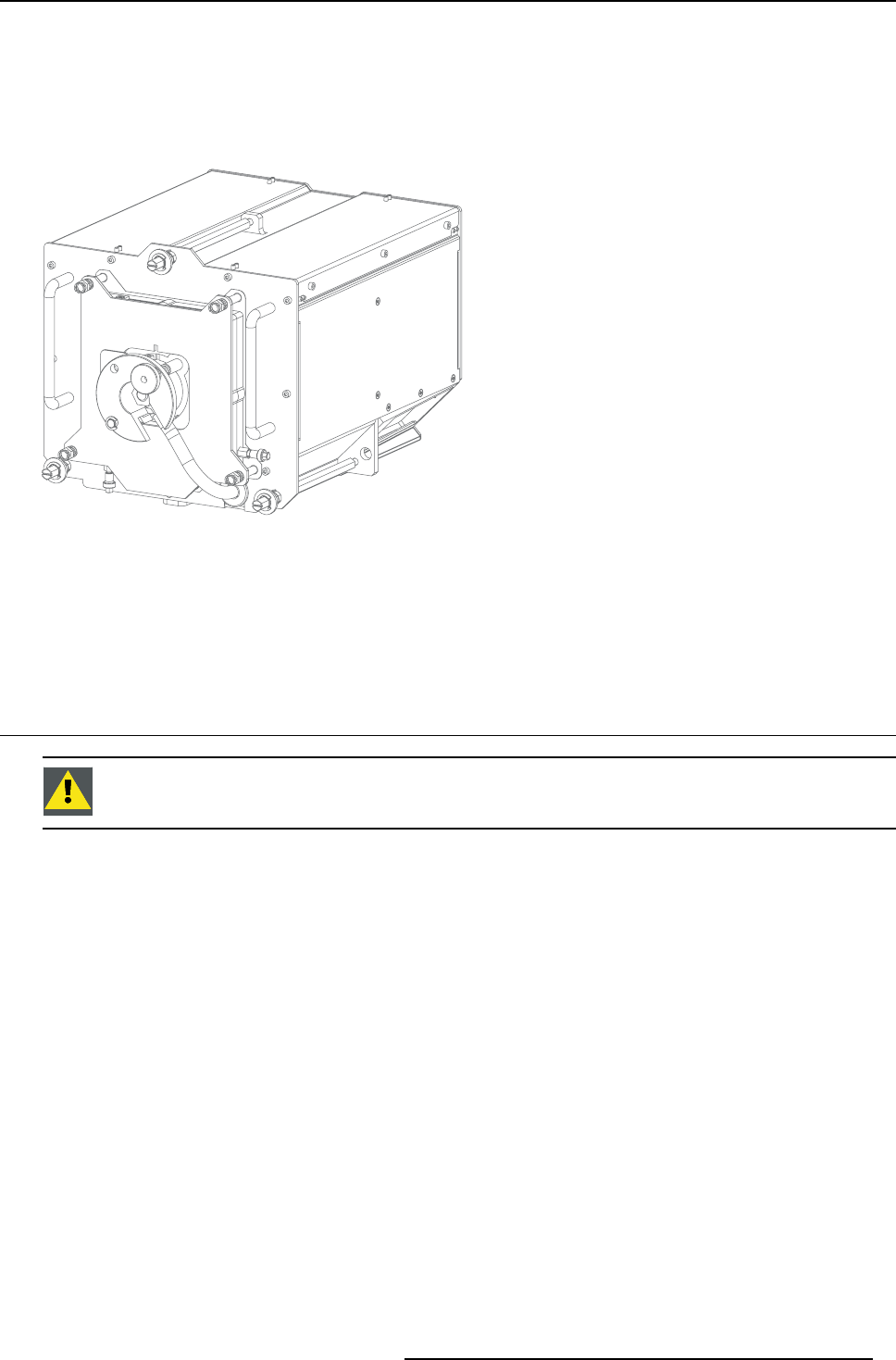

Image 2-1
Overview
• Removal of the Lamp House
• Installation of the Lamp House
• Realignment of the lamp in the Lamp House
2.1 Removal of the Lamp House
WARNING: The procedures below may only be performed by Barco trained and qualified technicians.
Necessary tools
7mmflat screwdriver
How to remove the Lamp House?
1. Switch off the projector and unplug the powe r cord at the projector back side.
2. Let the projector cool down for at leas t 15 minutes before proceeding to the next step.
Warning: The Lam p House is very hot after operation. L
et the projector cool down for at least 15 minutes before proceeding
to the next step. Failure to do so can cause serious injury.
3. Remove the right projector cover. See the installation manua l of the projector.
4. Release the 3 captive screws on the Lamp Ho use.
