2. Lamp and Lamp House
Necessary tools
7 mm open-end wrench
How to realign the lamp in the Lamp House?
1. Switch off the projector.
2. Let the projector cool down for at leas t 15 minutes before proceeding to the next step.
Warning: The Lam p House is very hot after operation. Let the projector cool down for at least 15 minutes before proceeding
to the next step. Failure to do so can cause serious injury.
3. Remove the right projector cover. See the installation manua l of the projector.
4. Switch on the projector and startup the lamp.
5. Press Menu to activate the menus and select Lamp → Z-axis.
6. Press ENTER to display the current light output.
7. Release the lock nuts for the X -axis, Y-axis and Z-axis (if applicable).
8. Adjust the X, Yand Z-axis for maximum light output. Carefully turn the thumbscrews in one direction, andonc e ov er the m axim um,
turn slightly in the opposite direction to reach the maximum light output again. Do this for each direction and repeat this adjustment
cycle minimu m twice.
9. Tighten the lock nuts for the X-axis, Y-axis and Z-axis (if applicable).
43
5
21
6

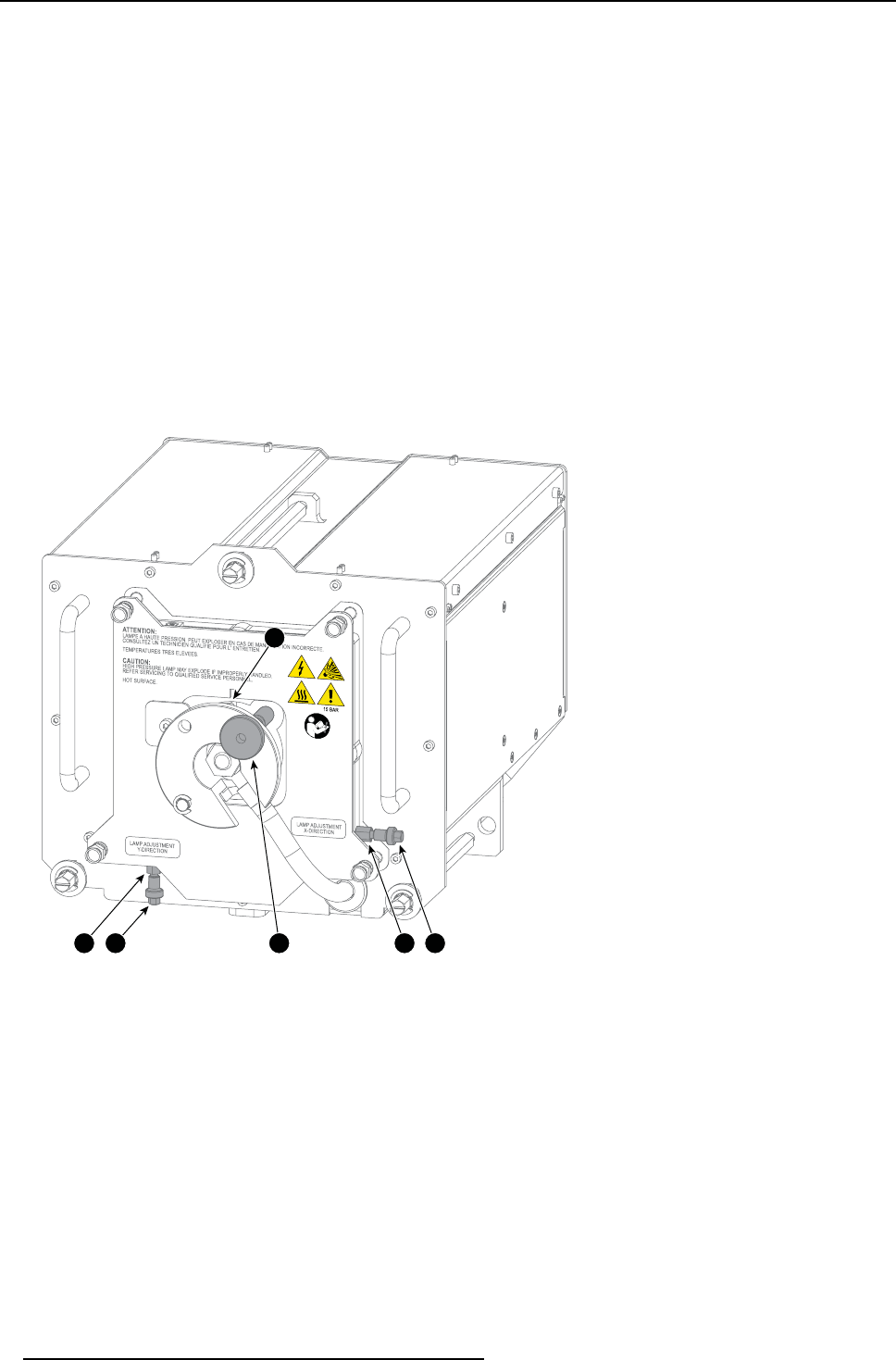

Image 2-6
HDX Lamp House
1Xlock
2 X adjustment
3Ylock
4 Y adjustment
5 Z lock (3 mm Allen wrench)
6 Z adjustment
10.Sw itch off the projector.
11.Install the right projector cov
er. See the installation manual of the projector.
8
R5905109 LAMP HOUSE WITH 2.5 KW LAMP 27/05/2014
