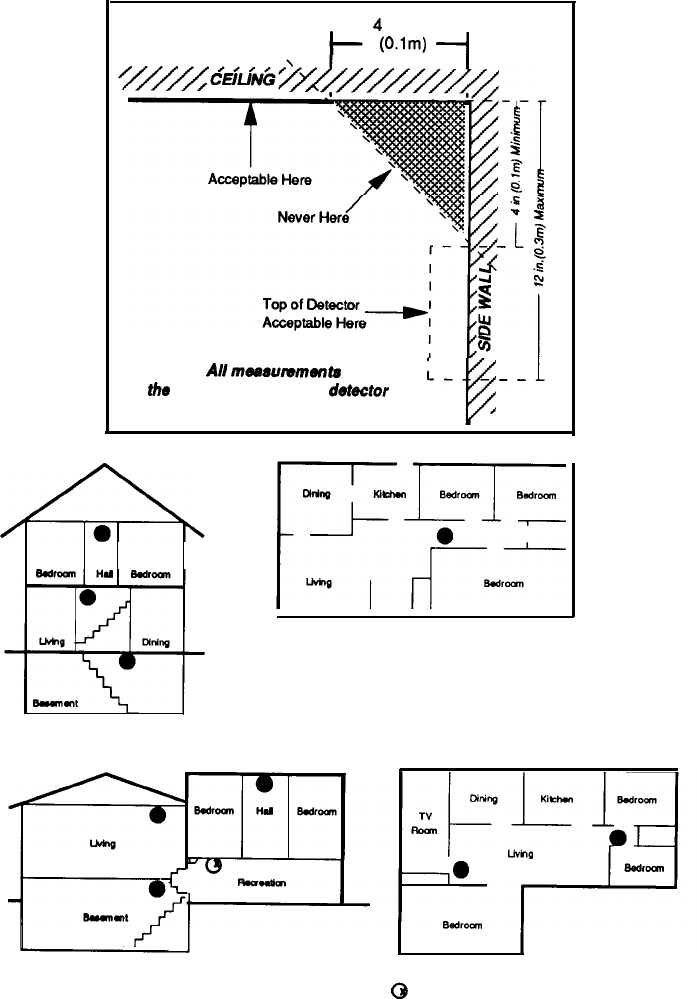

Smoke Detector Placement
4
inches
@lm)
-_I
NOTE:
Allmae~~mmennts
are to
the
closest edge of the
dote&or
A Smoke Detector should
be located on each story.
A Smoke Detector should be located
between the sleeping area and the rest
of the family living unit.
l
Indicates required smoke detector
@
Indicates smoke detector is optional
if door is not provided between living
and recreational rooms.
16
