Terreon
®
Multi-Fount Washfountains Parts and Service Guide
4 Bradley Corporation • 215-1447 Rev. F; EN 07-005A
1/30/2008

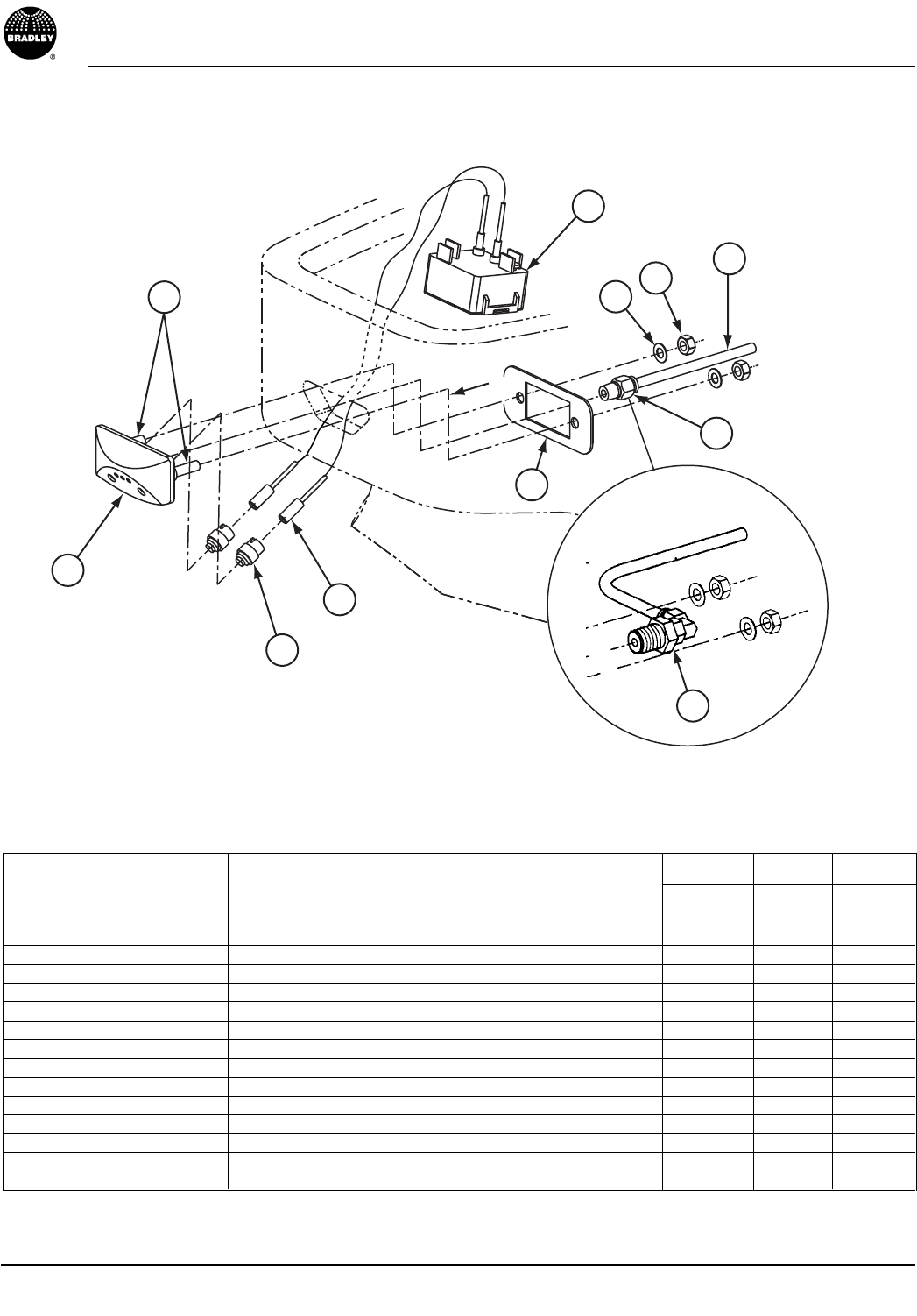

Infrared (IR) — Sprayhead (24V Plug-in Transformer)
Corner Tri Quad
Item Part No. Description Qty Qty Qty
1 269-1608 Sensor - Adaptive 2 3 4
* P10-569 Hook and Loop Fastener Strip (sensor mounting) 2 3 4
2 269-1190 Window 4 6 8
3 115-131 Sprayhead 2 3 4
4 176-119 Threaded Rod 4 6 8
5 140-748 Backplate 2 3 4
6 161-026 Nut 4 6 8
7 142-002BS Lockwasher 4 6 8
8 269-871 Fitting Straight (front sprayhead) — 1 2
9 269-628 Fitting Swivel 90° (side sprayheads) 2 2 2
10 R68-600011-R Tubing 1/4", Red (Specify Length in feet) — — —
10 R68-600011-G Tubing 1/4", Green (Specify Length in feet) — — —
10 R68-600011-B Tubing 1/4", Black (Specify Length in feet) — — —
10 R68-600011-Y Tubing 1/4", Yellow (Specify Length in feet) — — —
Parts List — Infrared Sensor and Sprayhead Assembly
* Not Illustrated.
