Terreon

®

Multi-Fount Washfountains Parts and Service Guide

20 Bradley Corporation • 215-1447 Rev. F; EN 07-005A

1/30/2008

TouchTime

®

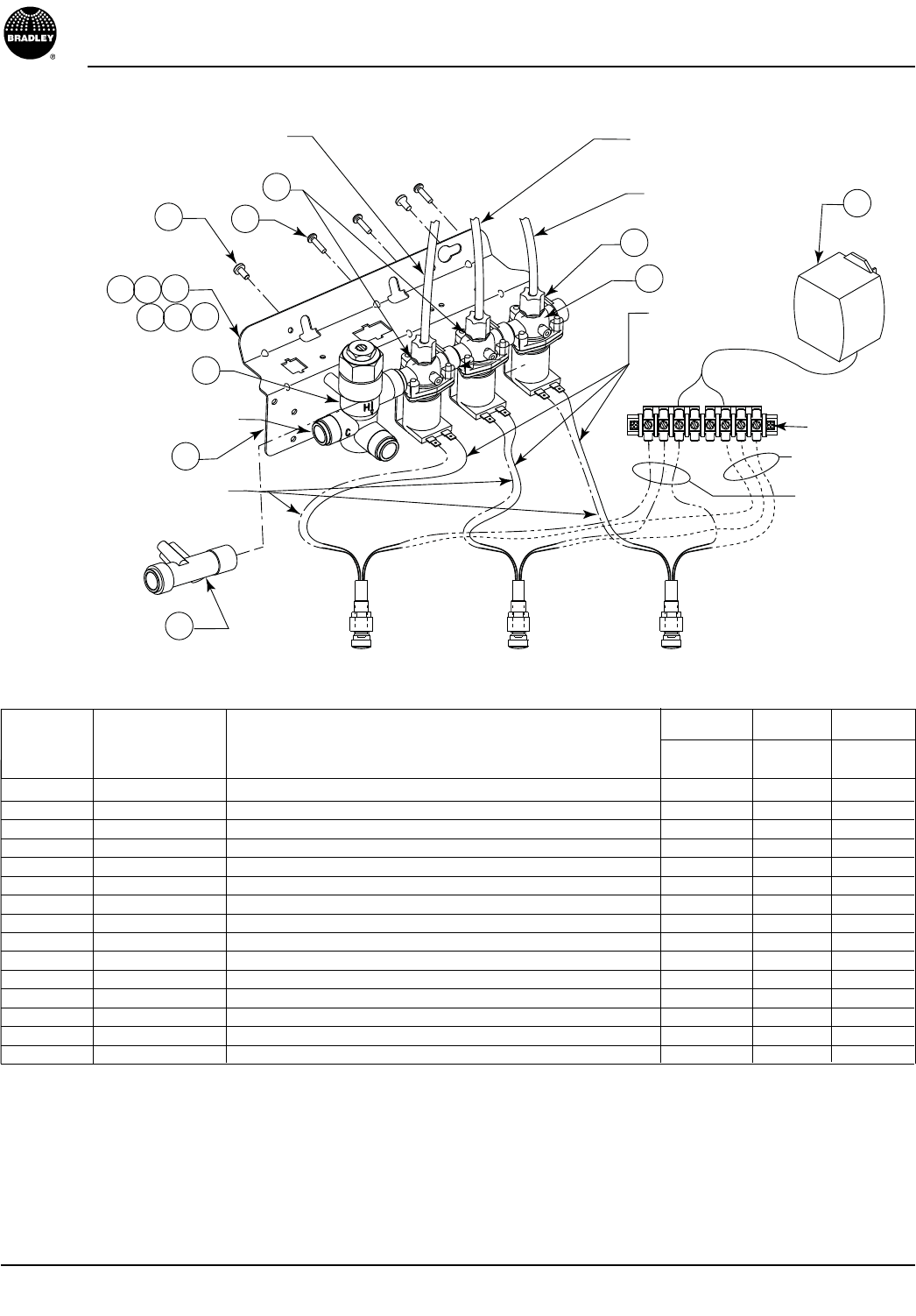

Metering Valve (TT) — Assembly

Supply Inlet

Green Supply Tube

(From Sprayhead)

Red Supply Tube

(From Sprayhead)

Black Supply Tube

(From Sprayhead)

Left

Button

Brown Wires

Terminal Block

Black Wires

Green Wires

Gray Wires

Center

Button

Right

Button

10

9

15

12

11

13

7

8

14

3

2

6

5

4

1

Tri-Fount Shown

Corner Tri Quad

Item Part No. Description Qty Qty Qty

1 S45-2088 TT TMA Dual Valve Assembly (Transformer not included) 1 — —

2 S45-2089 TT TL Dual Valve Assembly (Transformer not included) 1 — —

3 S45-2094 TT TMA Tri Valve Assembly (Transformer not included) — 1 —

4 S45-2095 TT TL Tri Valve Assembly (Transformer not included) — 1 —

5 S45-2164 TT TMA Quad Valve Assembly (Transformer not included) — — 1

6 S45-2165 TT TL Quad Valve Assembly (Transformer not included) — — 1

7 S01-520 Vernatherm Valve, 4 GP 1 1 1

8 140-928 Bracket, Ganged Valve 1 1 1

9 P18-054 Screw 10-24 x 3/8 PN 2 2 2

10 S07-068A Solenoid Valve, 24 VAC, through 1 2 3

11 S07-068 Solenoid Valve, 24 VAC, closed 1 1 1

12 110-231 Compression Nut, 1/4" 2 3 4

13 160-447 Screw 8-16 x 5/8 PN 2 3 4

14 S39-685 Adapter, Valve Inlet 1 1 1

15 S83-134 Transformer 1 1 1

Parts List — TouchTime Metering Valve Assembly
