Terreon
®
Multi-Fount Washfountains Parts and Service Guide
14 Bradley Corporation 215-1447 Rev. F; EN 07-005A
1/30/2008

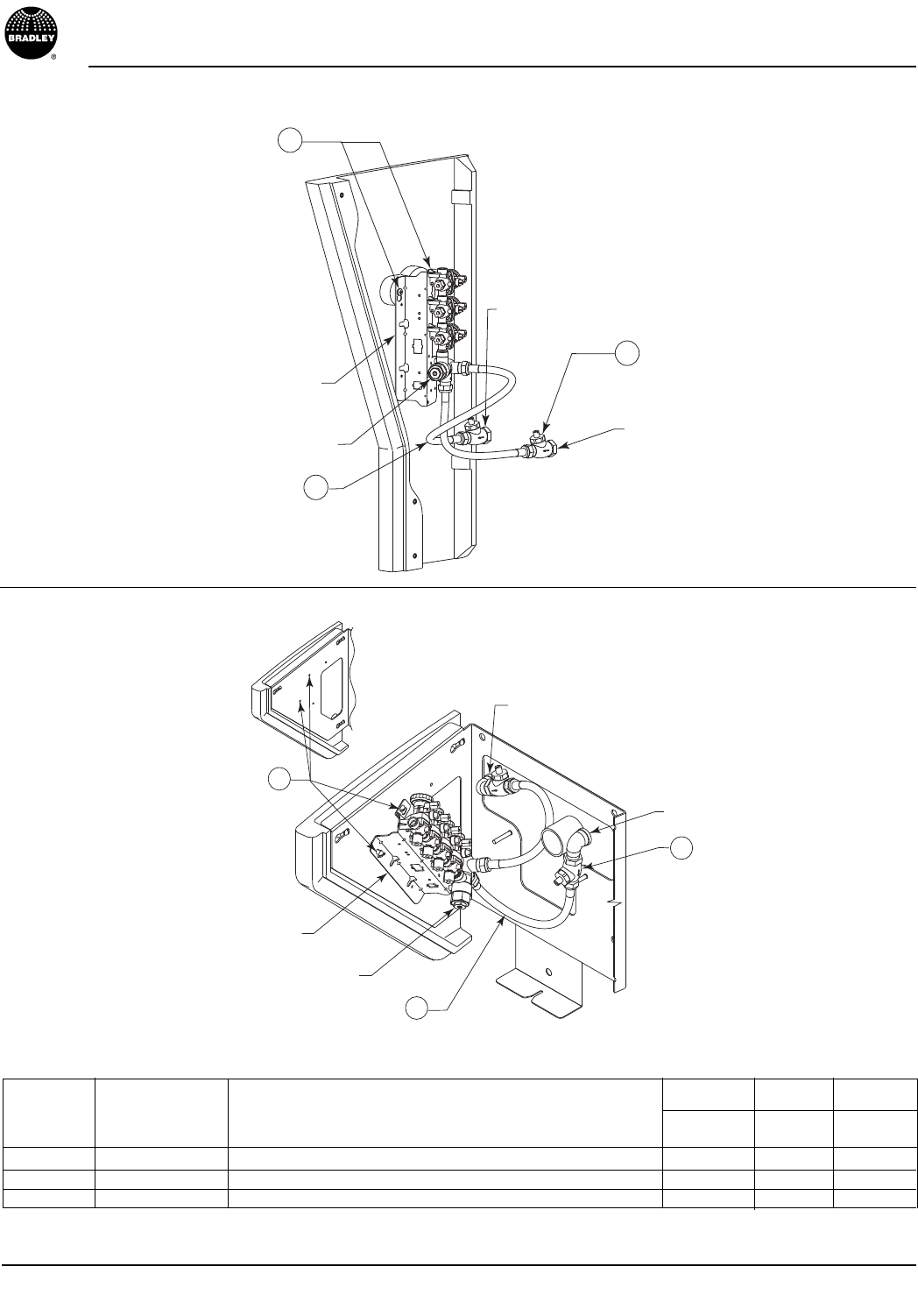

AST4 & IR Supply and Mixing Valve — Floor and Wall Mounted
Cold Supply Inle
t
Hot Supply
Inlet
Vernatherm™ TMV
Air Valve Assembly
1
3
2
Tri-Fount Shown
Cold Supply Inlet
Hot Supply Inlet
Vernatherm™ TMV
Air Valve Assembly
2
1
3
Quadra-Fount Shown
Floor Mount
Wall Mount
Corner Tri Quad
Item Part No. Description Qty Qty Qty
*1 269-1735 Flex Hose ½" NPT x 24" (Supply to TMV) 2 2 2
*2 S27-102 Check Stop 2 2 2
3 160-169 Screw 2 2 2
Parts List — Supply
* Use Qty 1 for TL option, all models.
