528194-YTG-F-1210
Johnson Controls Unitary Products 59
ZF150
FRONT
See detail B for drain location
See detail A for gas inlet
C
D
E
F
B
4 3/16
27 5/16
89
21 3/16
11 3/8
A
LEFT
59
14.92
58.09
14.92
14.92
29.95
30.11
45.64
Ø 24.47 TYP. 4 PL.

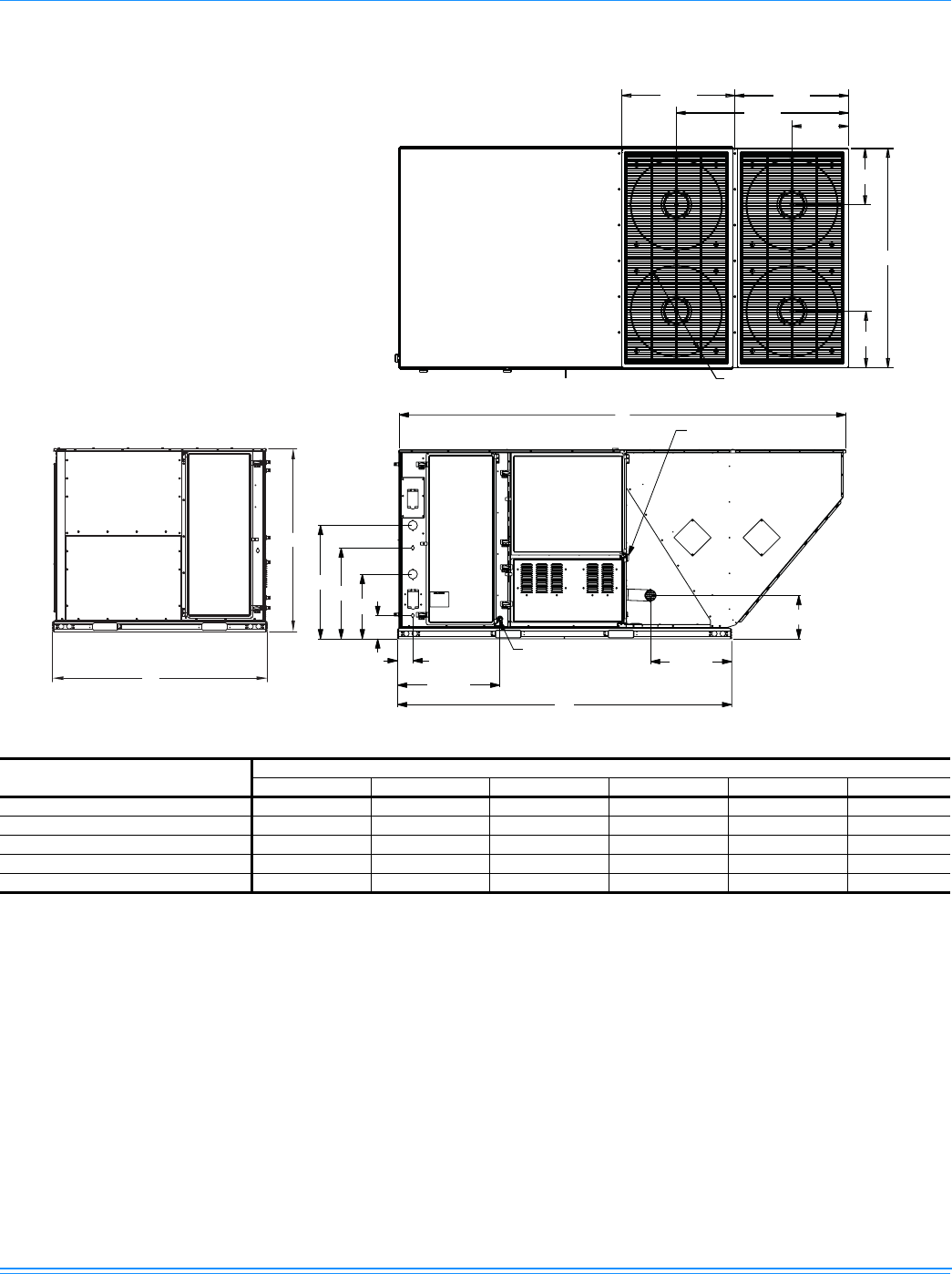

ZF078-150 Unit Physical Dimensions
Unit Model Number
Dimension (in.)
ABCDEF
078 42 89 22 1/8 18 3/16 15 3/16 6 3/16
090 42 89 22 1/8 18 3/16 15 3/16 6 3/16
102 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
120 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
150 50 3/4 119 1/2 30 3/16 24 3/16 17 3/16 6 3/16
