254892-YTG-C-0606
2 Unitary Products Group
All dimensions are in inches. They are subject to change
without notice. Certified dimensions will be provided upon
request.

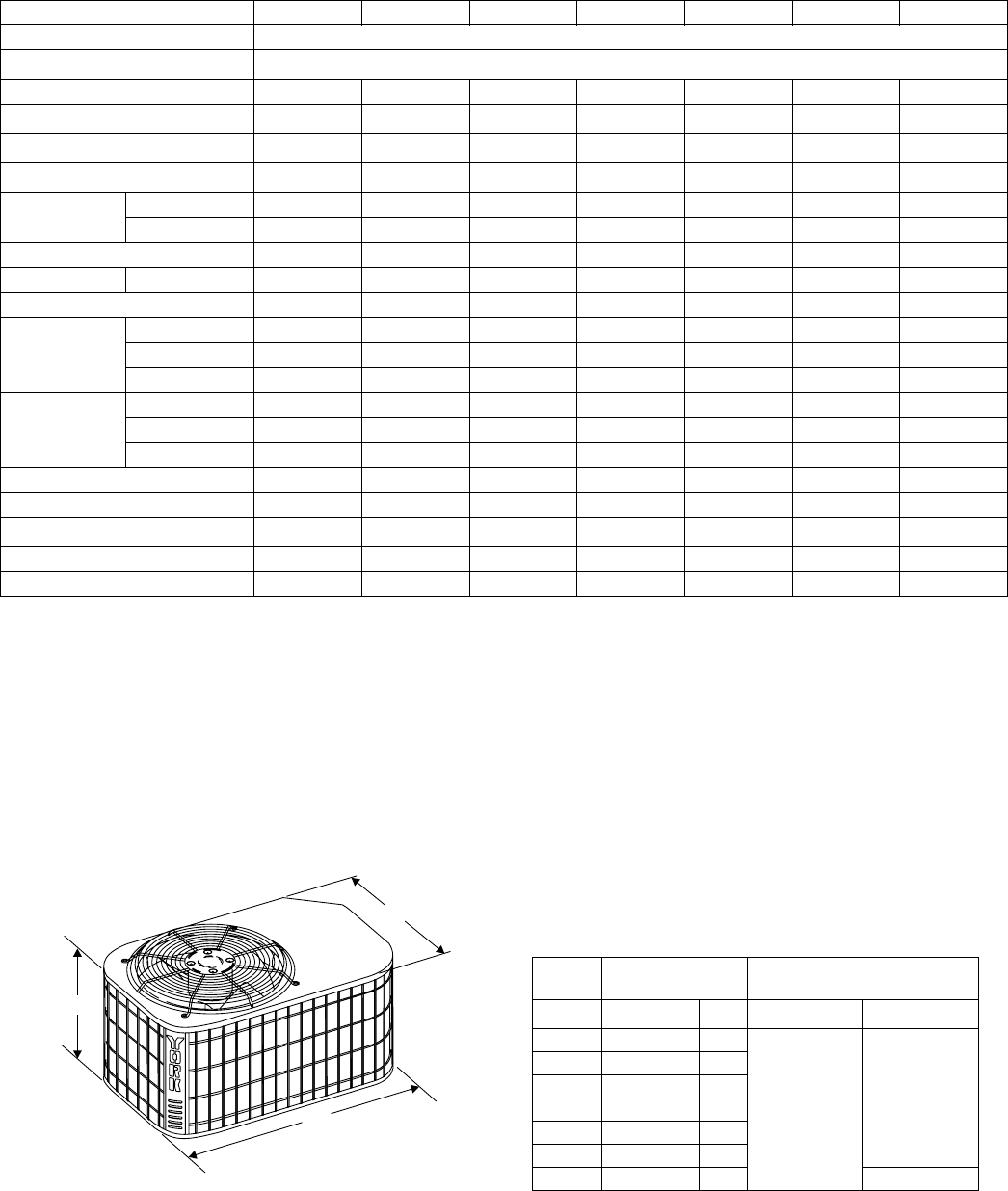

PHYSICAL AND ELECTRICAL DATA - 1 PHASE
MODEL H2RD018S06 H2RD024S06 H2RD030S06 H2RD036S06 H2RD042S06 H2RD048S06 H2RD060S06
Unit Supply Voltage 208-230V, 1φ, 60Hz
Normal Voltage Range
1
187 to 252
Minimum Circuit Ampacity 9.4 11.8 15.1 18.3 18.3 30.3 32.7
Max. Overcurrent Device Amps
2
15 20 25 30 30 50 50
Min. Overcurrent Device Amps
3
15 15 20 20 20 35 35
Compressor Type
4
Recip Recip Recip Recip Recip
Scroll
B
Scroll
B
Compressor
Amps
Rated Load 6.4 9.0 10.7 13.4 13.5 23.0 25.0
Locked Rotor 36 48 61 78 78 115 150
Crankcase Heater No No No No No No No
Fan Motor Amps Rated Load 0.8 0.5 1.5 1.5 1.5 1.5 1.5
Fan Diameter Inches 18 22 22 22 22 24 24
Fan Motor
Rated HP 1/8 1/15 1/4 1/4 1/4 1/4 1/4
Nominal RPM 1075 850 850 850 850 850 850
Nominal CFM 2150 2,200 3100 3150 3550 3550 3600
Coil
Face Area Sq. Ft. 11.43 15.72 15.72 15.72 23.60 24.00 27.00
Rows Deep1111111
Fin / Inches 22 18 22 22 22 22 22
Liquid Line OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line OD (Field Installed) 3/4 3/4 3/4 7/8 7/8 7/8 1-1/8
Unit Charge (Lbs. - Oz.)
5
4 - 9 5 - 8 5 - 13 6 - 0 8 - 13 8 - 6 10 - 2
Charge Per Foot, Oz. 0.68 0.68 0.70 0.70 0.70 0.70 0.76
Operating Weight Lbs. 151 151 183 183 193 215 220
1. Rated in accordance with ARI Standard 110, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. All scrolls listed with a superscript “B” are Bristol scrolls. All scrolls listed with a superscript “C” are Copeland scrolls.
5. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15
feet, add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.
C
A
B
DIMENSIONS
Unit
Model
Dimensions
(Inches)
Refrigerant Connection
Service Valve Size
A
1
1. Including Fan Guard.
* Adapter fitting required for 1-1/8” line set.
B C Liquid Vapor
018 23 35 23
3/8”
3/4”024 27 37 27
030 27 37 27
036 27 37 27
7/8”042 39 37 27
048 34 43 32
060 38 43 32 7/8”*
