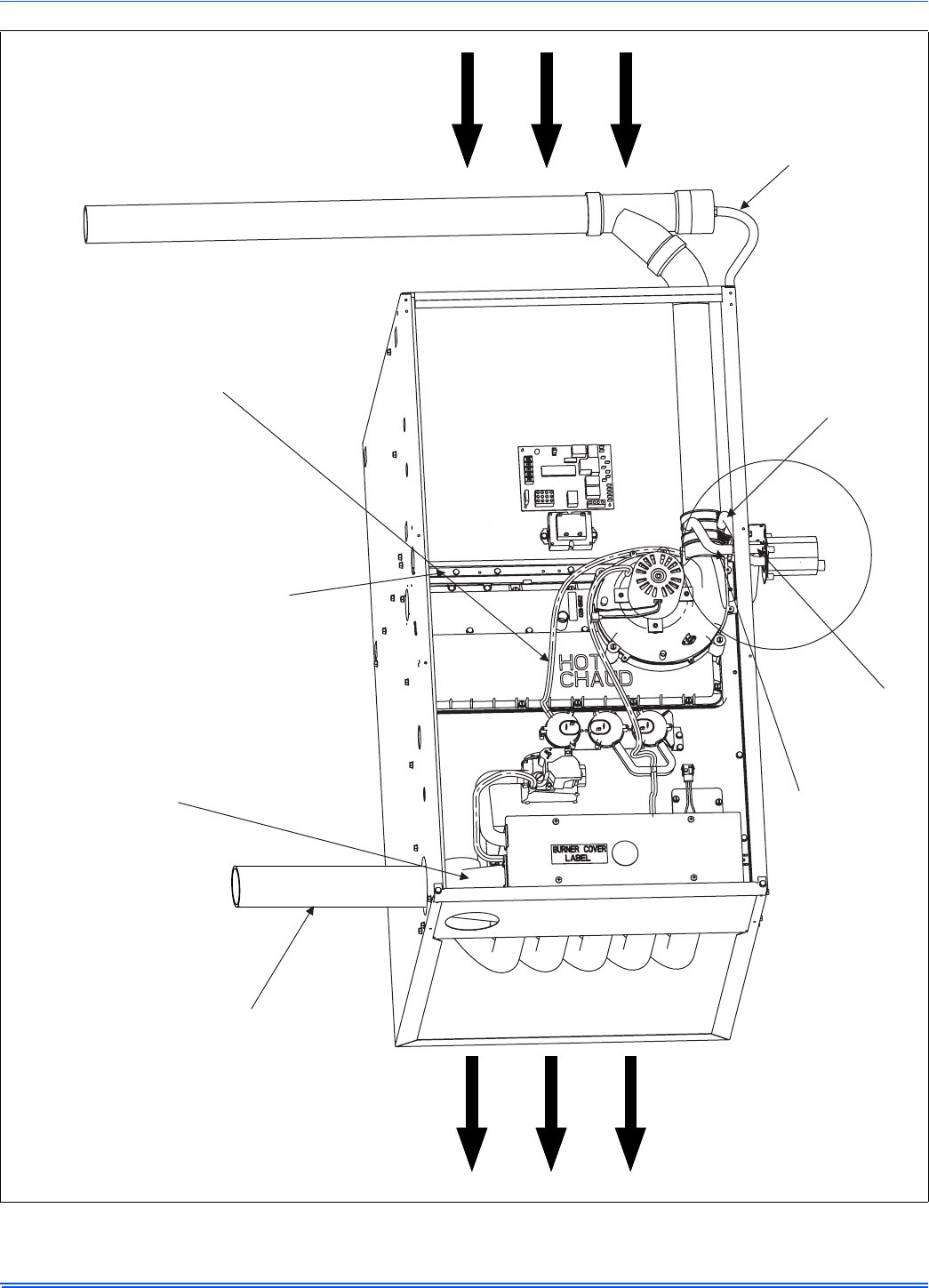

FIGURE 31: Horizontal Left Condensate Drain Hose Configuration
CUT FROM
HOSE #5 (1-1/2” long)
HOSE #9
THIS TUBE FOR THE
BLOCKED CONDENSATE
SWITCH MUST BE
RELOCATED FROM ITS
ORIGINAL FACTORY
INSTALLED LOCATION
BEHIND THE COMBUSTION
AIR PIPE TO THE TAP BEHIND
THE DRAFT INDUCER. A SMALL
HOSE IS INSTALLED ON THE TAP
TO FACILITATE THIS.
(STEP 7)
HOSE #6
BLOCKED
CONDENSATE
TAP
HOSE #4
AIR
COMBUSTION
PIPE
3-WAY TRANSITION (Shown)
(Provided with some furnaces)
