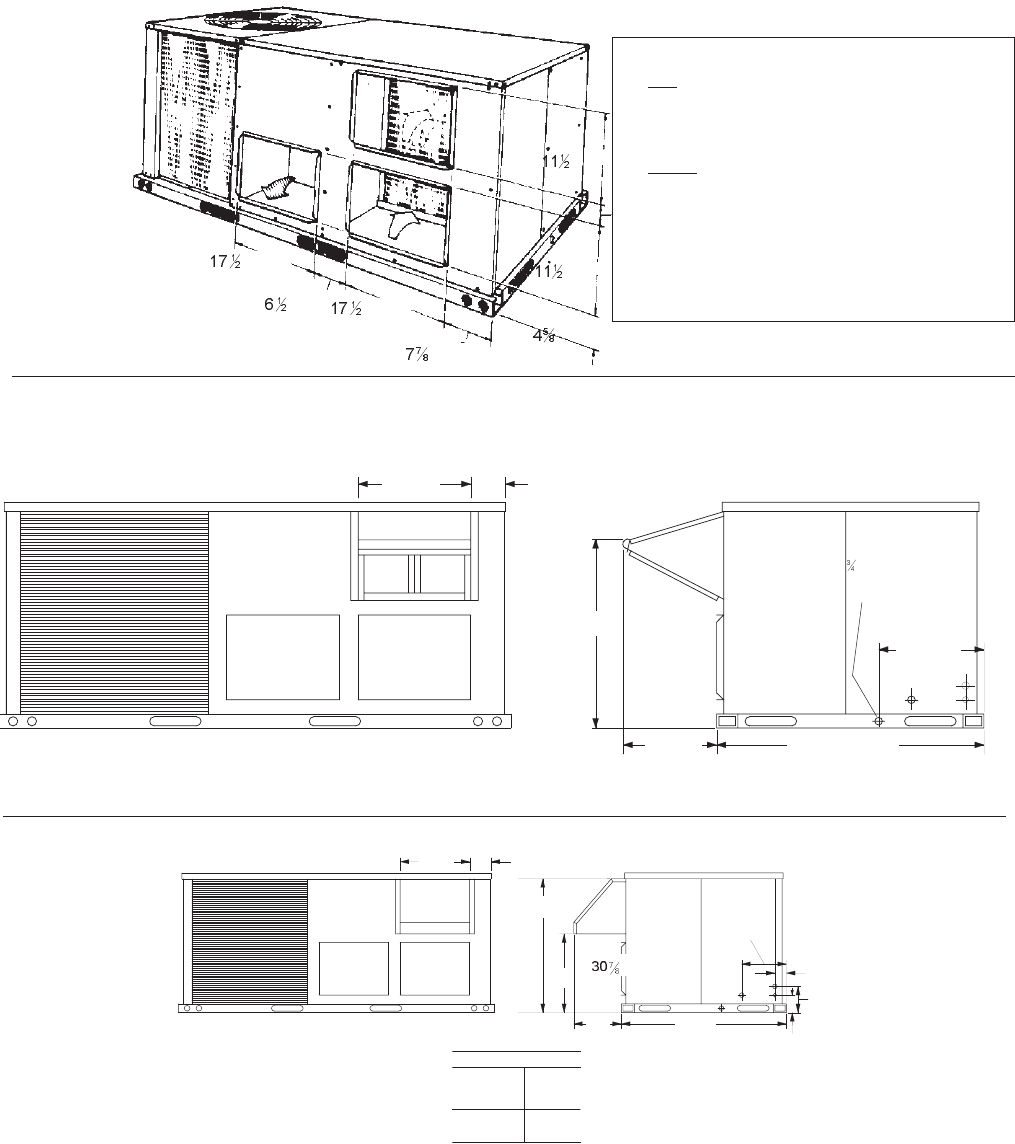

UNIT DIMENSIONS - CONT'D. (BCH - 3, 4 & 5 TON)
REAR VIEW
SIDE SUPPLY AND RETURN AIR
DUCT OPENINGS
3
DUCT COVERS - Units are shipped with all air duct
openings covered.
For side
duct applications;
1.Remove and discard the supply and return air duct
covers.
2.Connect ductwork to duct flanges on the rear of the
unit.
For bottom
duct applications;
1. Remove the side supply air duct cover to gain ac
-
cess
to the bottom supply air knockout panel.
2. Remove and discard the bottom knockout panel.
3. Replace the side duct cover.
4. With filter section access panel removed from the
unit, remove and discard the bottom return air
knockout panel.
2 7 - 1 / 2
1 - 5 / 8
2 7 - 1 / 2
1 9 - 1 / 2
4 4 - 7 / 8
1 9 - 3 / 4
“ CONDENSATE
DRAIN
(must be trapped)
DETAIL “A”
UNIT WITH ECONOMIZER RAINHOOD
L.H. END VIEW
REAR VIEW
2 7 - 1 /2
7 -1 /4
2 7 -1 /2
1 9 -1 /8
"A "
4 4 -7 /8
4 - 3 /8
3 - 1 /2
8 - 1 /4
1 0 -1 /4
L .H . E N D V I E W
R E A R V IE W
D IM E N S IO N " A "
F IX E D
O U T D O O R
A IR D A M P E R
1 2
M O T O R IZ E D
D A M P E R
1 6 - 1 /2
DETAIL “B”
UNIT WITH FIXED OUTDOOR AIR/MOTORIZED DAMPER RAINHOOD
