Williams 1403612 Furnace User Manual

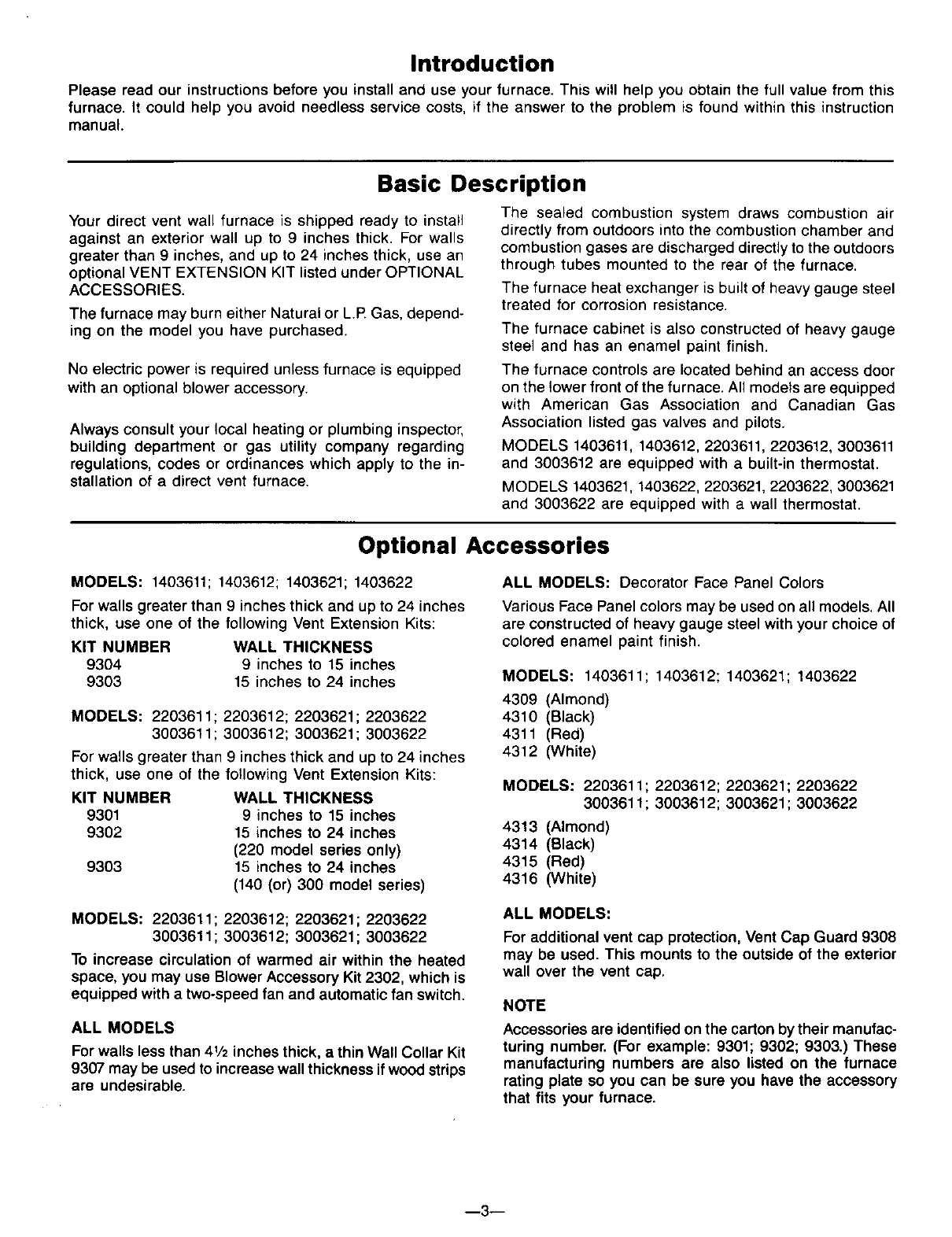

Introduction
Please read our instructions before you install and use your furnace. This will help you obtain the full value from this
furnace. It could help you avoid needless service costs, if the answer to the problem is found within this instruction
manual.
Basic Description
Your direct vent wall furnace is shipped ready to install
against an exterior wall up to 9 inches thick. For walls
greater than 9 inches, and up to 24 inches thick, use an
optional VENT EXTENSION KIT listed under OPTIONAL
ACCESSORIES.
The furnace may burn either Natural or L.R Gas, depend-
ing on the model you have purchased.
No electric power is required unless furnace is equipped
with an optional blower accessory.
Always consult your local heating or plumbing inspector,
building department or gas utility company regarding
regulations, codes or ordinances which apply to the in-
stallation of a direct vent furnace.
The sealed combustion system draws combustion air
directly from outdoors into the combustion chamber and
combustion gases are discharged directly to the outdoors
through tubes mounted to the rear of the furnace.
The furnace heat exchanger is built of heavy gauge steel
treated for corrosion resistance.
The furnace cabinet is also constructed of heavy gauge
steel and has an enamel paint finish.
The furnace controls are located behind an access door
on the lower front of the furnace. All models are equipped
with American Gas Association and Canadian Gas
Association listed gas valves and pilots.
MODELS 1403611, 1403612, 2203611, 2203612, 3003611
and 3003612 are equipped with a built-in thermostat.
MODELS 1403621, 1403622, 2203621, 2203622, 3003621
and 3003622 are equipped with a wall thermostat.
Optional Accessories
MODELS: 1403611; 1403612; 1403621; 1403622
For walls greater than 9 inches thick and up to 24 inches
thick, use one of the following Vent Extension Kits:
KIT NUMBER WALL THICKNESS
9304 9 inches to 15 inches
9303 15 inches to 24 inches
MODELS: 2203611; 2203612; 2203621; 2203622
3003611 ; 3003612; 3003621 ; 3003622
For walls greater than 9 inches thick and up to 24 inches
thick, use one of the following Vent Extension Kits:
KIT NUMBER WALL THICKNESS
9301 9 inches to 15 inches
9302 15 inches to 24 inches
(220 model series only)
9303 15 inches to 24 inches
(140 (or) 300 model series)
ALL MODELS: Decorator Face Panel Colors
Various Face Panel colors may be used on all models. All
are constructed of heavy gauge steel with your choice of
colored enamel paint finish.
MODELS: 1403611 ; 1403612; 1403621; 1403622
4309 (Almond)
4310 (Black)
4311 (Red)
4312 (White)
MODELS: 2203611; 2203612; 2203621; 2203622
3003611; 3003612; 3003621; 3003622
4313 (Almond)
4314 (Black)
4315 (Red)
4316 (White)
MODELS: 2203611; 2203612; 2203621; 2203622
3003611; 3003612; 3003621; 3003622
To increase circulation of warmed air within the heated
space, you may use Blower Accessory Kit 2302, which is
equipped with a two-speed fan and automatic fan switch.
ALL MODELS
For walls less than 41/2inches thick, a thin Wall Collar Kit
9307 may be used to increase wall thickness ifwood strips
are undesirable.
ALL MODELS:
Foradditional vent cap protection, Vent Cap Guard 9308
may be used. This mounts to the outside of the exterior
wall over the vent cap.
NOTE
Accessories are identified on the carton by their manufac-
turing number. (For example: 9301; 9302; 9303.) These
manufacturing numbers are also listed on the furnace
rating plate so you can be sure you have the accessory
that fits your furnace.
--3--
