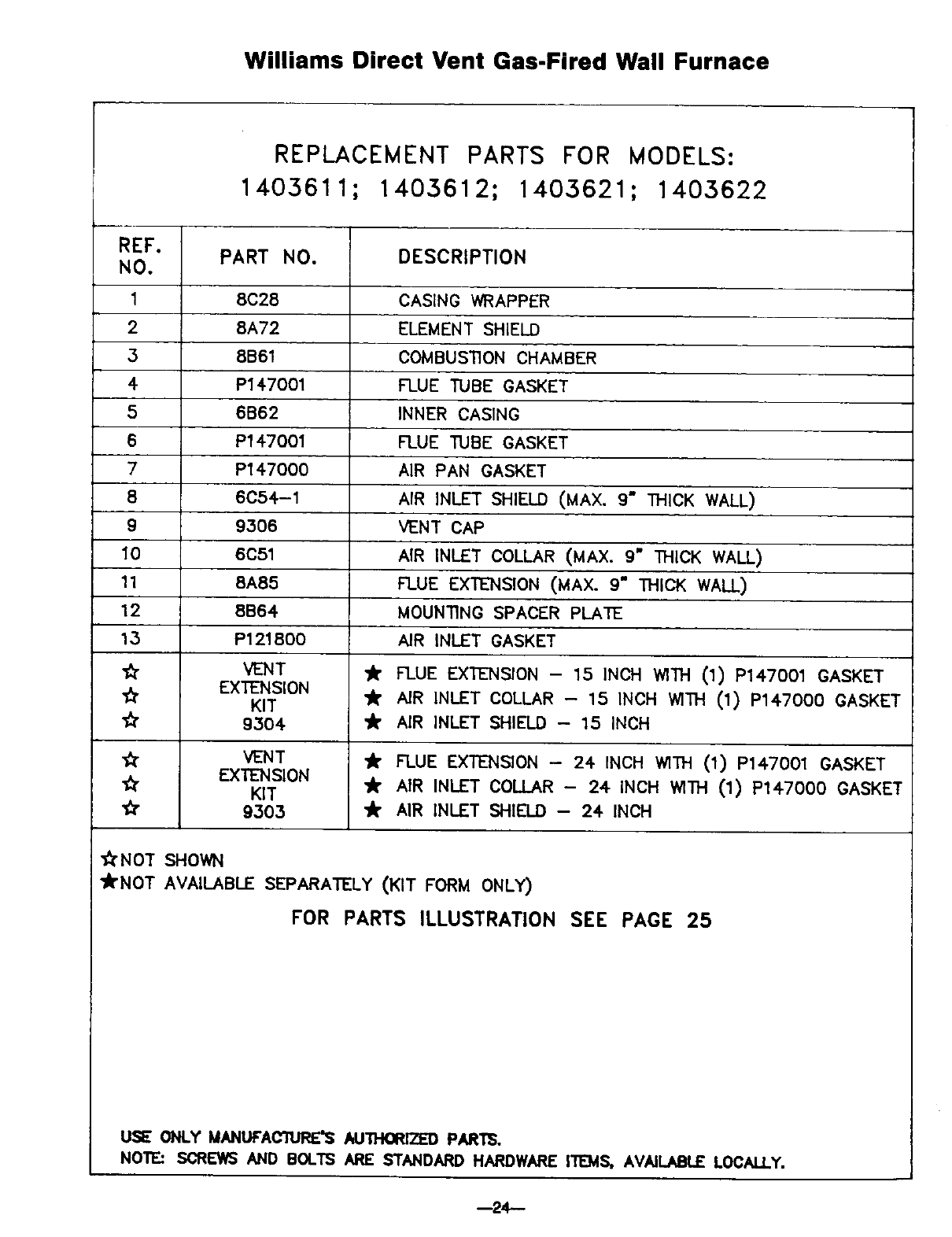

Williams Direct Vent Gas-Fired Wall Furnace
REPLACEMENT PARTS FOR MODELS:
1403611; 1403612; 1403621; 1403622
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
PART NO. DESCRIPTION
8C28 CASING WRAPPER
8A72 ELEMENT SHIELD
8B61 COMBUSTION CHAMBER
P147001 FLUE TUBE GASKET
6B62 INNER CASING
P14-7001 FLUE TUBE GASKET
P147000 AIR PAN GASKET
6054-1 AIR INLET SHIELD MAX. 9" THICK WALL
9306 VENT CAP
6C51 AIR INLET COLLAR (MAX. 9" THICK WALL
8A85 FLUE EXTENSION (MAX. 9" THICK WALL)
BB64 MOUNTING SPACER PLATE
P121800 AIR INLET GASKET
VENT "A" FLUE EXTENSION - 15 INCH WITH (1) P147001 GASKET
EXTENSION
KIT _ AIR INLET COLLAR - 15 INCH WITH (1) P147000 GASKET
9304 'A" AIR INLET SHIELD - 15 INCH
_, VENT _" FLUE EXTENSION - 24 INCH WITH (1) P147001 GASKET
EXTENSION
KIT _tr AIR INLET COLLAR - 24 INCH WITH (1) P147000 GASKET
_t 9303 _ AIR INLET SHIELD - 24 INCH
li_ NOT SHOWN
_NOT AVAILABLE SEPARATELY (KIT FORM ONLY)
FOR PARTS ILLUSTRATION SEE PAGE 25
USE ONLY MANUFACllJRE'S Au'rI-IORrZED PARTS,
NOTE: SCREWS AND BOLTS ARE STANDARD HARDWARE l'ID_S, AVAIl.ABLE LOCALLY.
--24--
