NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
5
Minimum clearance to combustibles are:
Appliance: side and back - 0"
floor - 0"
adjacent wall - 6"
ceiling - 41 ⁵⁄₈” (1210 mm)

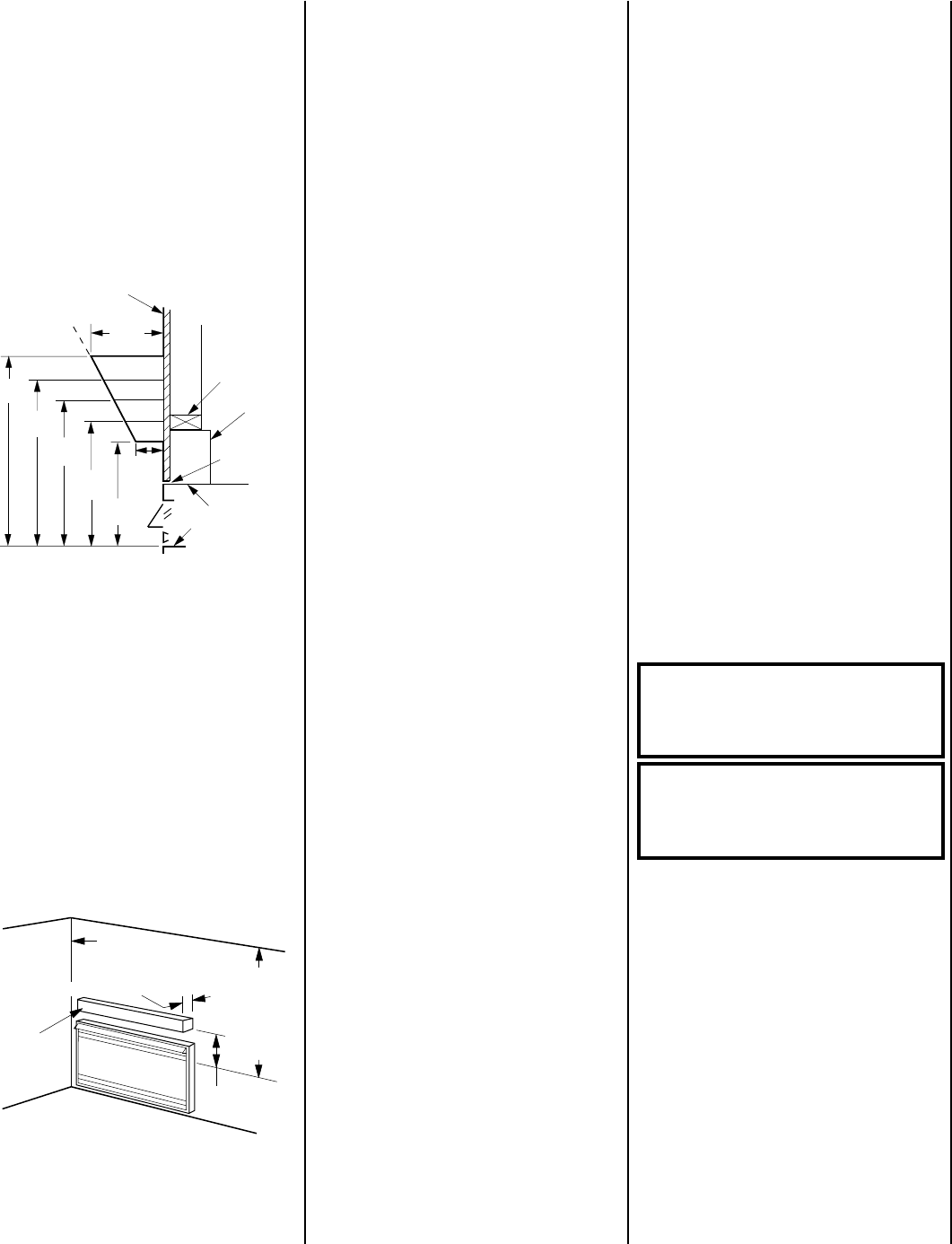

Figure 1
A hearth extension is not required with this
appliance. If a hearth extension is used, do not
block the lower control compartment door. Any
hearth extensions used is for appearance only
and does not have to conform to standard
hearth extension installation requirements.
Note: Combustible wall finish materials and/or
surround materials must not be allowed to
encroach the area defined by the appliance
front face (black sheet metal). Never allow
combustible materials to be positioned in front
of or overlapping the appliance front face.
Figure 2
PREINSTALLATION
Check that all listed parts have been received.
Carefully inspect the heater case and contents
for shipping damage and immediately inform
the dealer from whom you purchased the gas
fireplace if any damage is found.
The appliance is shipped with all gas controls
and components installed and pre-wired. Re-
move the shipping carton, exposing the op-
tional (if installed) front glass door frame.
Loosen and remove the three (3) ¹⁄₄"-20 x 1"
Phillips pan head screws at the three (3) tabs
located along the door frame top edge. Tilt the
glass door frame assembly outward and disen-
gage the three (3) tabs along the bottom of the
door from the three (3) brackets at the bottom
of the firebox opening. Remove the door and
set the panel aside protecting it from inadvert-
ent damage. Retain the three (3) screws for use
on reassembly. Remove the logs, wrapped and
secured inside the firebox, and also set aside.
Check Gas Type
This appliance can only be connected to the gas
type specified on the appliance data plate. This
appliance can not be modified in the field for a
different gas type. If the gas type to be used is
not the one specified contact the dealer to
obtain the correct gas appliance.
Note: Illustrations shown in this manual reflect
“typical” installations with nominal dimensions
and are for design and framing reference only.
Actual installations may vary due to individual
design preferences. However, always maintain
minimum clearances to combustible materials
and do not violate any specific installation re-
quirements.
Note: The following steps represent the normal
sequence of installation. Each installation is
unique, however, and might require a different
sequence.
CAUTION: HEATERS CREATE WARM AIR CUR-
RENTS. THESE CURRENTS MOVE HEAT TO
WALL SURFACES NEXT TO HEATER. INSTALL-
ING HEATER NEXT TO VINYL OR CLOTH WALL
COVERINGS OR OPERATING HEATER WHERE
IMPURITIES IN THE AIR (SUCH AS TOBACCO
SMOKE) EXISTS, MAY DISCOLOR WALLS.
INSTALLATION STEPS
Built-In Systems
WARNING: DO NOT ALLOW FANS TO
BLOW DIRECTLY INTO THE FIREPLACE.
AVOID ANY DRAFTS THAT ALTER
BURNER FLAME PATTERNS.
WARNING: DO NOT USE A BLOWER IN-
SERT, HEAT EXCHANGER INSERT OR
OTHER ACCESSORY NOT APPROVED
FOR USE WITH THIS HEATER.
Do not burn solid fuels in this listed unvented
gas room heater.
Note: Appliance Dimensional Specifications
are shown in Figure 3.
Step 1. Frame the CFST appliance as illus-
trated in
Figures 4 and 5
. Frame the CFPF
appliance as illustrated in
Figures 7 and 8
.
The header may be in direct contact with the
top metal spacers, but must not rest on them
or be notched to fit around them. All construc-
tion above the appliance must be self support-
ing. DO NOT use the appliance for structural
support of weights in excess of 250 lbs.
41 ⁵⁄₈"
(1210 mm)
Min. to
Ceiling from
Top of
Appliance
Door
(See Fig. 1)
3" Clearance
to Combustible
Side Wall
Combustible
Mantel
Max. Projection (See Fig. 1)
ASSEMBLY STEPS
The typical sequence of installation follows,
however, each installation is unique resulting in
variations to those described.
1. Construct the appliance framing.
2. Route gas supply line to appliance location.
3. Install nailing flanges. Install the hoods.
4. Position the appliance within the framing and
secure with nailing brackets.
5. Make connection to gas supply.
6. Wiring.
7. Install the operating control switch and bring
in electrical service line for forced air circulat-
ing blower (optional equipment).
8. Mount forced air kit (optional equipment).
9. Install the logs and Rockwool.
10. Checkout appliance operation.
11. Install glass door frame assembly.
Combustible
Finished Wall
Materials
Top of Appliance
CF Series
12"
( mm)
2 ¹⁄₂"
( mm)
8"
( mm)
26"
( mm)
Top of Door Frame
Spacer
6''
8''
10''
22 ¹⁄₂"
( mm)
18 ⁵⁄₈"
( mm)
14 ¹⁄₂"
( mm)
Header
¹⁄₄" Gap
Required
Combustible mantles may be installed above
the appliance (as shown in
Figure 1
). The
mantle projection may be extended beyond 12"
if the height above the firebox opening is in-
creased proportionately as detailed by the in-
crements shown.
