REPAIR PARTS
Table 11.3a: Manifold/Gas Train (MI – Intermittent Ignition)
Table 11.3b: Manifold/Gas Train (MIH – Intermittent Ignition)

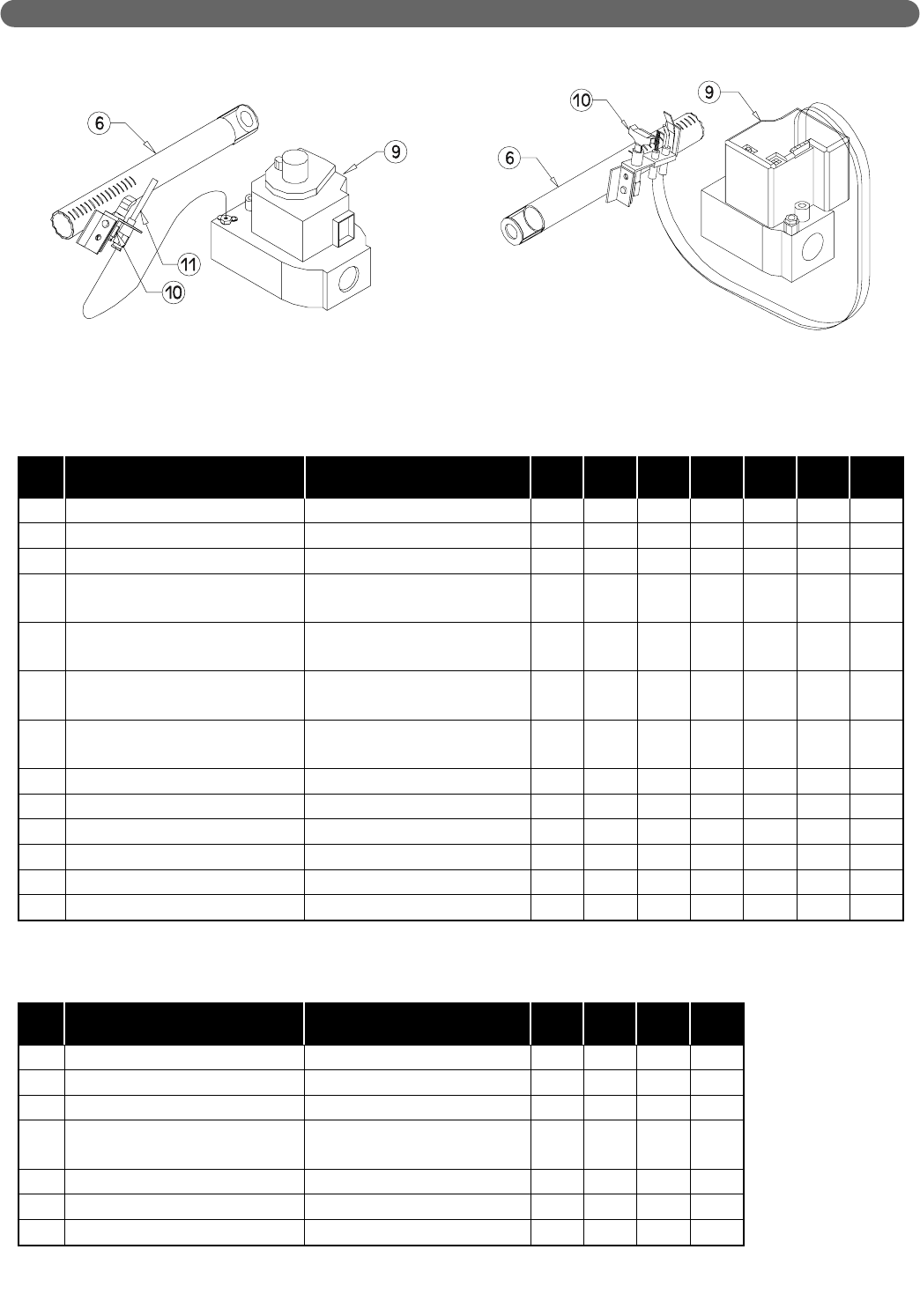

Figure 11.3b: Gas Valve and Pilot – Intermittent
Ignition
Item
No.
Description
Part Selection
Information
MI-03 MI-04 MI-05 MI-06 MI-07 MI-08 MI-09
5 Steel Burner Specify quantity 51537 51537 51537 51537 51537 51537 51537
6 Steel Burner w/ Pilot Clip 1 per boiler 51539 51539 51539 51539 51539 51539 51539
7 Gas Manifold 50978 50979 50980 50981 50954 50955 50956
8 Orifice Spud, #48
Natural Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)*
50894 50894 50894 50894
Orifice Spud, #49
Natural Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)*
50895 50895 50895
Orifice Spud, #56
LP Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)
50899 50899 50899
Orifice Spud, #57
LP Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)
50900 50900 50900
9 Honeywell SV9501M2700 Gas Valve Natural Gas 51682 51682 51682
Honeywell SV9501M2064 Gas Valve LP Gas 51691 51691 51691
Honeywell SV9601M4167 Gas Valve Natural Gas 51683 51683 51683 51683
Honeywell SV9601M4225 Gas Valve LP Gas 51692 51692 51692 51692
10 Honeywell Q3480B1025 Pilot Natural Gas 51684 51684 51684 51684 51684 51684 51684
Honeywell Q3480B1033 Pilot LP Gas 51685 51685 51685 51685 51685 51685 51685
Item
No.
Description
Part Selection
Information
MI-03 MI-04 MI-05 MI-06
5 Steel Burner Specify quantity 51537 51537 51537 51537
6 Steel Burner w/ Pilot Clip 1 per boiler 51539 51539 51539 51539
7 Gas Manifold 50978 50979 50980 50981
8 Orifice Spud, #49
Natural Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)*
50895 50895 50895 50895
9 Honeywell SV9501M2700 Gas Valve Natural Gas 51682 51682 51682
Honeywell SV9601M4167 Gas Valve Natural Gas 51683
10 Honeywell Q3480B1025 Pilot Natural Gas 51684 51684 51684 51684
Figure 11.3a: Gas Valve and Pilot – Standing Pilot
(Continuous Ignition)
