PB Heat MI Boiler User Manual



REPAIR PARTS
36
Table 11.2: Manifold/Gas Train (MI – Standing Pilot)
*For elevations over 2,000 feet above sea level contact PB Heat, LLC.
Item
No.
Description
Part Selection
Information
MI-03 MI-04 MI-05 MI-06 MI-07 MI-08 MI-09
5 Steel Burner Specify quantity 51537 51537 51537 51537 51537 51537 51537
6 Steel Burner w/ Pilot Clip 1 per boiler 51263 51263 51263 51263 51263 51263 51263
7 Gas Manifold 50978 50979 50980 50981 50954 50955 50956
8 Orifice Spud, #48
Natural Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)*
50894 50894 50894 50894
Orifice Spud, #49
Natural Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)*
50895 50895 50895
Orifice Spud, #56
LP Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)
50899 50899 50899 50899
Orifice Spud, #57
LP Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)
50900 50900 50900
9 Honeywell VR8200A2116 Gas Valve Natural Gas 50581 50581 50581
Honeywell VR8200C6040 Gas Valve LP Gas 50221 50221 50221
Honeywell VR8300A4003 Gas Valve Natural Gas 50587 50587 50587 50587
Honeywell VR8300C4035 Gas Valve LP Gas 91333 91333 91333 91333
10 Honeywell Q314A3505 Pilot Natural Gas 51688 51688 51688 51688 51688 51688 51688
Honeywell Q314A3703 Pilot LP Gas 50555 50555 50555 50555 50555 50555 50555
11 Johnson K16BA-24D Thermocouple 51318 51318 51318 51318 51318 51318 51318

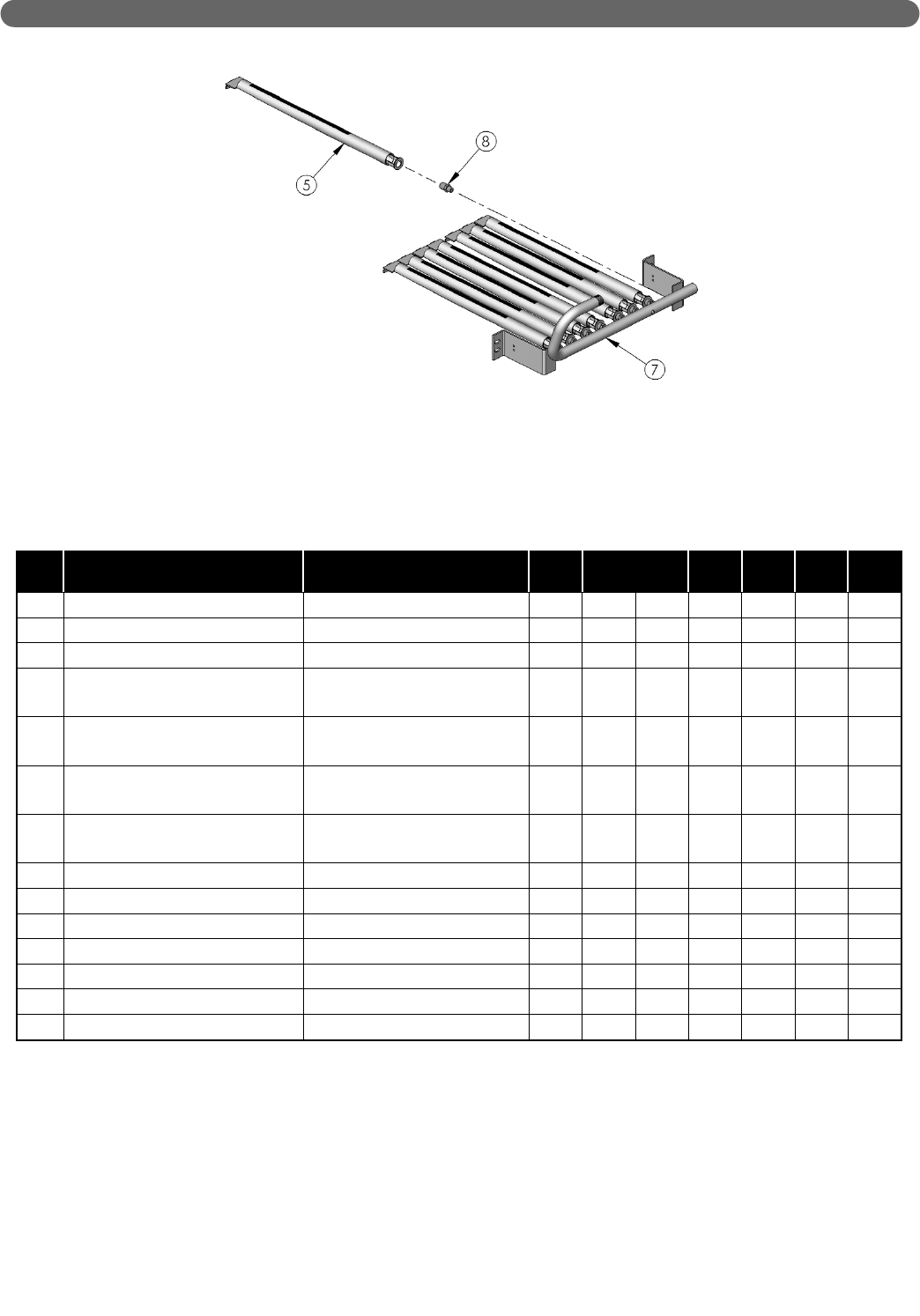

Figure 11.2:Manifold
