Equipment − Page 1 of 1
This feature allows the installer to edit details of devices in the system
without having to re−run the setup program. The following appears after
the equipment tab has been selected
press start button below to edit details of devices in
the system
start
Press start; the Equipment details edit" screen (figure 22) will open.
You may view information about or modify communicating devices as
described earlier in the setup pages, beginning on page 10.
setup tests equipment HELP
HP
XP19−060−230−
06
5809K00015
AIR HANDLER
CBX32MV−60
5809K00020
THERMOSTAT
49W95
A109K00139
SYSTEM
about
next step
back
to adjust a device, highlight
it, then press edit
system devices
edit
reset ALL

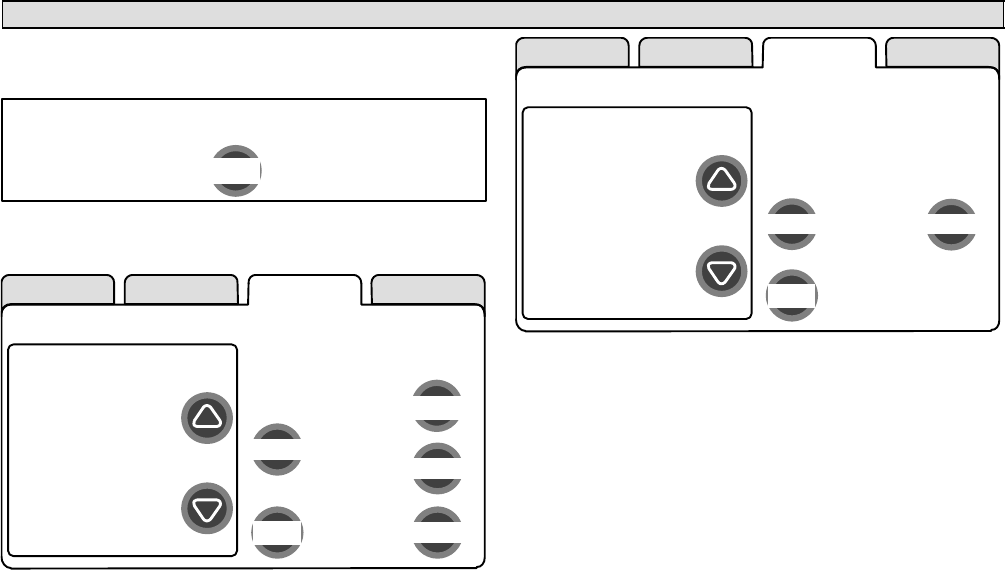

Figure 22. Equipment details edit
setup tests equipment HELP
Equipment
Name
Filter 1 Timer
Selection
Filter 2 Timer
Selection
UV Bulb Timer
Selection
Humidifier Pad
Timer Selection
back
(to adjust a setting, highlight
it, then press edit)
Current Value:
(System)
SYSTEM
edit
reset
Figure 23. Equipment details edit
Table on Page 25 shows a list of Editable Parameters for the currently
available devices designed to communicate in this system. Other de-
vices and additional parameters may be added at a later date. Check the
unit installation manuals (i.e. furnace, air handler, heat pump, ac unit) for
current information and default parameters.
