TABLE OF CONTENTS
Safety Rules .......................................Page 2
Introduction .......................................Page 3
Parts Required ..................................Page 3
Optional Equipment ............................Page 3
EPA Qualified .....................................Page 3
Operating The Fireplace .....................Page 4
Fuel ....................................................Page 4
First Fires ...........................................Page 4
Building a Fire ....................................Page 4
Outside Air Register ..........................Page 5
Refueling ............................................Page 5
Closing the Doors ..............................Page 5
Smoking – Causes And
Troubleshooting ..............................Page 5
Important Cautions ............................Page 5
Maintaining Your Fireplace .................Page 6
Creosote .............................................Page 6
Chimney Maintenance ........................Page 6
Dealing With A Chimney Fire ..............Page 6
Top Baffle Removal ............................Page 6
Door Frame Care ................................Page 6
Disposing of Ashes ............................Page 6
Refractory Replacement .....................Page 7
Door Adjustment ................................Page 7
How to use the retractable doors
and firescreens ...............................Page 7
Glass Care - Replacement ..................Page 8
Glass Care - Cleaning .........................Page 8
Gasket Replacement .........................Page 8
Fireplace Installation .........................Page 8
Locating the Fireplace .......................Page 8
Preinstallation ...................................Page 9
Precautions ........................................Page 9
Adjacent Wall .....................................Page 9
Enclosure / Chase ..............................Page 9
Mantel ...............................................Page 10
Hearth Extension Requirements ........Page 10
Cold Climate Installations ..................Page 10
Fireplace and Framing Dimensions ....Page 11
Insulated Chase Construction ...........Page 12
Fireplace Facing .................................Page 12
Outside Air Assembly ........................Page 13
UZY5 Blower Kit .................................Page 14
Forced Air Heating Kit .......................Page 14
Chimney System ................................Page 15
Chimney Installation Instructions ......Page 16
Offset Chimney Installation ................Page 17
Angled Wall Radiation Shield .............Page 19
Universal Roof Support ......................Page 20
Chimney Chase And
Multiple Terminations......................Page 20
Chimney Adaptor ...............................Page 20
Installation Accessories .....................Page 21
Chimney Components Lists ...............Page 22
Specifications .....................................Page 23
Clearances .........................................Page 23
Replacement Parts .............................Page 24
Product Reference Information ..........Page 26
CONGRATULATIONS!
When you purchased your new fireplace, you joined the ranks of thousands of individuals
whose answer to their home heating needs reflects their concern for aesthetics, efficiency
and our environment. We extend our continued support to help you achieve the maximum
benefit and enjoyment available from your new fireplace.
Thank you for selecting a Lennox Hearth Products fireplace as the answer to your home
supplemental heating needs.
THE FIREPLACE
INTRODUCTION
The Solana, EPA Low-Mass Wood-burning Fire-
place Program qualified, is an energy efficient,
heat circulating fireplace. You will receive a
lifetime of comfort and enjoyment from your
fireplace provided it is installed, maintained and
operated properly.
• Please read these instructions and retain
this manual for future reference.
• Before beginning the fireplace installation,
consult the local authorities to obtain your
building permit and check your local building
codes. Install the fireplace only as described
in these instructions and using only Lennox
Hearth Products components.
• The Solana fireplace is NOT intended for use
with an unvented gas log set. Do not use
a fireplace insert or any other product with
this fireplace unless it is specified by Lennox
for use with this appliance. Failure to follow
these instructions will void the certification
and the warranty of the fireplace and may
result in an unsafe installation.
• These appliances are NOT approved for
Manufactured Home installations.
PARTS REQUIRED
Fireplace Model Solana
• 8" diameter chimney - Model Secure Temp™
ASHT 1", Secure Temp S-2100+ or AC manufac-
tured by Security Chimneys International only,
including:
- Chimney lengths
- Elbows (where necessary)
- Associated components as per these
Installation Instructions
• Door (included)
• Outside Air Kit (included)
OPTIONAL EQUIPMENT
•
Additional Equipment (optional)
- Trim Kit available in Nickel
- UZY5 blower
- VRUW Blower motor speed control
- Forced Air Heating Kit
u
u
If installed, this appliance no longer qualifies
for EPA Low Mass Wood-burning Fireplace
Program.
EPA WOOD-BURNING FIREPLACE
PROGRAM QUALIFIED
This appliance has met the U.S. Environmental
Protection Agency (EPA) Low Mass Wood-
burning Fireplace Program Phase 2 emission
level (g/kg), as per test protocol ASTM 2558
"standard test method for determining particu-
late matter emissions from fires in low mass
wood-burning fireplaces".

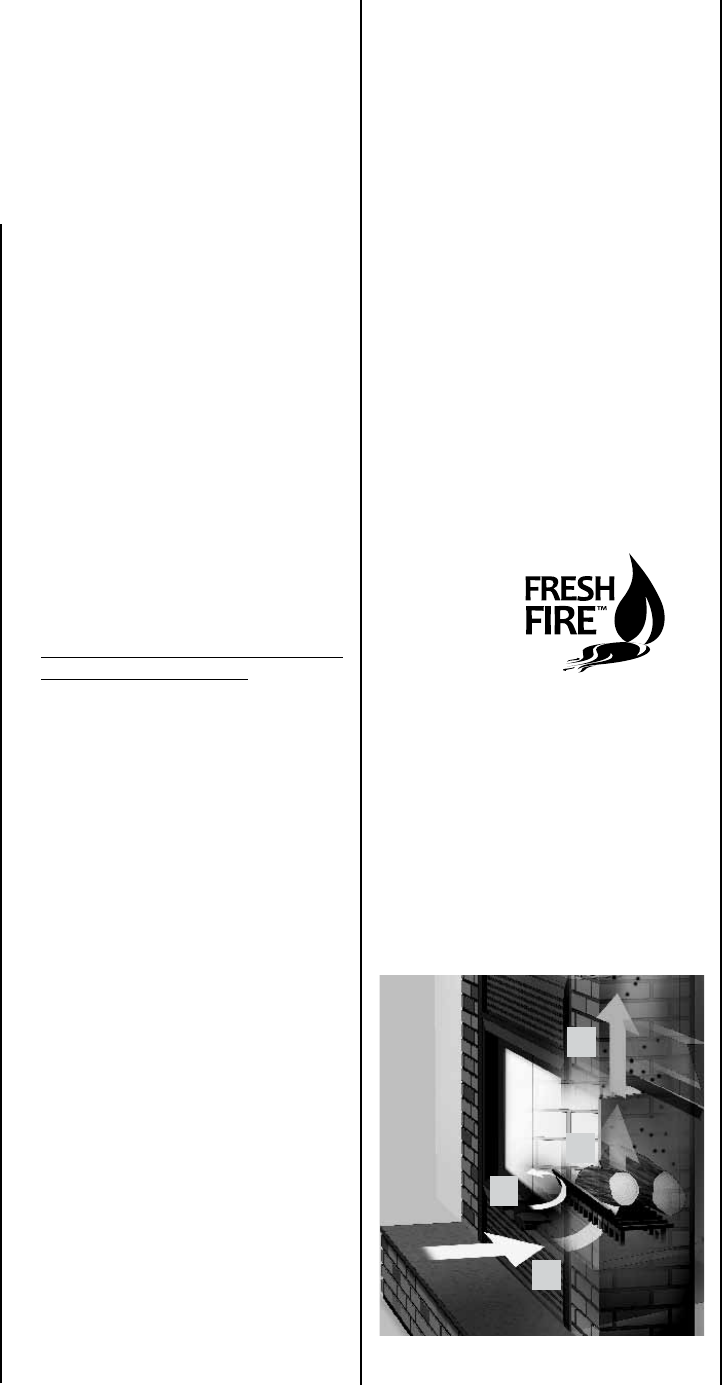

Fresh Fire
TM
Burn System
1- Air is diverted under the front of the grate,
gaining heat from the ember and ash material
for more efficient combustion.
2- Cool air is deflected to prevent cooling
of the fire, so that high temperatures are
maintained.
3- Efficient combustion leads to lower emis-
sions, because the higher temperatures burn
up more volatile gasses and particulates.
4- Exhaust air is effectively pulled into the
chimney, and heat from the fire is circulated
into the living space.
1
2
3
4
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
