SKU 65322 or 65323 For technical questions, please call 1-800-444-3353. Page 26

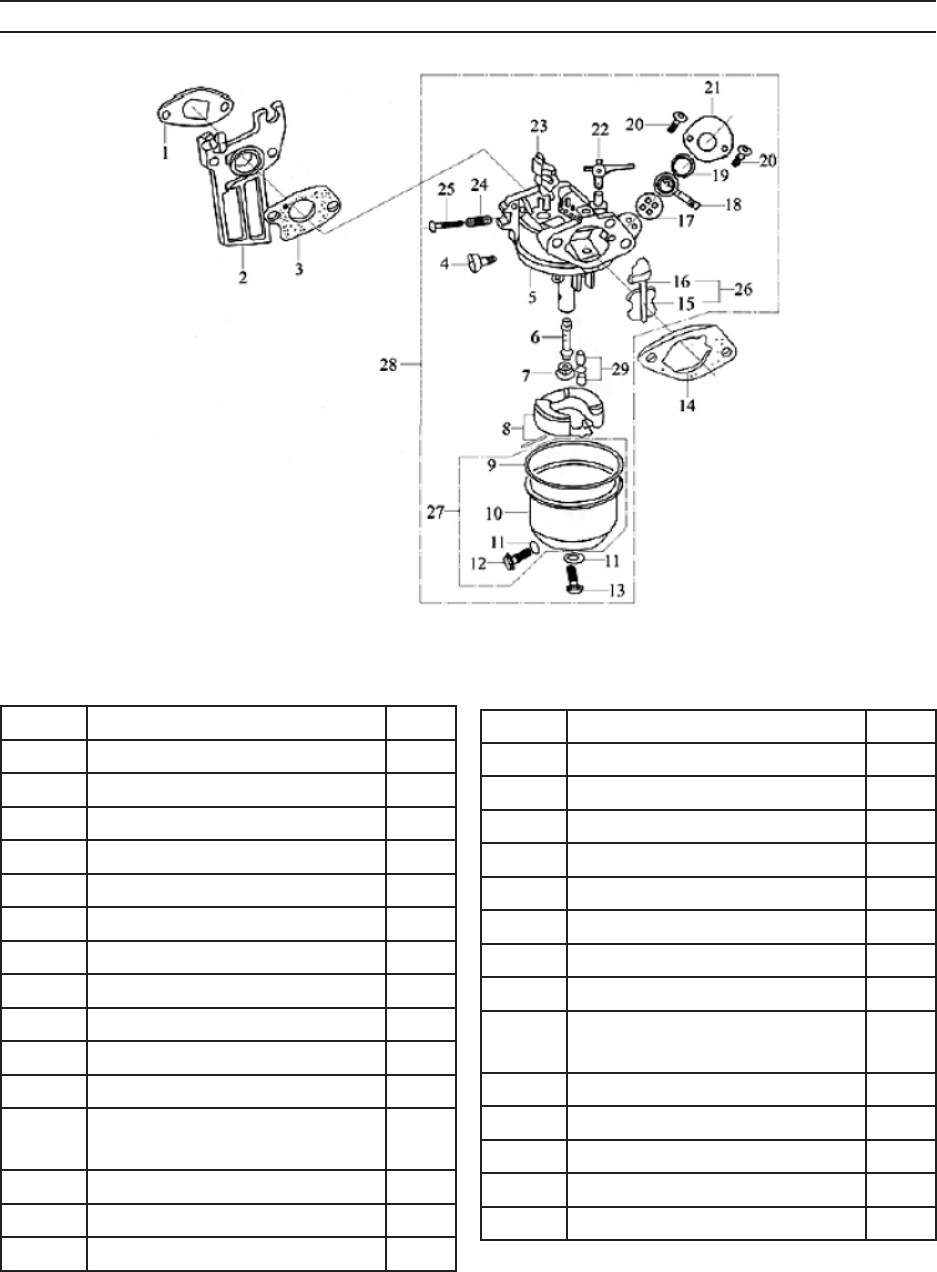

CARBURETOR ASSEMBLY DIAGRAM
Note: When ordering parts from this list, specify: Parts List F, CARBURETOR ASSEM-
BLY, and the Item Number from the table below.
Part # Description QTY
1f Inlet Gasket 1
2f Connecting Block 1
3f Carburetor Gasket 1
4f Idle Adjustment Screw 1
5f Mixture Chamber Bode 1
6f Main Nozzle 1
7f Main Jet 1
8f Float 1
9f Float Chamber Gasket 1
10f Float Chamber 1
11f Washer 2
12f Float Chamber Drain
Screw
1
13f Screw 1
14f Air Cleaner Gasket 1
15f Choke 1
Part # Description QTY
16f Choke Stem 1
17f Air Seal Washer 1
18f Throttle Lever 1
19f Washer 1
20f Screw m4 2
21f Cover 1
22f Choke Switch 1
23f Throttle Unit 1
24f Mixture Adjustment Screw
Spring
1
25f Mixture Adjustment Screw 1
26f Choke Unit 1
27f Float Chamber 1
28f Carburetor Assembly 1
29f Float Needle 1
