INSTALLATION INSTRUCTIONS
10
System Model 39726.501 & 39726.506*
Nominal BTU Capacity 26,000
Volts/Phase/Hertz (each circuit) 115 AC / 1 / 60
Run Amps Comp (Circuit 1 =10.0) (Circuit 2 = 9.8)
LRA Compressor (Circuit 1 = 59.0) (Circuit 2 = 59.0)
Total Blwr/Fan Motor Run Amps 8.5 (Circuit 1)
Total Blwr/Fan Motor LRA Amps 18.0 (Circuit 1)
Duct Static - Min. ( In. Water Column) 0.40
Duct Static - Max. ( In. Water Column) 1.20
Generator Size Per/Unit - Min. *** 7.5K
Wire Size (Up to 24 ft.)** (Circuit 1) No. 10 AWG Copper Conductors)
(Suggested) (Circuit 2) No. 12 AWG Copper Conductors)
Circuit Protection (Circuit 1) 25Amp
Time Delay Fuse or (Circuit 2) 15Amp
HACR Circuit Breaker
Control Voltage 12V DC
Refrigerant R-22
System Refrigerant Charge (Circuit 1 = 46.5) (Circuit 2 = 38.5)
Size (In Inches) Width Height Depth
46 18 22
Installed 205 Pounds
Weight
2.7 SPECIFICATIONS - HEAT PUMP
**
Models ending with .506 suffix and manufactured with "SIDE AIR DISCHARGE".
For wire lengths over 24 ft. consult the National Electric Code for proper sizing.
The Manufacturer gives only general guidelines for generator requirements. These generator
requirements come from experiences consumers have with our equipment in field applications.
When sizing the generator, the total electrical power must be taken into consideration. Keep in
mind that generators lose power because of altitude increases above sea level , high outdoor
temperatures and lack of maintenance.
*
***

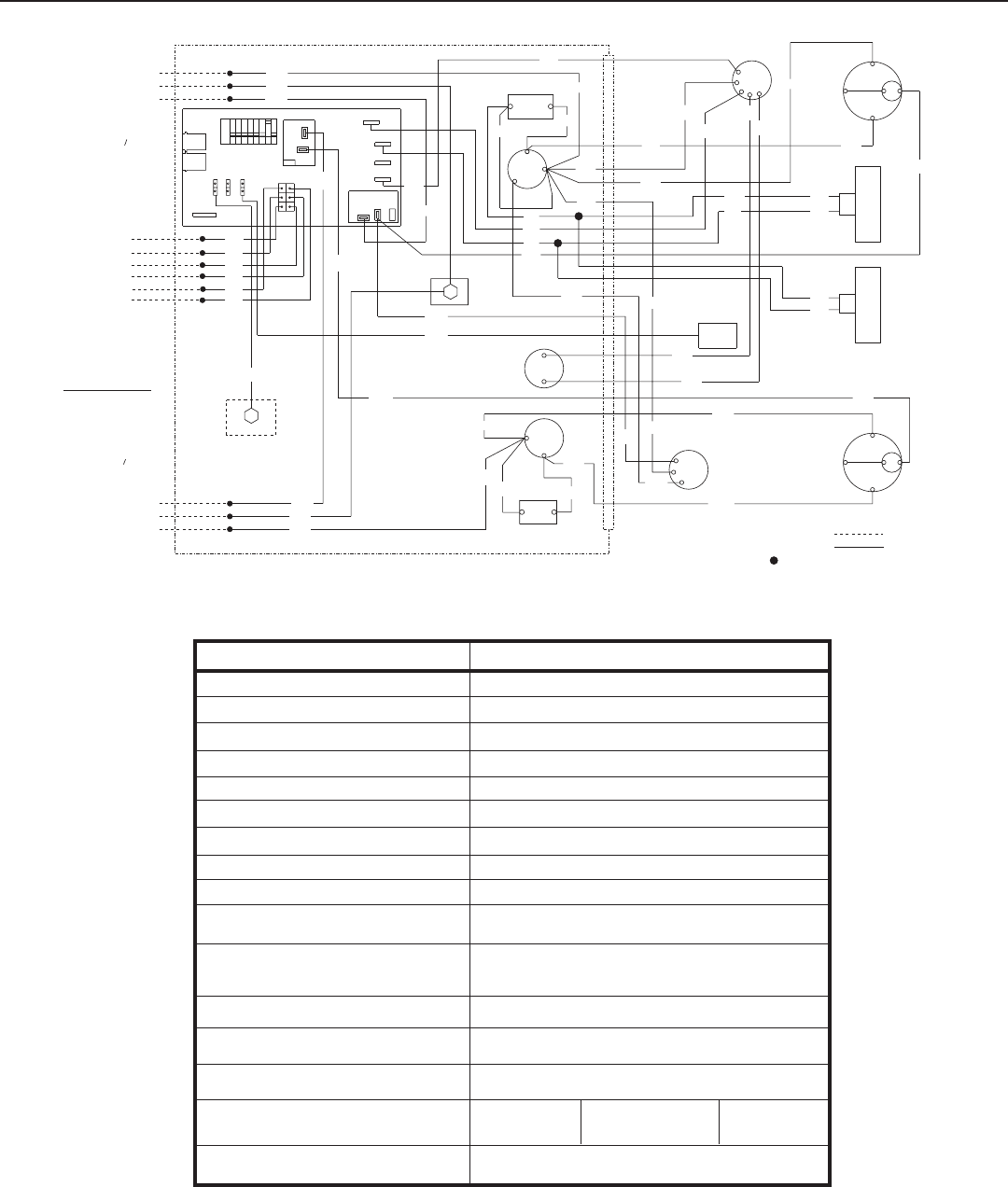

2.6 WIRING DIAGRAM 39726.501 & 39726.506
VIO
BLK
VIO
BLK
RUN
CAP
CAP
START
COMP
STARTER
STARTER
CAP
START
COMP
HERM
C
USE COPPER CONDUCTORS
USE COPPER CONDUCTORS
WHT
G-Y
BLK
ONLY
115 VAC 60 Hz 1O
115VAC60 Hz 1O
CIR.#2
GRY
G-Y
ORN
BLKHD
GRY
WHT
GRY
ON
3 AMPFUSE
NATIONAL ELECTRIC CODE
NATIONAL ELECTRIC CODE
F1
USE COPPER CONDUCTORS
USE COPPER CONDUCTORS
BLK
ONLY
COMPLY WITH THE
COMPLY WITH THE
FIELD WIRING MUST
FIELD WIRING MUST
115 VAC 60 Hz 1O
115VAC60 Hz 1O
CIR.#1
P3
SENSOR
AMB.
P2
P1
G-Y
WHT
NC
NO
ORN
WHT
BOX
ELEC.
YEL
YEL
BLU
BLU
RED
BLK
P6
ORN
COM
WHT
BLK
MOTOR
CAP
BLK
ELEC.
BLKHD
BOX
BLK
NC
NO
FREEZE
CONTROL
P5P4
6
DIP SWITCHES
2
1
5
4
3
K1
8
7
COM
ORN
T3
K6
T2
BOARD
CIRCUIT
T4
G-Y
G-Y
WHT
RED
T1
FAN
WHT
COND. BLOWER
COND. BLOWER
MOTOR
RED
BRN
CAP
RUN
HERM
BRN
WHT
BLK
= WIRE NUT
= WIRE NUT
FACTORY WIRING
FIELD WIRING
FIELD WIRING
BRN
COMPRESSOR
3108345.095
3108345.095
S
C
R
OL
COMPRESSOR
WHT
BRN
BRN
BRN
WHT
BLK
GRY
EVAP. COIL
EVAP. COIL
VIO
BLK
BLK
WHT
C
WHT
RED
WHT
RED
RED
WHT
BRN
VIO
BLK
BRN
BLK
MOTOR
EVAP. BLOWER
EVAP. BLOWER
WHT
WHT
ORN
ASM
VALVE
REV.
REV.
ASM
OL
C
BLK
VALVE
REV.
RED
S
R
DIELECTRIC
PASSED
