Resolute Acclaim Woodburning Stove
2000893
RESOLUTE
Acclaim
25"
(648 mm)
27"
(699 mm)
26"
(660 mm)
6"
(152 mm)
23"
(584 mm)
19"
(495 mm)
12
"
(324 mm)
25"
(635 mm)
21
"
(546 mm)
25"
(635 mm)
19"
(483 mm)
0893
Resolute Acclaim
specifications
1/01
21"
(546 mm)
(Reg. Legs)
19
"
(495 mm)
(Short Legs)
Range of heat output ................9,500-33,900 BTU/hr.*
EPA Emissions Rating .....................................3.4g/hr*
Maximum heat output ....................... 40,000 BTU/hr.**
Area heated*** ................Up to 1600 sq. ft. (148 sq m)
Fuel size/type ......................16” (410 mm) wood splits
Fuel capacity ......................................30 lbs. (13.6 kg)
Loading ......................................................Front or top
Chimney connector ...................6” (152 mm) diameter
Chimney flue size .... Min. 6” (152 mm) or 8” (203 mm)
Flue exit position ......................Reversible, top or rear
Primary air ........................................................Manual
Secondary air ....................................................Preset
Ash handling system ................... Removable ash pan
Glass panel ........................High-temperature ceramic
Weight ...............................................425 lbs. (192 kg)
Width (leg-to-leg) ...................................26” (660 mm)
Depth (leg-to-leg) .................................19” (480 mm)
Height to top of flue collar:
w/Regular legs ................27¹⁄₂" (699 mm) top exit
..........................................25" (635 mm) rear exit
w/Short legs ....................25¹⁄₂" (648 mm) top exit
..........................................23" (584 mm) rear exit
Specifications
Resolute Acclaim Model 2490
*Under specific conditions used during EPA emissions
testing.
**This value can vary depending on how the unit is
operated, and the type and moisture content of the fuel
used. Figure shown is based on maximum fuel con-
sumption obtained under laboratory conditions and on
average efficiencies.
***These values are based on operation in building
code-conforming homes under typical winter climate
conditions in New England. If your home is of non-
standard construction (e.g., unusually well-insulated,
not insulated, built underground, etc.) or if you live in a
more severe or more temperate climate, these figures
may not apply. Since so many variables affect per-
formance, consult your Vermont Castings' Authorized
Dealer to determine realistic expectations for your
home.

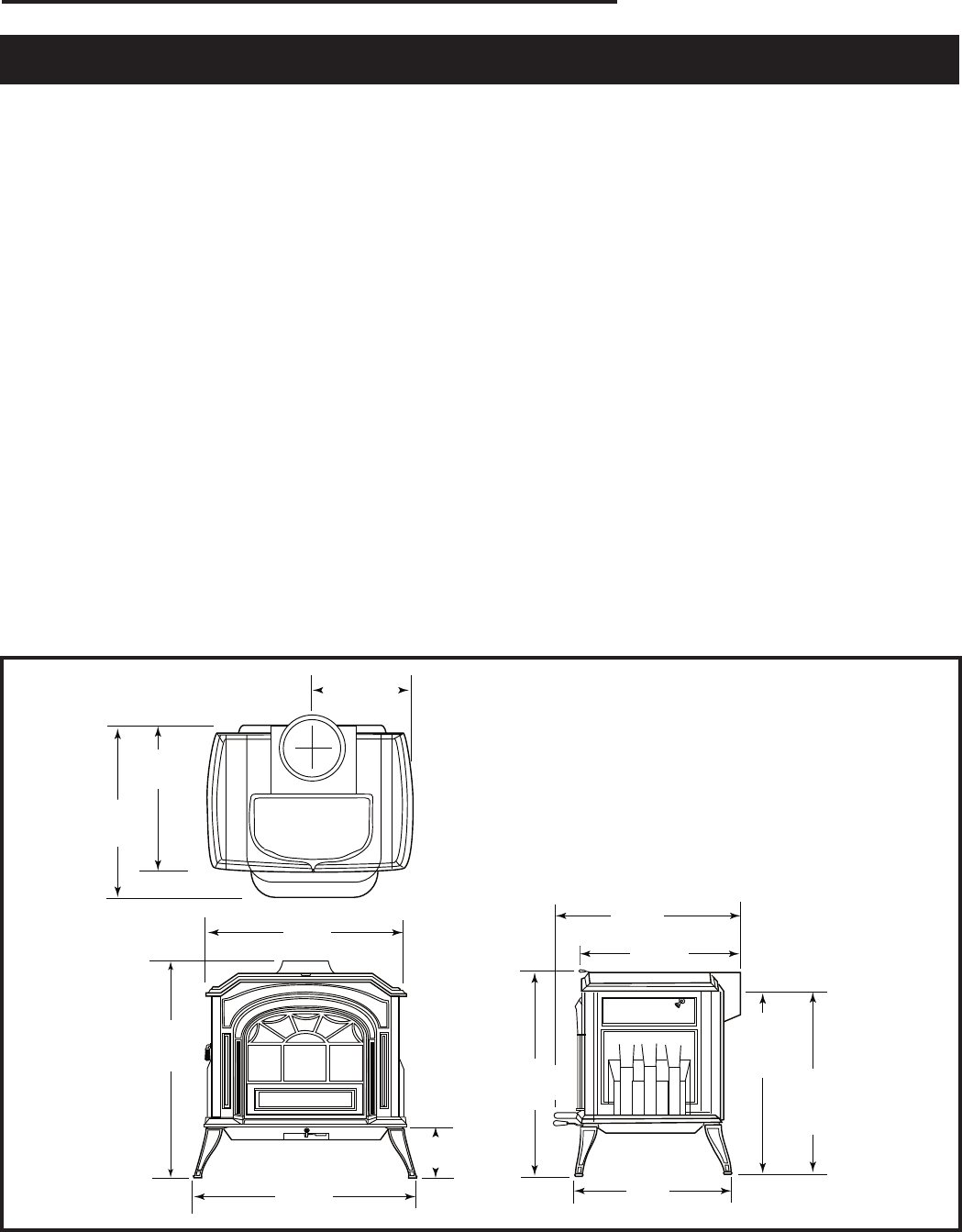

Fig. 1 Resolute Acclaim dimensions.
DRAWINGS NOT TO SCALE
