Burnham ALP210 Boiler User Manual



92

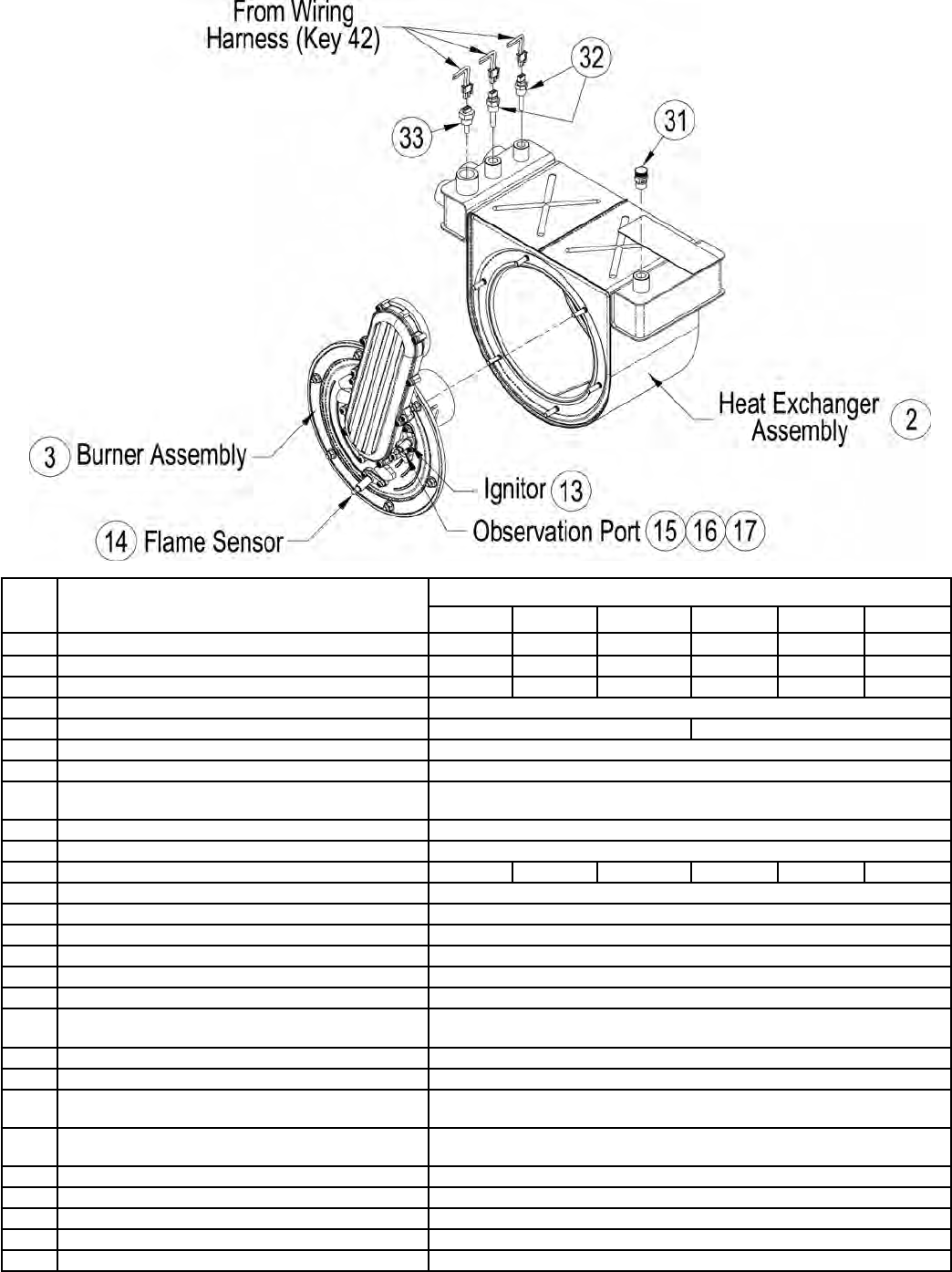

Key
No.
Description
(Quantity) Part Number
ALP080 ALP105 ALP150 ALP210 ALP285 ALP399
1 Heat Exchanger, Burner, Etc. (Key No’s 2 thru 23) 101520-01 101521-01 101522-01 101523-01 101524-01 101525-01
2 Heat Exchanger Assembly 101710-01 101711-01 101712-01 101713-01 101714-01 101715-01
3 Burner Assembly 101717-01 101718-01 101719-01 101720-01 101721-01 101722-01
4 M6x1 Hex Flange Nut (Not Shown) (6) 101724-01
5 Gas/Air Intake Duct Assembly (Not Shown) 101725-01 101725-02
6 Gas/Air Intake Duct Weldment (Not Shown) N/A
7 Burner Plate (Not Shown) 101727-01
8
Burner Plate Insulation
(Warning: Contains RCF, Not Shown)
101728-01
9 Burner Plate Inner Seal (Not Shown) 101729-01
10 Burner Plate Outer Seal (Not Shown) 101730-01
11 Burner Head (Not Shown) 101731-01 101731-02 101731-03 101731-04 101731-05 101731-06
12 Burner Head Seal (Not Shown) 101732-01
13 Ignitor 101733-01
14 Flame Sensor 101734-01
15 Observation Glass Retaining Plate 101735-01
16 Observation Glass 101736-01
17 Observation Glass Gasket 101737-01
18
M3x6 mm Socket Hd Thread Forming Screw,
T10 Drive (Not Shown)
(2) 101738-01
19 Ignitor Gasket (Not Shown) 101740-01
20 Flame Sensor Gasket (Not Shown) 101741-01
21
M4x8 mm Socket Hd Cap Thread Forming Screw,
X20 Drive (Not Shown)
(4) 101739-01
22
M5x14 mm Pan Hd Thread Forming Screw, T25 Drive
(Not Shown)
101742-01
23 Insulation Disc (Warning: Contains RCF, Not Shown) 101996-01
31 Air Vent Valve 101586-01
32 Water Temp Sensor (2) 101685-01
33 High Limit 101653-01
42 Wire Harness (Not Shown) 101454-01
