F220 Series Detectors with F220-B6/C/E/R Bases General Information | en 5
Bosch Security Systems, Inc. Installation Manual 4998138694 -04 | 2007.01

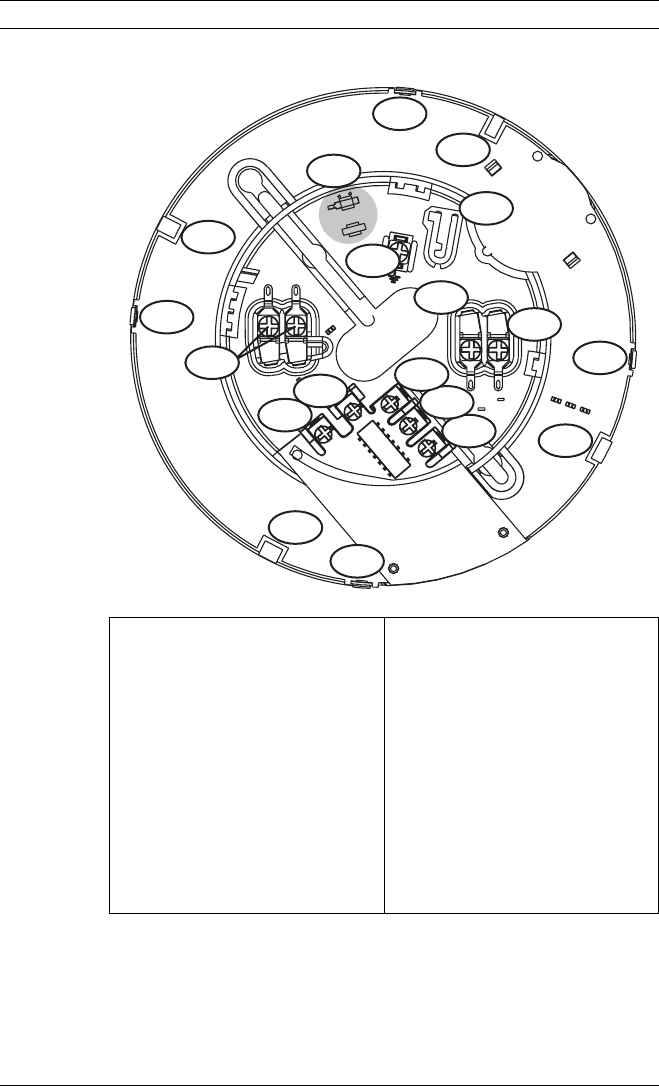

2.1.3 Base Features
5
1
2
4
6
7
9
8
10
12
11
12
12
12
3
11
11
11
13
1. Terminal 1
2. Terminal 2
3. Terminal 3
4. Terminal 4
5. Terminal 5
6. Resettable Auxiliary Power
Positive (+) In and Out
Terminals (b1 and b2)
7. Resettable Auxiliary Power
Negative (-) In and Out
Terminal (a1/a2)
8. Remote Terminal (c)
9. Tamper Tab (Locking Bar)
10. Tamper Tab (Locking Bar
Mount)
11. Alignment Key (4 places)
12. Snap Lock (4 places)
13. Earth Shield Terminal
(optional)
Fig. 2.1 Base Features
