GAS DETECTION

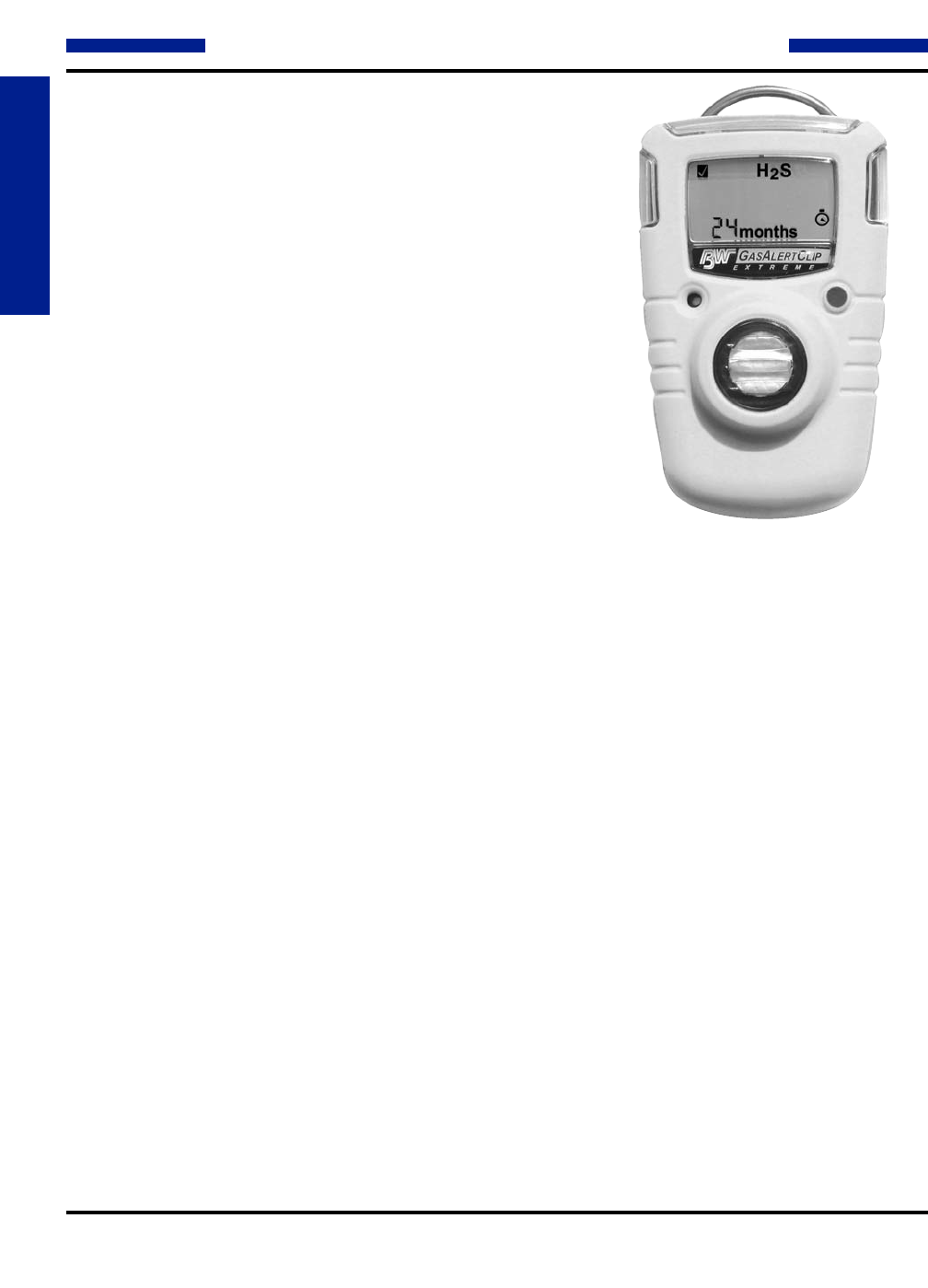

BW TECHNOLOGIES GAS/ALERT/CLIP EXTREME
GAS DETECTORS
2-Year Gas Detection with Event Logging
Simply press the START/TEST button and the GasAlertClip
Extreme is ready to use, providing two years of continuous, main-
tenance-free operation from the day of activation.
The GasAlertClip Extreme is highly water resistant, with a IP-66/67
housing fully immersible to a depth of one meter. The GasAlertClip
Extreme housing includes a integral concussion-proof boot, and a
heavy-duty, stainless steel, alligator style belt-clip. A large easy-to
read LCD shows detector life remaining, alarm setpoints, and peak
alarm exposures.
The detector’s life remaining is displayed in months, days, then
hours. A full-function self-test verifies sensor, circuitry and battery
integrity as well as function of the audible, visual and vibrator
alarms.
Stored data can be transmitted directly by IR link to a cordless
infrared printer for immediate printout, or to a personal computer
by means of a IR adapter connected to the computer’s USB port.
The GasAlertClip Extreme is equipped with two alarm setpoints
used to activate a high output 95 dB (typical) audible alarm, a
bright, wide-angled quad LED visual alarm and a built-in vibrator
alarm.
• Internal vibrator alarm
• Small size (1.1 x 2.0 x 3.2 in.) and lightweight (2.7 oz.)
• Maintenance free—no sensor or battery replacement,
no calibration, no downtime
• Full-function self-test of audible/visual alarms, plus
integrity of sensor, battery and circuitry
• Continuously ON—one-button activation, test and data
transmission
• Comes complete with rugged, stainless-steel alligator
belt clip and test cap
• Instructions in local languages included
• Optional hard hat clips available
• Two years of protection with zero maintenance costs
• Continuous, alphanumeric, status LCD shows detector
life remaining, alarm setpoints and advises self-test
status
• Rugged, IP-66/67 highly water-resistant design
• Built-in concussion-proof boot
• Records and displays the peak alarm encountered and
the time elapsed since the exposure occurred
• Automatic event logging records 10 most recent alarm
events that can be downloaded via infrared port
• Two alarm levels (Low / High)
• Provides typical 95 dB tone and bright, quad-LED indi-
cation on alarm
Extreme protection!
Extreme durability!
Extreme value!
Simply clip the GasAlertClip Extreme to
your lapel, pocket, belt or hard-hat for
unequaled, cost-effective protection
Features:
Complete Specifications Available Upon Request
Ordering Information:
Part No. GasAlertClip for: Measuring Range Accessories:
GA24XT-H Hydrogen sulfide 0-100 ppm GA-HC-1 Hard hat clip (for use with alligator clips
GA24XT-M Carbon monoxide 0-300 ppm GA-AG 1 and 2)
GA24XT-X Oxygen 0-30% (% by vol) GA-AG-1 Alligator clip (stainless steel)
GA24XT-S Sulphur dioxide 0-100 ppm GA-AG-2 Alligator clip (non-conductive)
GA-TC-1 Test cap and hose
GA-TS02 Automatic test station
