5.6.8 Current Outputs Page

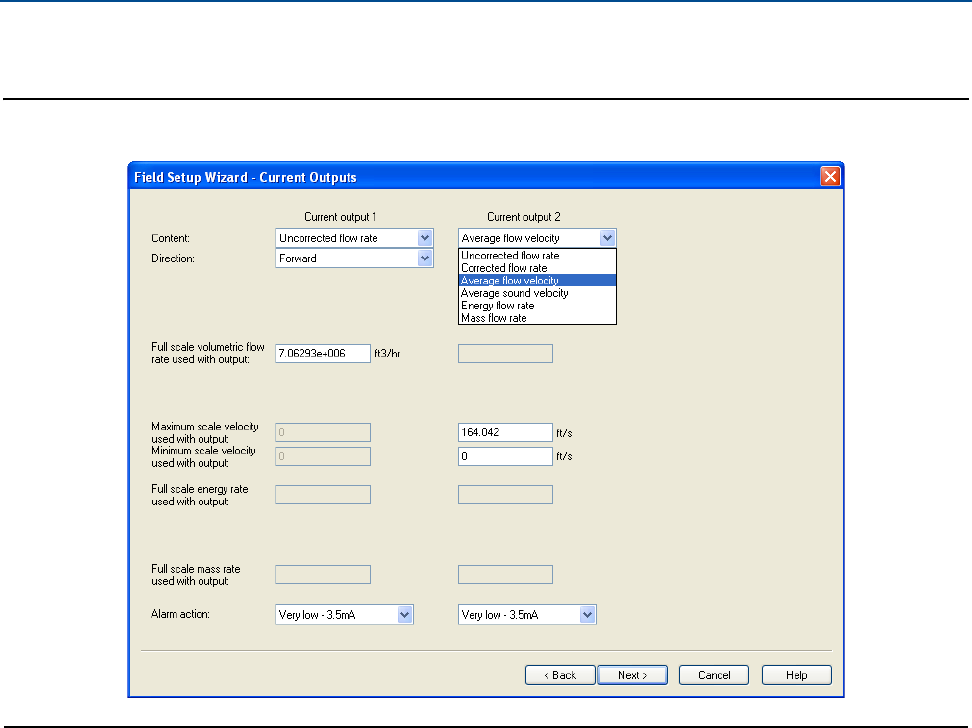

Figure 5-11 Field Setup Wizard - Meter Current Outputs Page
1. From the
Current Outputs Page, choose the desired settings:
• Content:
— Current output 1
Current output 2
Options: Actual flow rate (Uncorrected), Standard flow rate (Corrected),
Average flow velocity, Average sound velocity, Energy rate, or Mass rate
(Energy rate or Mass rate available if selected on Frequency outputs page)
• Direction:
— Reverse
— Forward
— Absolute
• Full scale volumetric flow rate used with output:
— Options: US Customary - ft
3
/sec.,hr, day or Metric - m
3
/sec.,hr, day
• Alarm Action:
— High - 20 mA
— Low - 4 mA
— Hold Last Value
— Very Low - 3.5 mA
— Very High - 20.5 mA
— None
