343615-YTG-A-0807
Unitary Products Group 29

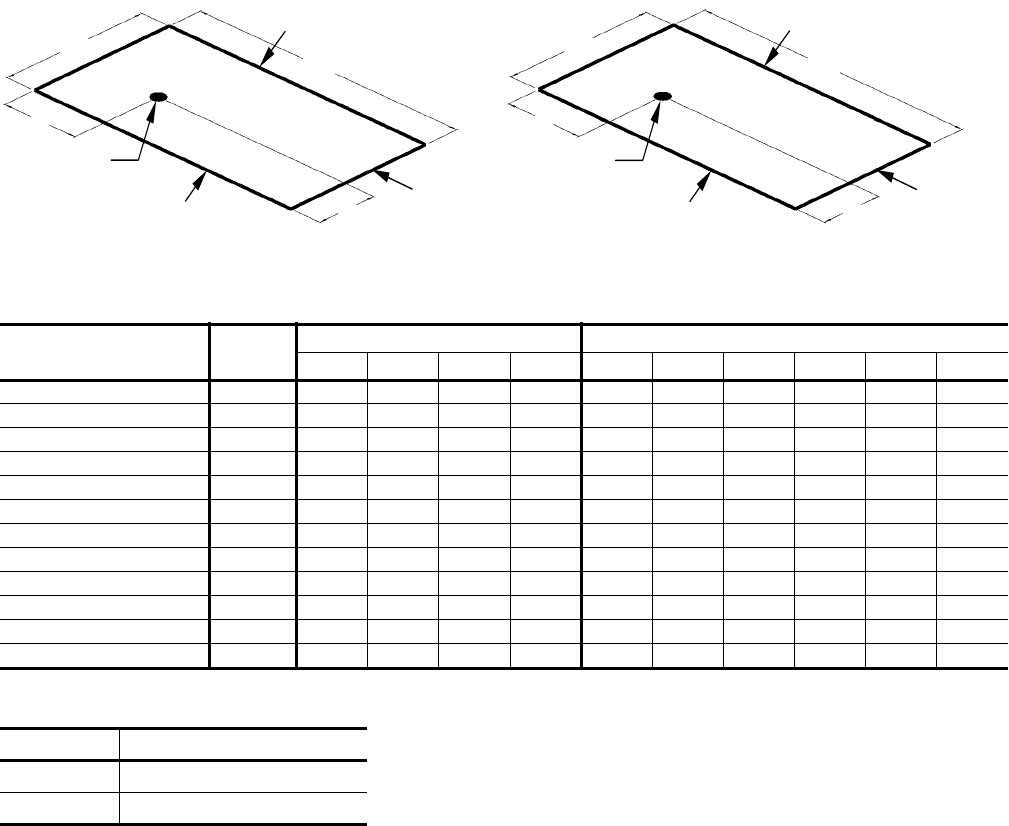

FIGURE 10 -FOUR AND SIX POINT LOADING
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
E
F
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
TABLE 30: DY 4 AND 6 POINT LOADS WEIGHT DISTRIBUTION
UNIT TOTAL
4-Point Loading (lb) 6-Point Loading (lb)
ABCDABCDEF
DY036 Cooling/ Electric 575
132 125 155 164 89 85 82 102 106 110
DY036N04 615
141 133 166 175 95 91 88 110 114 118
DY036D06 625
143 135 168 178 96 93 89 111 115 120
DY036N08 635
145 138 171 181 98 94 91 113 117 122
DY036D10 645
148 140 174 184 99 96 92 115 119 124
DY048 Cooling/ Electric 585
134 127 158 167 90 87 84 104 108 112
DY048(D,N)06 635
145 138 171 181 98 94 91 113 117 122
DY048(D,N)10 655
150 142 177 187 101 97 94 117 121 125
DY060 Cooling/ Electric 590
135 128 159 168 91 88 84 105 109 113
DY060D06 640
147 139 173 182 99 95 92 114 118 123
DY060N08 650
149 141 175 185 100 97 93 116 120 125
DY060(D,N)10 660
151 143 178 188 102 98 95 118 122 126
TABLE 31: CENTER OF GRAVITY
DIMENSION 3 - 5 TON
X 40”
Y 20”
