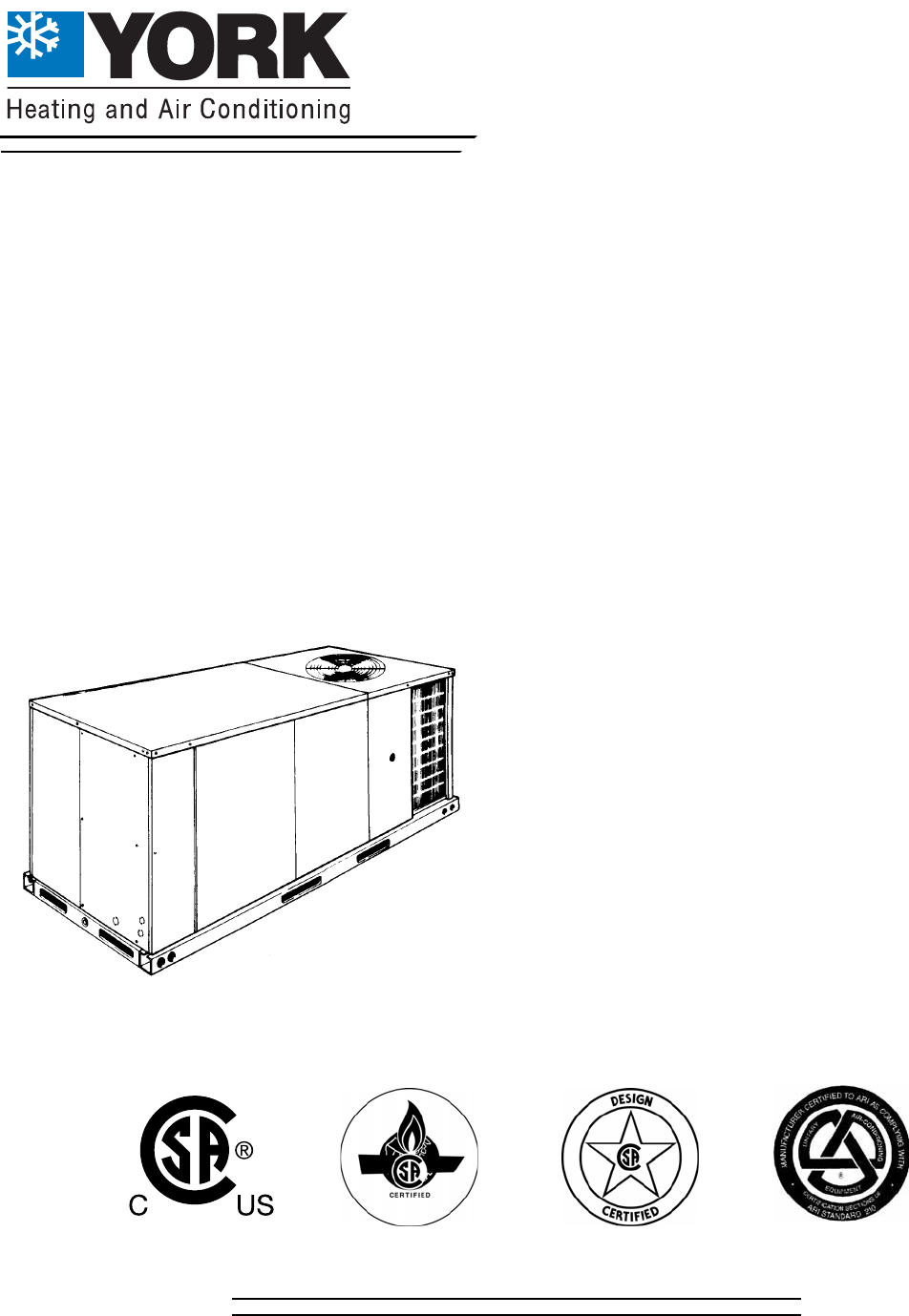

York DJ 060 Air Conditioner User Manual



036-21687-002-A-1105
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
SINGLE PACKAGE GAS/ELECTRIC UNITS
AND SINGLE PACKAGE
AIR CONDITIONERS
DJ 036, 048 & 060
3, 4 & 5 NOMINAL TONS
13.40 to 13.50 SEER
®
TECHNICAL GUIDE
DESCRIPTION
YORK Sunline Magnumunits are convertible single pack-
age air conditioners with a common cabinet and a common
roof curb for the 3, 4 and 5 ton sizes. The units were
designed for light commercial and commercial applications.
They can easily be installed on a roof curb, slab, roof jack or
frame.
All units include:
Powder Paint finish that meets ASTM-B-117 1000 hour
salt spray standards
Permanently lubricated motors
Bottom or side air discharge configuration capability
(field convertible)
Manufactured under the quality standards of ISO9001
Simplicity
TM
Control Board
Copper tube/aluminum fin coils
Easy access to all components
Rigging holes in base rails for lifting
Fork lift slots on three sides
Single point power connection
Complete factory package - tested, charged and wired
Belt Drive Indoor Blower
CSA agency listing on all units
WARRANTY
Factory Limited Parts Warranty
One-year parts warranty
A Five-year parts warranty on the compressor and
electric heat elements.
Ten-year parts warranty on the gas-fired heat
exchangers.
