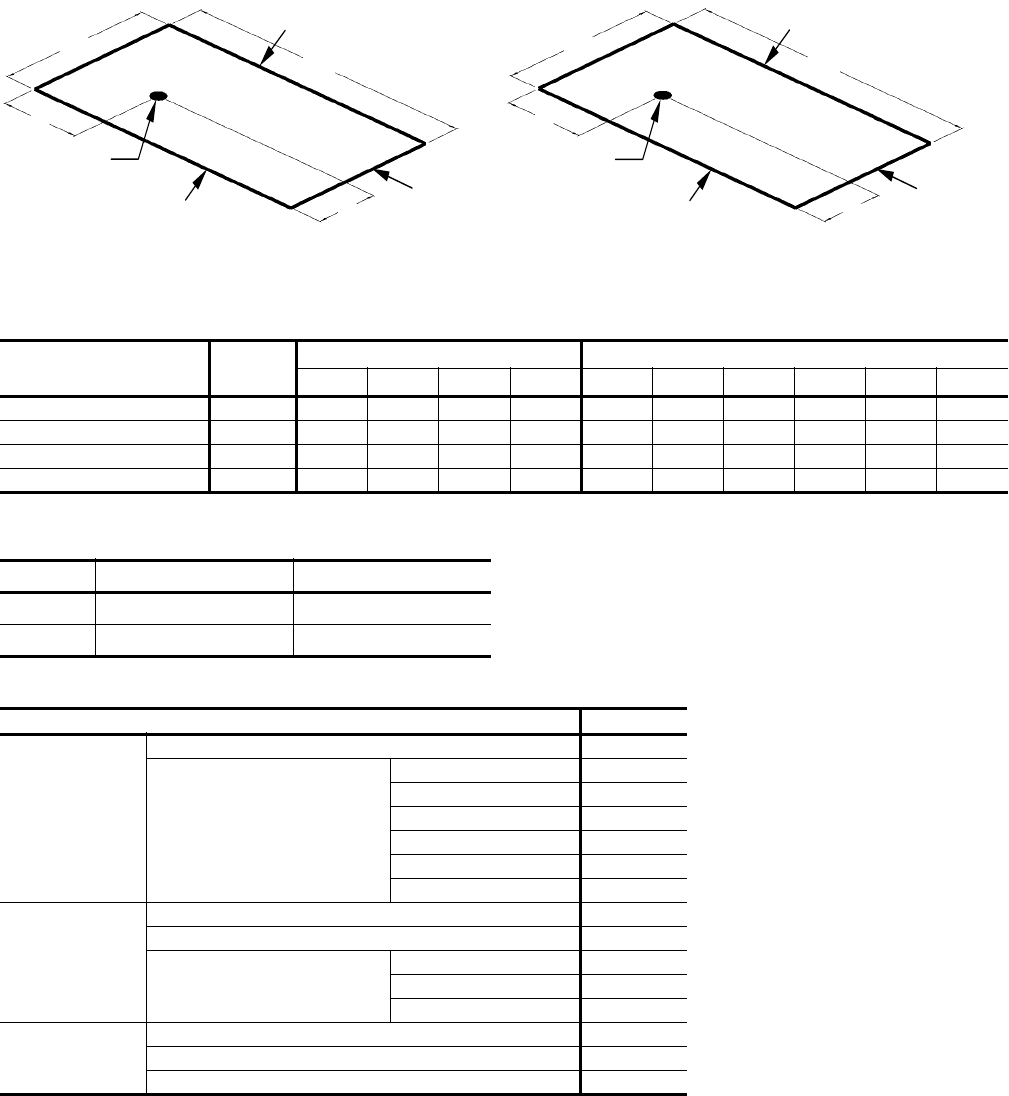

FIGURE 10 - FOUR AND SIX POINT LOADING
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
E
F
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
TABLE 20: DF 4 AND 6 POINT LOADS WEIGHT DISTRIBUTION
UNIT TOTAL
4-Point Loading (lb) 6-Point Loading (lb)
ABCDABCDEF
DF072 Cooling/ Electric 660
147 144 183 186 98 97 96 122 123 125
DF072D06 710
158 155 197 201 105 104 103 131 132 134
DF072N08 720
160 157 200 203 107 106 104 133 134 136
DF072(D,N)10 730
162 159 202 206 108 107 106 135 136 138
TABLE 21: CENTER OF GRAVITY
DIMENSION
3 - 5 TON 6 TON
X
40-¾” 44”
Y
19-¾” 22”
TABLE 22: DF OPERATING WEIGHTS (LBS.)
MODEL SIZE 6 TON
BASIC
UNIT
DF (Cooling Only) 660
DF
(Gas/Electric)
N04 -
N06 -
N08 720
N10 730
D06 760
D10 730
OPTIONS
Economizer 50
Motorized Damper 26
Electric Heater
5 - 7 kW 18
10 - 15 kW 23
20 - 30 kW 28
ACCY.
Roof Curb 92
Barometric Relief / Fixed Air Damper 10
Belt-Drive Blower 5
