NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
7
Figure 6
Figure 7 Figure 8
C
A
B
Gas
Line

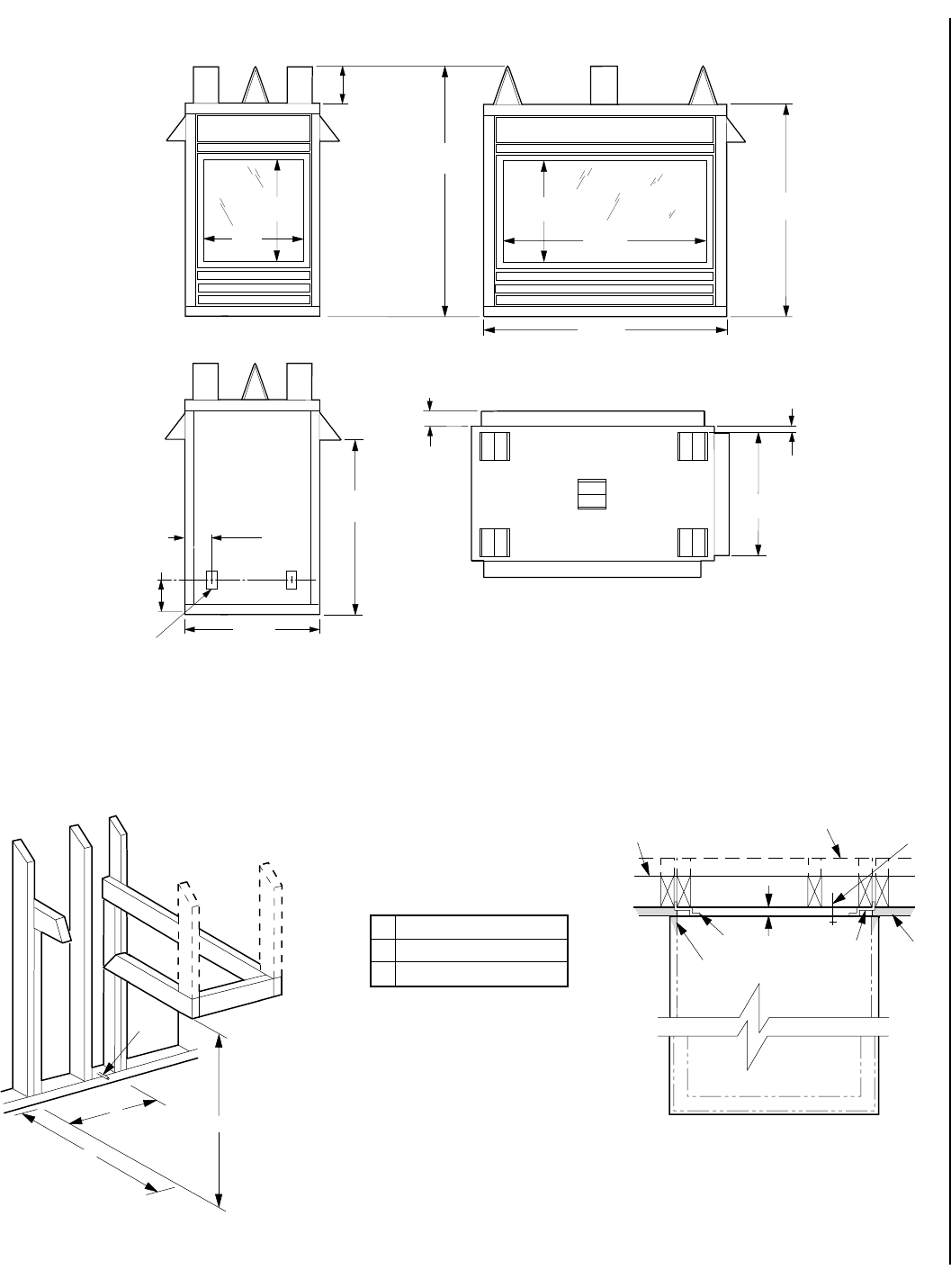

VFPF FRAMING SPECIFICATIONS
VFPF APPLIANCE SPECIFICATIONS
Gas Line
Energy Wall
2 x 4 Outside
Wall
Drywall
Drywall
*
Bracket
Bracket
Framing Top View
* ¹⁄₂" (13mm) Required Air Space Clearance
A 22 ³⁄₄" (578 mm)*
B 40 ¹⁄₈" (1016 mm) Min.
C 43" (1092 mm) Min.
Framing Dimensions
*Note: Framing dimensions
calculated for ⁵⁄₈"
drywall finish.
End View
18"
(457 mm)
20"
(508 mm)
Open End
5 ¹⁄₂"
(140 mm)
31 ³⁄₄"
(806 mm)
24"
(610 mm)
J Box/Gas Line
Opening
(Both Sides)
4"
(102 mm)
4 ¹⁄₂"
(114 mm)
Front View
(VFPF)
42 ³⁄₄"
(1086 mm)
40"
(1016 mm)
34"
(864 mm)
20"
(508 mm)
37"
(940 mm)
⁵⁄₈"
(16 mm)
Top View
3 ¹⁄₈"
(79 mm)
18"
(458 mm)
