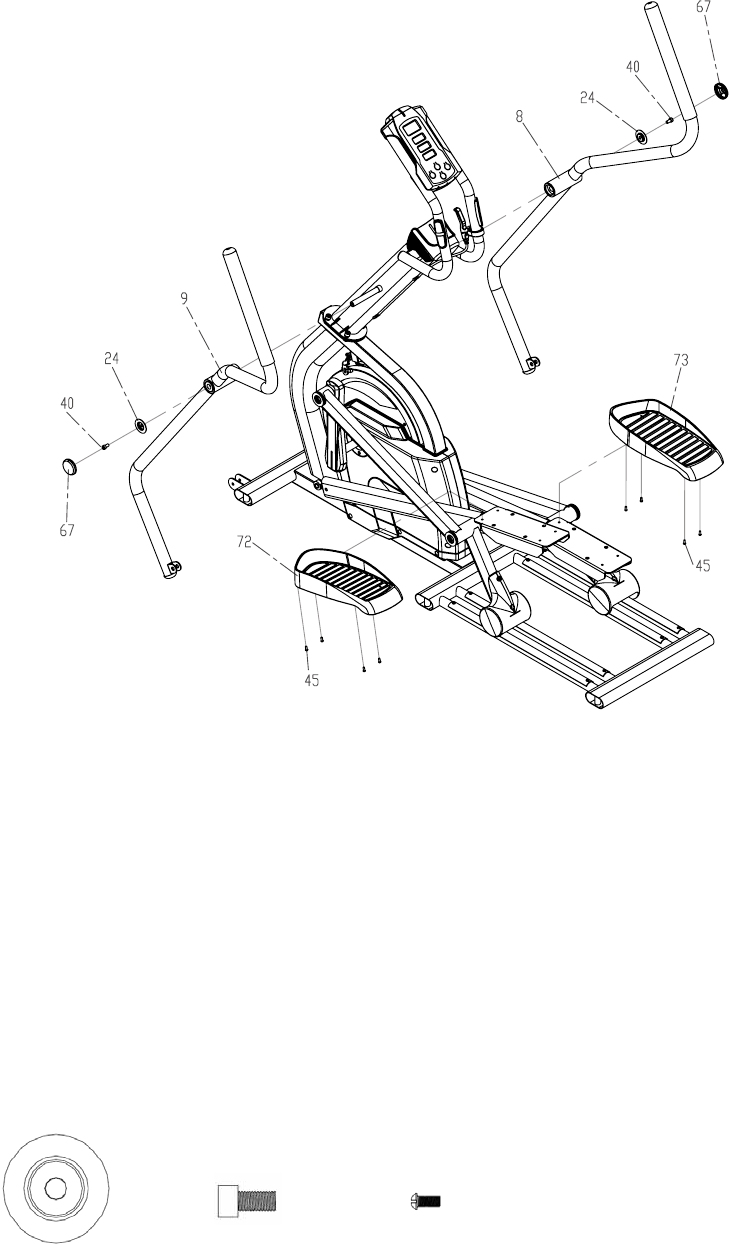

1. Remove the foam from the console mast axles and the plastic ties from the tubes that slide onto
the console mast axles.
2. Slide the two swing arms (8 Right & 9 Left) onto the console mast axle. There is a left and right
swing arm (marked with an “R” and an “L”) so make sure you assemble the correct one on each
side. Do not force the arms onto the axle or use a hammer, as damage to the bearings could
occur. The swing arms have been previously installed at the factory and should t properly,
although it is a snug t.
3. Secure the swing arms in place with the stainless steel bolts (40; at side of washers should be
on the outside) and cup washers (24) and tighten with the wrench (108). Snap the decorative
caps (67) over the cup washers.
4. Install the foot pedals (72 Left & 73 Right) with eight Phillips head screws (45) and tighten with
the Phillips head screw driver (107). The pedals are identied with an L or R on the bottom.
SWING ARMS & PEDALS
2
#24. Cup Washer
(2 pcs)
#40. M8 x 15mm
Stainless Steel Bolt
(2 pcs)
#45. M5 x 10mm
Phillips Screw
(8 pcs)
HARDWARE
