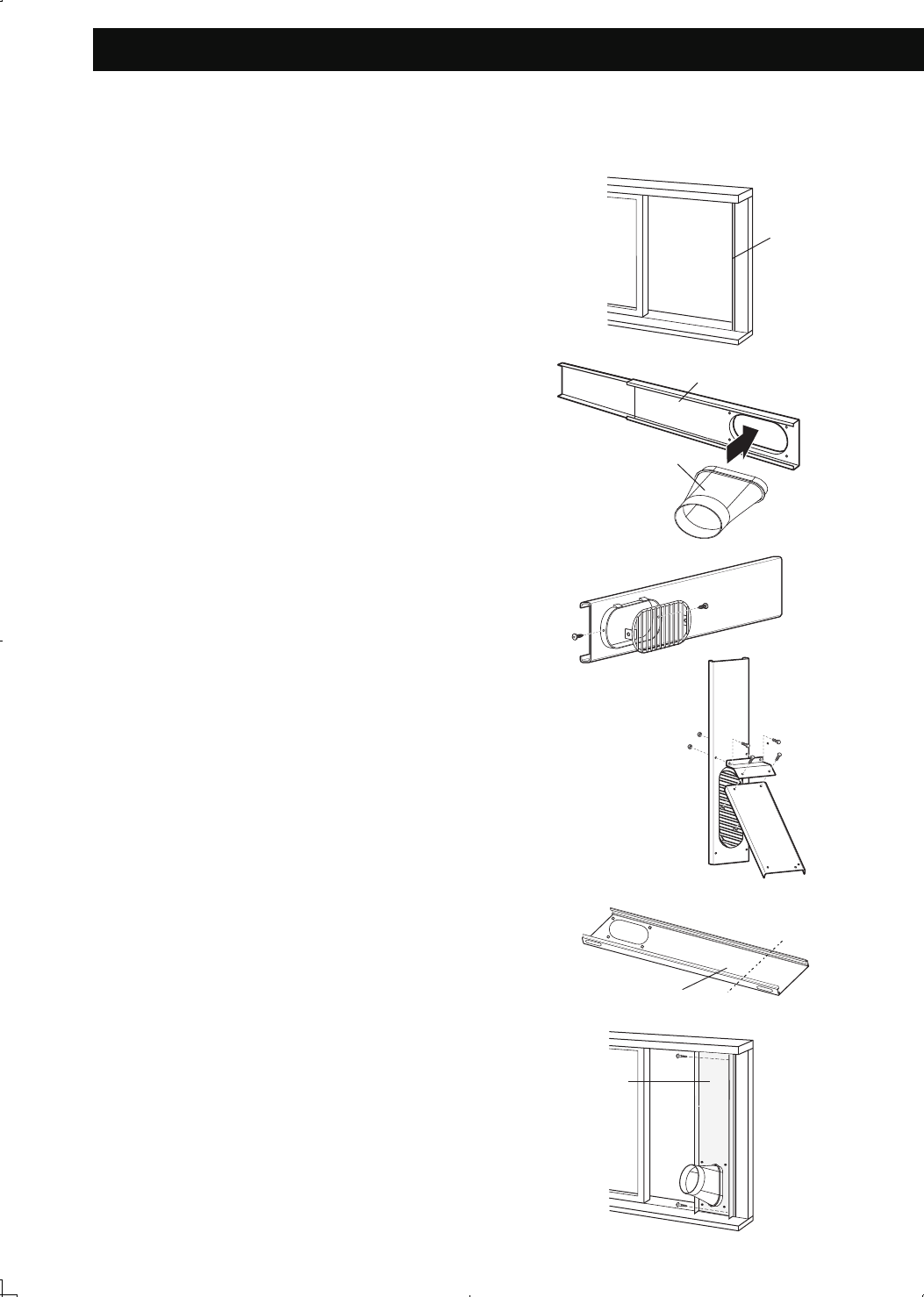

Cut the foam seal A to the proper length
and attach it to the window frame.
2
Attach the window exhaust adapter to
the window panel inside opening.
3
Attach the protective screen to the
outside of the window exhaust adapter.
Use 2 screws to attach the protective
screen onto the outside of the window
exhaust adapter.
4
 Install the rain deector to the outside
of the window panel.
Line up the holes on the rain deec
-
tor and the window panel. Use 4 bolts,
4 washers, 4 split-ring washers and 4
nuts to attach the rain deector onto the
window panel.
5
Install the window panel into the window
frame.
If the inner height of the window is less
than 28" (718mm) high.
(1) Remove the adjustment panel from the
window panel, and cut the window pan-
el to the same height as the window.
(2) Open the window sash and place the
window panel on the window frame.
(3) Secure the window panel to the window
frame with 2 large wood screws.
INSTALL WINDOW PANEL
Installation in a sliding sash window
(CV-P12PX, CV-P13PX)
E-14
Window panel
Foam seal A
Window panel
Window exhaust adapter
Inside
Cut
Window panel
