Rinnai Corporation ES38 Manual 25
Extension Kit Installation
Item Description Part No. FOT-102 FOT-103 FOT-114 FOT-115
1 Exhaust Pipe (adjustable)
11.4-20.3 in (290-515 mm)
FOT 111-1 1
1 Exhaust Pipe (adjustable)
21.0-39.6 in (533-1005 mm)
FOT 112-1 1 1
2 Exhaust Pipe - 40 in (1016 mm) FOT 114-3 1
3 Air Intake Hose - 29.5 in (750 mm) RHF 1000-130-e 1
3 Air Intake Hose - 49.2 in (1.25 m) RHF 1000-130-b 1
3 Air Intake Hose - 90.6 in (2.3 m) RHF 1000-130-F 1
4 Bent Elbow FOT 025-4 1
5 Hose Joint FOT 064-8 1 1 1
6 Pipe Stopper A 1001F-250 1 1 2 2
7 Pipe Stopper B FOT 111-6 1 1 1
9 Pipe Clamp FOT 064-11 2 sets 3 sets 4 sets
10 Wall Fixture FOT 064-12 2 3 4
11 Nut FOT 062-10 2 3 4
12 Screw A ZAA0420SC 2 3 4
13 Screw B CP-30408 4 6 8
8 Top Stopper FOT 062-7 1 1 1
14 O Ring M10B-4-49 1

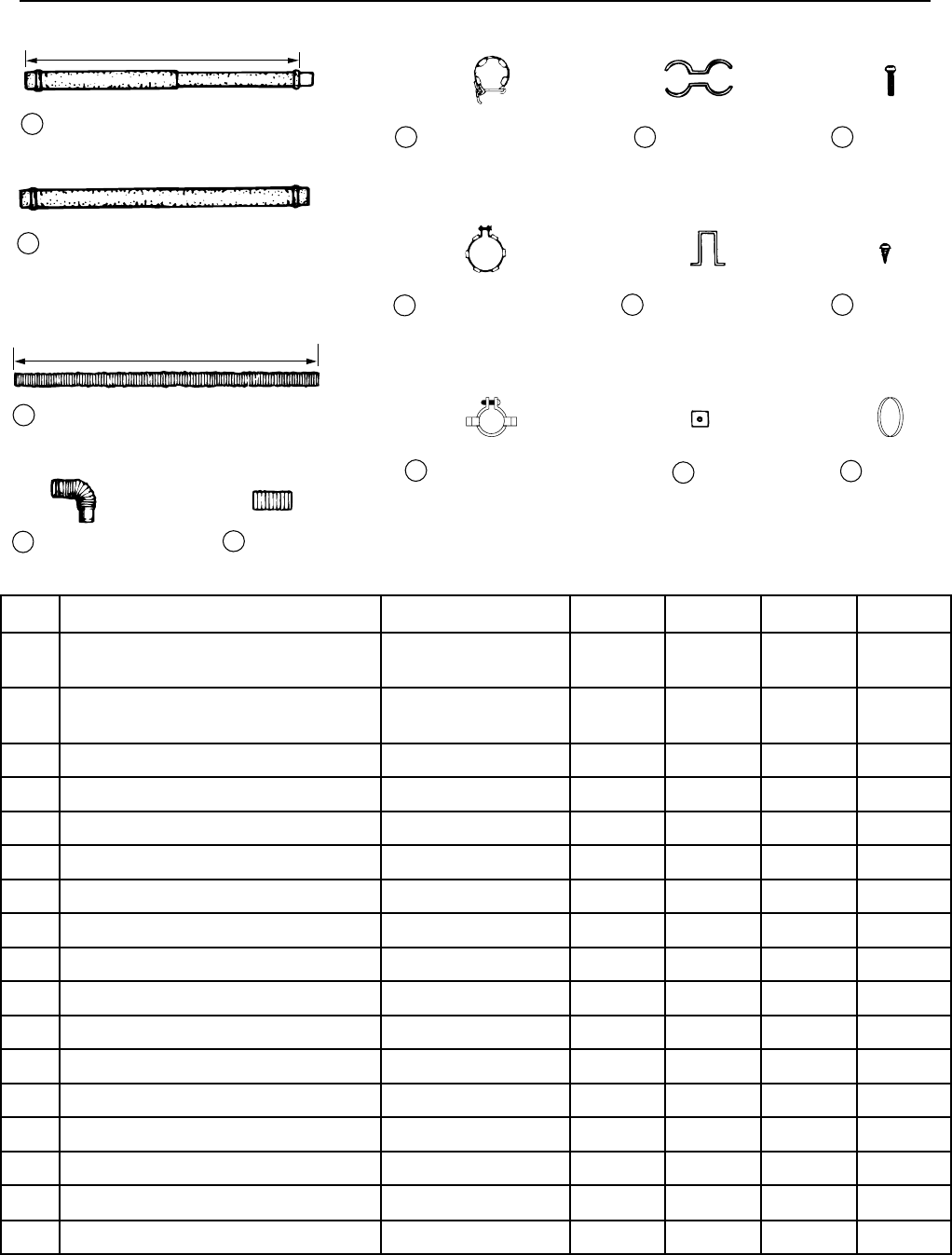

Extension Kits and Parts
A FOT-102(11.4-20.3 inch)
B FOT-103(21.0-39.6 inch)
A FOT-102(29.5 inch)
B FOT-103(49.2 inch)
C FOT-114(90.6 inch)
EXHAUST PIPE
EXHAUST PIPE(STRAIGHT) 40 inch
AIR INTAKE HOSE
BENT ELBOW HOSE JOINT
PIPE STOPPER A
PIPE STOPPER B
PIPE CLAMP
WALL-FIXTURE
NUT
SCREW A
SCREW B
TOP STOPPER O RING
1
2
3
4
5
6 9
7
8
10
11
12
13
14
