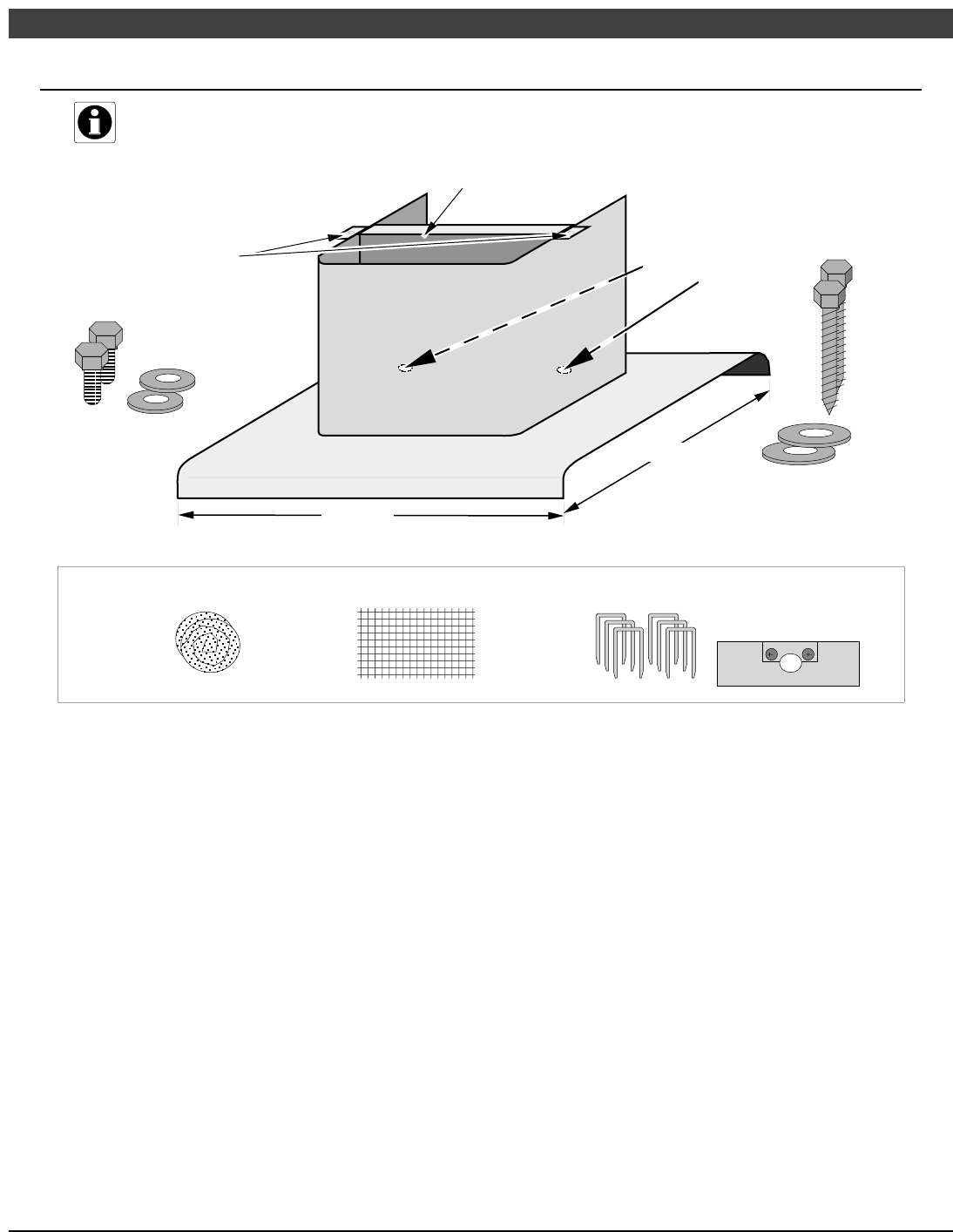

Pedestal (Part # 99200106)
If using outside air with the pedestal, follow the directions below under "Using Outside Air with the
Pedestal" prior to installing the pedestal.
When attached, the faceplate of
the stove is 4 3/4” in front of the
front edge of the pedestal.
23 5/8”
Optional Air
Intake Port
Attachment Bolts and
Washers - use a 9/16"
socket wrench to
attach the pedestal to
the stove.
If installing in a mobile home,
insert the lag bolts through
these holes and screw them
into the floor with a 1/2" socket
wrench.
OUTSIDE AIR EQUIPMENT
Staples are
used to attach
the screen to
the floor.
Screen is used
to prevent
rodents from
entering.
Insulation is
used to seal
the side edges
of the pedestal
.
The cover plate is used
to seal off room air.
22”
Using Outside Air with the Pedestal
Before installing, check the section "Outside Air Requirements" 11 for installation concerns.
1. Determine the location of the outside air hole penetrating the floor (& hearth). The illustration
above details the size of pedestal and its location in relation to the stove. The hole may be cut
anywhere underneath the pedestal, as long as it is not within 2" of the outside perimeter of the
pedestal, is at least 16 square inches in area, and does not interfere with structural members of
the home. Place the rodent screen over the hole (above or below) and secure with staples.
2. Attach the stove to the pedestal with the included bolts. Tuck the included insulation underneath
the side edges of pedestal to seal off any air from entering underneath the pedestal.
