NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
6

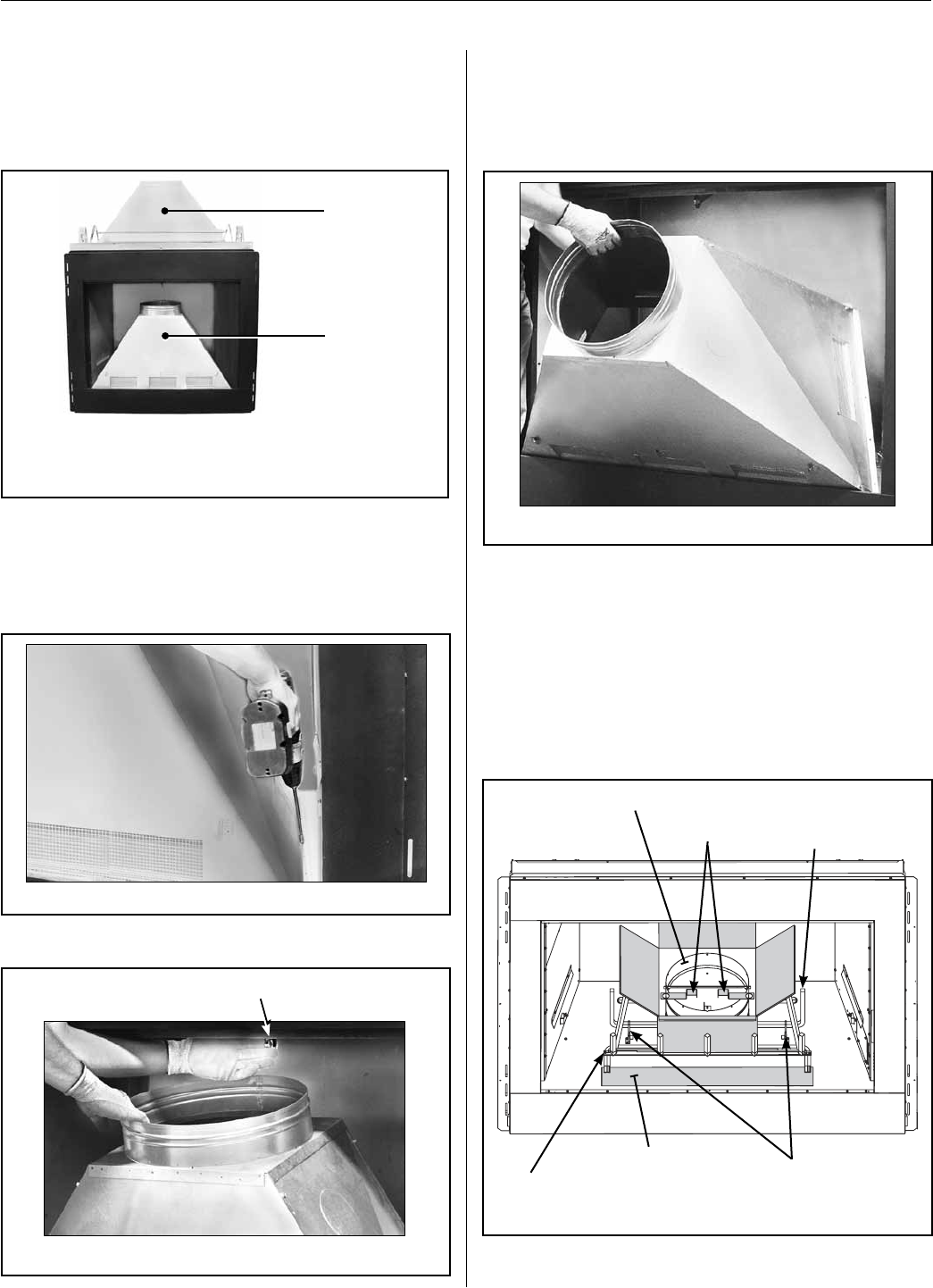

LENNOX HEARTH PRODUCTS • ESTATE™ SERIES WOOD-BURNING FIREPLACES • MODELS EST-36, EST-42, EST-50 • INSTALLATION INSTRUCTIONS
Step 1. Remove outer transition assembly from firebox.
1.1. See Figure A-2, below. Using a 1/4" nut driver, remove the two
screws securing the outer transition to the rebox (one screw on
each side).
Damper Handle
Step 2. Remove all items from firebox.
2.1. See Figure A-5, below. Remove the box, damper link, screen rods,
and mesh firescreens, and set aside for later installation.
2.2. Cut the two wire ties securing the grate to the rebox.
2.3. Using a 1/4" nut driver, remove the screws from the brackets under
the grate. Discard the wire ties and brackets.
2.4. Remove the grate from the rebox, and set aside for later installation.
Figure A-2
1.2. With one hand, hold the damper handle back (Figure A-3, below).
Figure A-3
1.3. With the other hand, grasp the top of the outer transition and pull
forward (Figure A-4, below).
1.4. When the top of the transition is outside the rebox, let go of the
damper handle, and use both hands to lift the entire transition
assembly out of the rebox.
Figure A-4
Damper Link and Screen Rods
Mesh Firescreens
Inner Transition Collar (hardware bag underneath)
Grate Brackets
Cut and discard wire ties.
Use 1/4" nut driver to remove
screws from brackets.
Grate
Figure A-5
Figure A-1
Outer
Transition
Assembly
Inner
Transition
Lennox Hearth Products Estate™ Series EST-50 firebox assembly,
as shipped, with outer transition assembly packed inside firebox.
INSTALLING THE EST-50 OUTER TRANSITION ASSEMBLY
This section contains instructions for attaching the outer transition
assembly on the EST-50 rebox. The transition assembly parts are
shipped inside the EST-50 rebox (Figure A-1, below) and are not
available as separate kit or accessory items.
(continued on next page)
