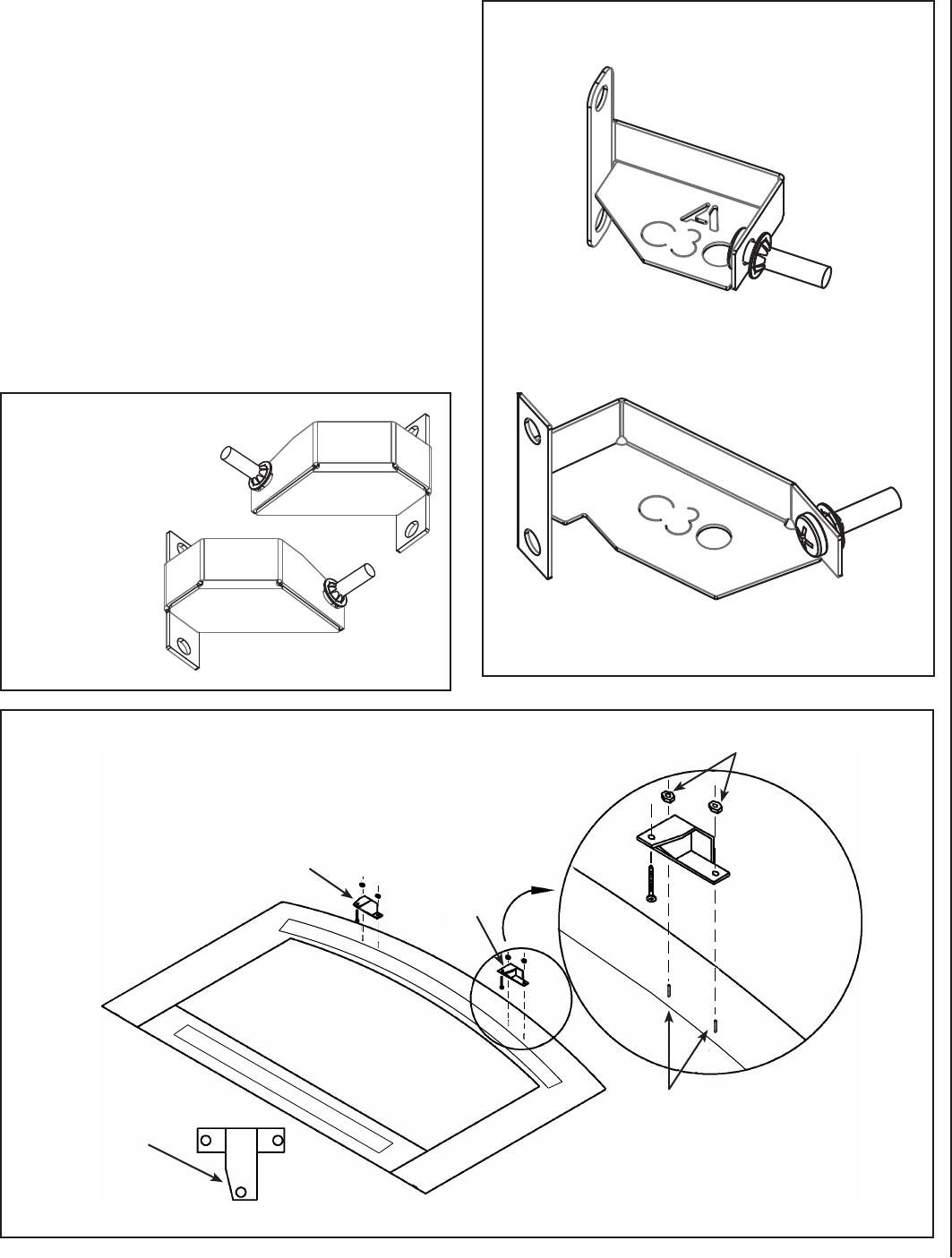

Step 4. Included in the face box are two mounting brackets that attach to
the top of the face. There is a left and a right hand bracket. When
the bracket is installed on the face the lower left hand corner of
the bracket will have an angled edge that will be facing towards
the outside of the face. The mounting brackets for the Ravelle™
30 Arch face uses the smaller brackets with a measurement of
2 inches across the top (See Figure 4B, item #1). The mounting
brackets you will use for the Ravelle 30 Classic face will be the
longer brackets with a measurement of 3-1/2 inches across the
top (See Figure 4B, item #2). Place the correct bracket onto the
studs shown in Figure 5. Thread nuts onto the studs finger tight
only (see Figure 5).
Step 5. Remove all protective film material from the face before installing
it on the fireplace. Remove any finger prints or smudges from
a plated face before burning the fireplace. They can be removed
using denatured alcohol or household glass cleaner and a soft
cloth. Marks left on these surfaces may become etched into the
finish if not removed prior to burning the unit. Never use brass
polish to clean the plated surfaces.
Nuts
Top View of Bracket
Left Bracket
Right Bracket
Figure 4A
Note: Ravelle™ 42
Arch and Classic faces
both use the same
mounting brackets.
Figure 5
Studs
NOTE: DIAGRAMS AND ILLUSTRATIONS ARE NOT TO SCALE.
Item #1
Item #2
Ravelle 30
Figure 4B
Arch Face Bracket
Classic Face Bracket
3
Angled Edge to the
Outside of the Face
