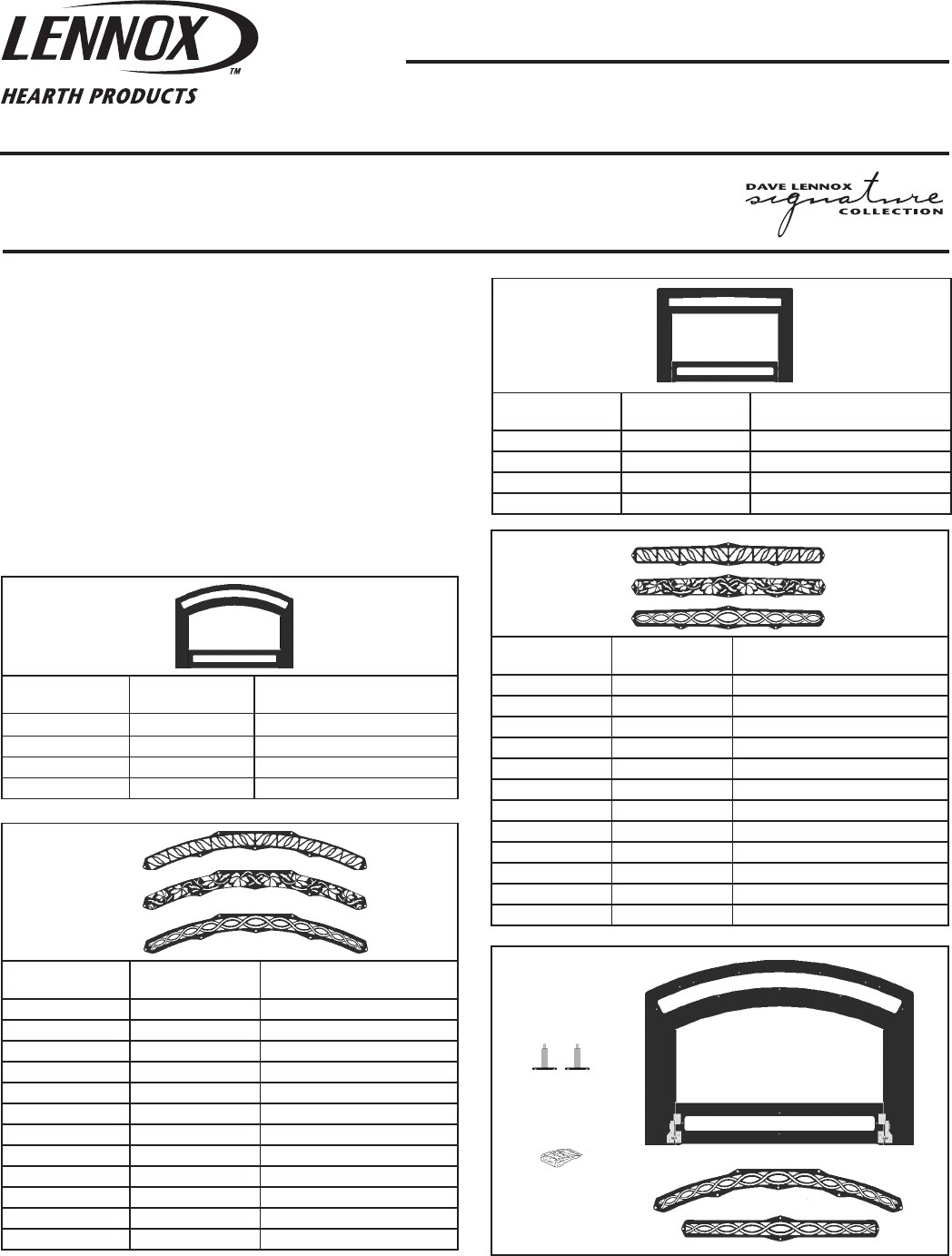

ARCH AND CLASSIC FACE AND INSET KITS
MODELS RAVELLE™ 30 AND RAVELLE 42
INSTALLATION INSTRUCTIONS FOR INSTALLING ARCH AND CLASSIC FACE KITS
FOR USE WITH THE RAVELLE 30 AND RAVELLE 42 DIRECT VENT GAS FIREPLACES
775,253M
Rev. A, 06/2010
HEARTH PRODUCTS
KITS AND ACCESSORIES
TM
KIT CONTENTS (See Figure 1):
Please ensure that all these parts are in one of the two boxes.
See complete list of kits available on Page 4.
1 ea. Face, (Large box) Item #1
1 ea. Insets (Two insets in small box), Item #2
2 ea. Mounting brackets (Included in large box) Item #3
1 ea. Bolt Kit (Includes 2- lower mounting screws and
14 ea. 10/24 nuts) (Included in large box) Item #4
1 ea. Instruction Sheet
TOOLS NEEDED:
3/8” Nutdriver or Wrench
Phillips Screwdriver
Arch Face -
Required to
Complete Face: Insets
RAVELLE 30
Cat. No.
RAVELLE 42
Cat. No.
Description
75286 75294 Black Face
75288 75296 Gold Face
75287 75295 Brushed Nickel Face
75289 75297 Black Nickel Face
Insets - Required,
Includes 1 Top &
1 Bottom Inset)
RAVELLE 30
Cat. No.
RAVELLE 42
Cat. No.
Description
75306 75322 ASPEN Black
75308 75324 ASPEN Gold
75307 75323 ASPEN Brushed Nickel
75309 75325 ASPEN Black Nickel
75330 75338 NAPA Black
75332 75340 NAPA Gold
75331 75339 NAPA Brushed Nickel
75333 75341 NAPA Black Nickel
75298 75314 TUSCAN Black
75300 75316 TUSCAN Gold
75299 75315 TUSCAN Brushed Nickel
75301 75317 TUSCAN Black Nickel
Classic Face -
Required to
Complete Face: Insets
RAVELLE 30
Cat. No.
RAVELLE 42
Cat. No.
Description
75282 75290 Black Face, Classic
75284 75292 Gold Face, Classic
75283 75291 Brushed Nickel Face, Classic
75285 75293 Black Nickel Face, Classic
Insets (Required -
Includes 1 Top &
1 Bottom Inset)
RAVELLE 30
Cat. No.
RAVELLE 42
Cat. No.
Description
75310 75326 ASPEN Black
75312 75328 ASPEN Gold
75311 75327 ASPEN Brushed Nickel
75313 75329 ASPEN Black Nickel
75302 75318 NAPA Black
75304 75320 NAPA Gold
75303 75319 NAPA Brushed Nickel
75305 75321 NAPA Black Nickel
75334 75342 TUSCAN Black
75336 75344 TUSCAN Gold
75335 75343 TUSCAN Brushed Nickel
75337 75345 TUSCAN Black Nickel
Item #4
Item #1
Item #2
Item #3
Figure 1 - Kit Contents
NOTE: DIAGRAMS AND ILLUSTRATIONS ARE NOT TO SCALE.
