Thermostat Reset Upgrade Kit Installation Instructions
Publication Number: 629088480INS - 6 - © 2005, IMI Cornelius Inc.

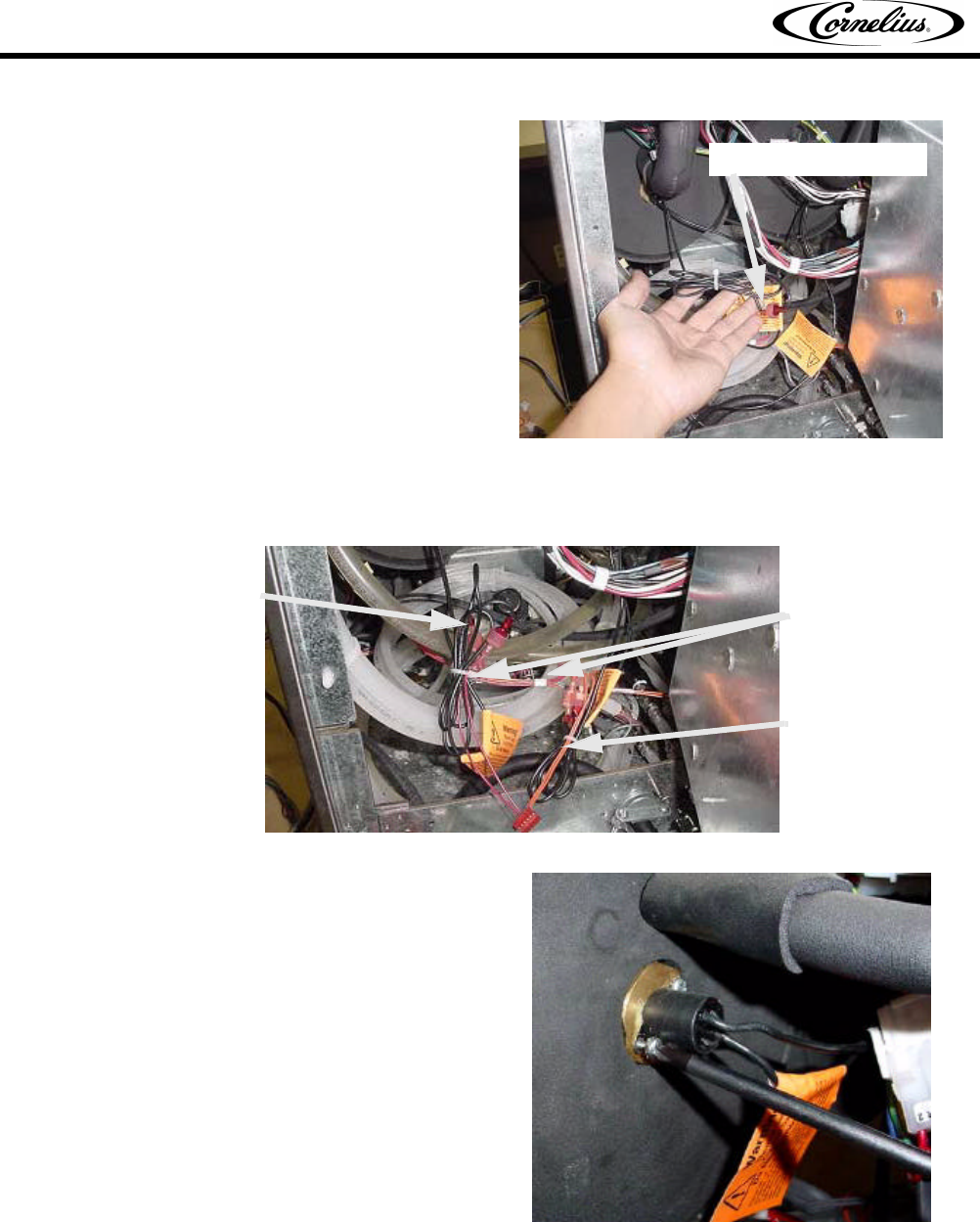

16. Disconnect terminals bridging the two
thermostats (see photo). Remove wire tie,
if present.
17. Take the wires from the safety circuit and connect them to the thermostats.
IMPORTANT: Make sure that you connect the two red wires to one thermostat and the orange
wires to the other thermostat. Zip tie the bundles together.
18. Change out the screws in the back of the
thermostat with the supplied brass and
stainless steel lockwashers.
NOTE: Only remove one screw at a time. Do
not remove both screws at the same time or
the thermostat can fall and be damaged.
19. Using hand tools remove one screw.
Disconnect wires here.
Remove wire tie, if present.
Red
Power Leads
Orange
Wire tie bundles
together.
