Thermostat Reset Upgrade Kit Installation Instructions
© 2005, IMI Cornelius Inc. - 3 - Publication Number: 629088480INS

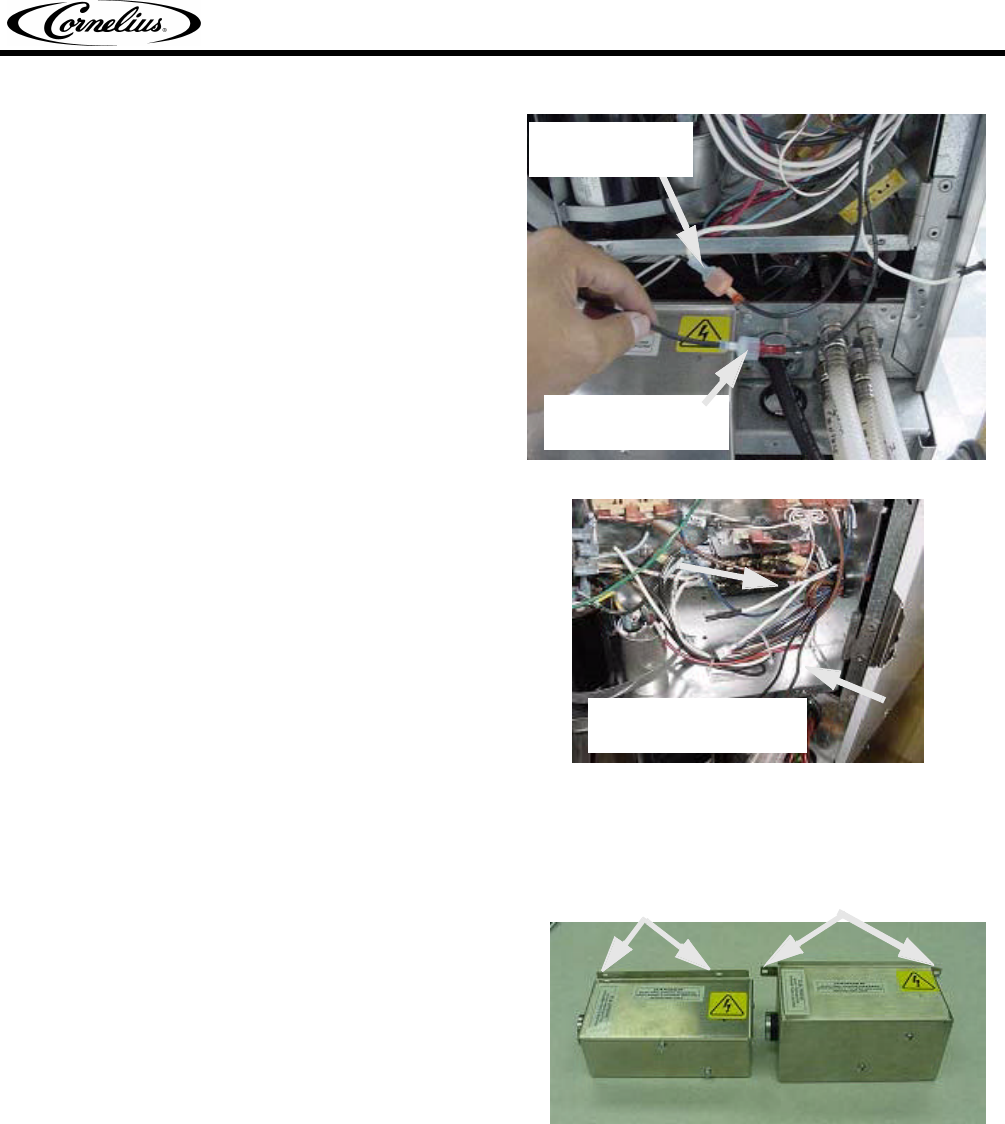

4. Remove thermostat wires from their
connections. Feed the wires out of the
contactor box. Discard the black jumper
wire.
5. Feed the white wires that originate from
the safety circuit box out of the contactor
box.
6. Pull out safety circuit box and remove the ground screw. Disconnect the main power and contactor
harness leads for the contactor.
7. Feed the white wires out through the hole and remove the box.
NOTE: Note the mounting hole locations on
the original box. If the mounting holes are on
the side of the box, proceed to step 14.
If the mounting locations are on the top and
bottom, remove all wires and bushing and
proceed to the next step to drill new
mounting holes.
Disconnect white
contactor wire from
thermostat wire.
Disconnect black
jumper from thermostat
wire and discard.
Remove the two white wires
and black thermostat wires
from contactor box.
Box with mounting holes on
top and bottom. Drill new.
Box with mounting holes on
sides. Use existing.
