Thermostat Reset Upgrade Kit Installation Instructions
© 2005, IMI Cornelius Inc. - 1 - Publication Number: 629088480INS
INSTALLATION INSTRUCTIONS
FCB Pinnacle 2 Flavor Emerson Units
THERMOSTAT RESET UPGRADE KIT P/N 629088480
IMPORTANT: This procedure is intended for use by a Qualified Service Technician.
IMPORTANT: This kit is intended to be a direct replacement of the existing safety circuit. If the
unit does not have a reset box on the back, call IMI Cornelius Service at 800-238-3600.
NOTE: Open the Cornelius web site www.cornelius.com, search for 629088480INS, and print the
instructions off in color.
Parts List
Tool List
Item Description Qty
1 Retro-Kit Enclosure Box (with wiring inside) 1
2 Hole Template 1
3 Short Thread-Cutting Screws (if needed) 6
4 Set of wire ties 1
5 Screws, 1 spare 3
6 Wiring Diagram – 620920907 1
7 7/8” Bushing (if needed) 1
8 Hex Nut 1
9 Harness, In-Rush Protection 2
10 Label, Hot Gas Error (not shown) 1
11 Brass Screws and S.S. Lock-washers (not shown) 4
Multi-Use Screwdriver Wire Stripper/Crimper
1/4” Nut Driver Needle Nose Pliers
Multi-meter Set of Mixed Terminals (red male and female
AMP fastons, fully insulated)

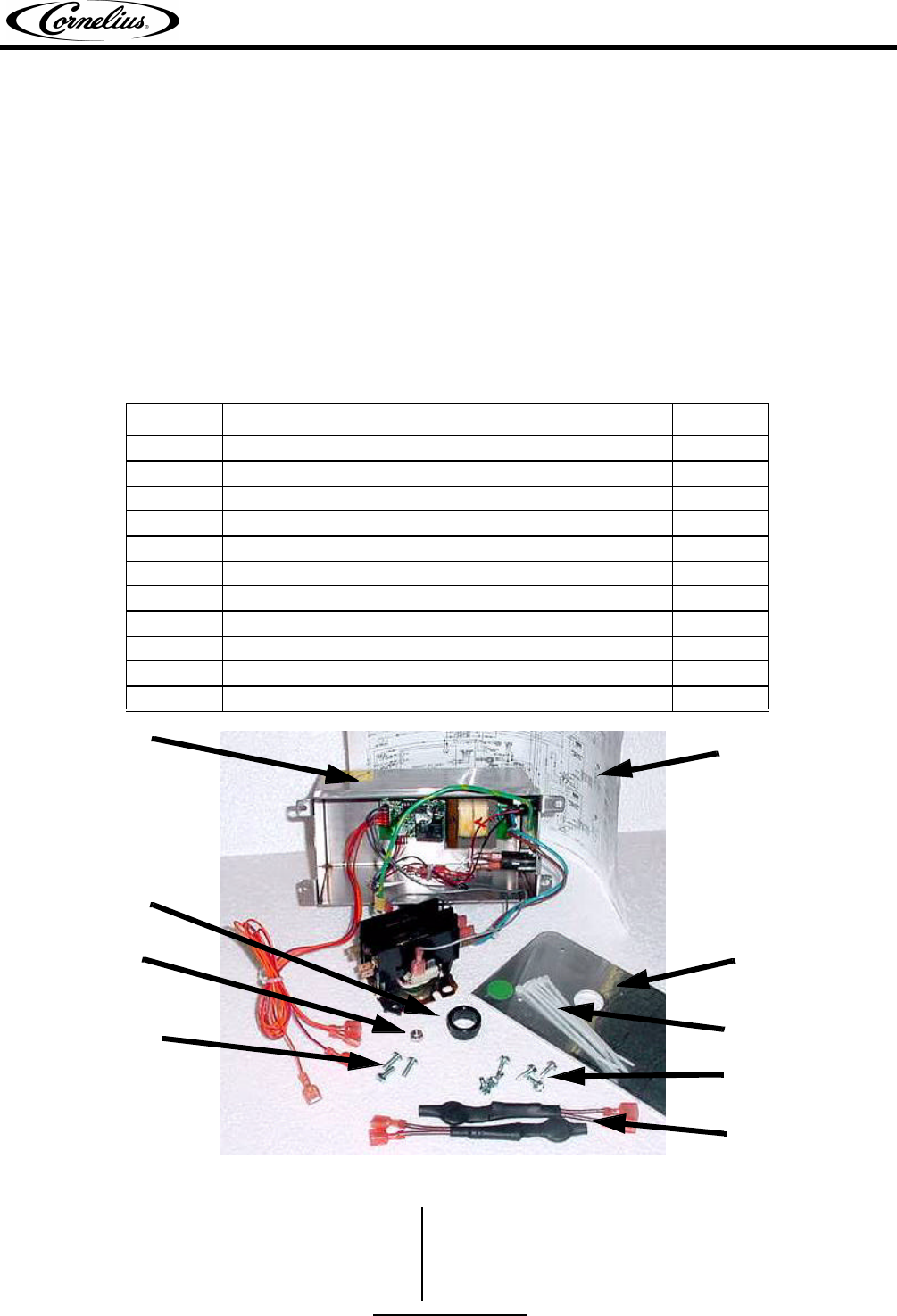

Short Thread
Cutting Screws
Set of Wire Ties
Hole Template
Retro-Kit
Enclosure Box
In-Rush Protection
Harnesses
Screws
Bushing
Hex Nut
Wire Diagram
Release Date: June 30, 2005 www.cornelius.com Revision: C
