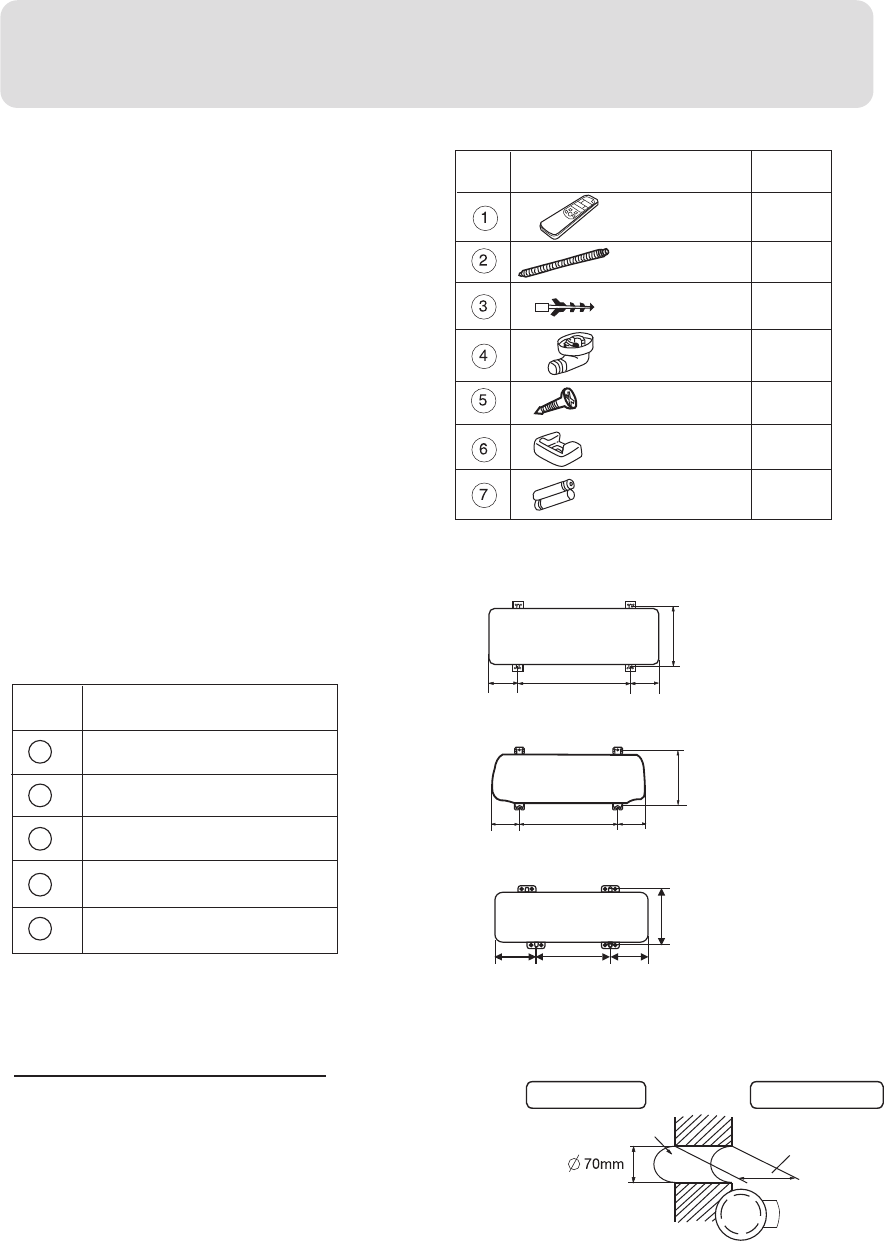

Installation Manual of Room Air Conditioner
Tool necessary
Standard accessories
Following parts shall be field
supplied
Mark
Part name
B
C
D
E
A
Drain hose
Insulation material
Connecting hose
Pipe clip
Adhensive tape
Fixing of the unit
1. Position of the wall hole
2. Making a wall hole
Drill a hole of 120x70mm dia. with a little slope towards
outside.
Wall hole should be decided according to installation
place and piping direction.(refer to installation drawings).
Indoor side Outdoor side
Wall hole
Thickness
of wall
(Cross section of wall hole)
No. Shape and description
QTY
2
1
1
1
4
4
4
HFU-09HA03(B)/R1
HFU-12HA03(B)/R1
HFU-09H03/R2(DB)
HFU-12H03/R2(DB)
HFU-18H03/R2(DB)
1.Screw driver
2.Hacksaw
3.70mm dia. hole core drill
4.Spanner(dia.17,27mm)
6.Pipe cutter
7.Flaring tool
8.Knife
9.Nipper
12.Reamer
10.Gas leakage detector
or soap water
11.Measuring tape
5.Spanner(14,17,27mm)
13.Refrigerant oil
Remote controller
dry battery #7
Drain hose
Drain-elbow
Rubber pad
Self-tapping screw
Plastic cap
Floor fixing dimensions of the outdoor unit(Unit:mm)
105 500 105
310
105 550 105
310
500140 140
256
