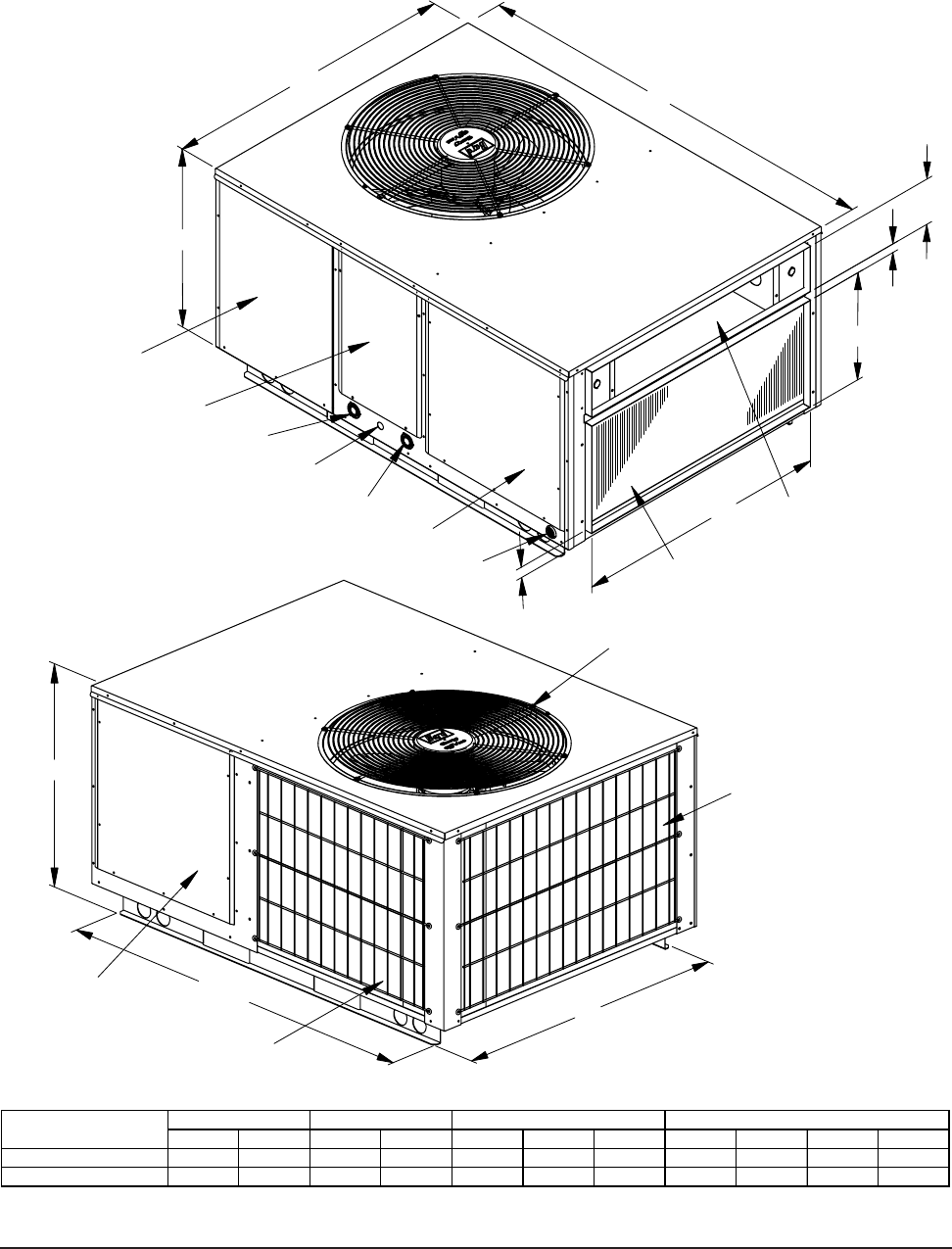

FIGURE 1
DIMENSIONS OF UNITS
MIS-2142
Unit Dimension Chart
Condenser air
intake grille
Condenser air
intake grille
Blower motor
access door
Condenser fan
G
47 11/16"
H
Compressor
access door
Control panel door
Heater package access panel
Return opening
Supply opening
Drain access
High voltage knockout
Low voltage knockout
Heater package knockout
L
W
A
E
B
C
D
F
A C B C H (height) L (length) W (width) D E F G
PA/PH1324,1330,1336 5.875 32.875 13.875 32.875 26.25 53.25 38.125 23.25 1.125 1.375 35.625
PA/PH1342,1348,1360 9.875 37.875 15.875 37.875 33.25 55.25 42.375 30.25 1.5 2.375 38.125
Unit
Unit General Dimensions
Supply Size Return Size Unit Overall Dimensions
