Page 10 AXIS T90C10/T90C20 Installation Guide
AXIS T90C20
When camera lens faces left
1. Remove the 3 screws located on the LED block. Detach the LED block from the mounting block
and separate the LED block insulator from the LED block.
2. Unscrew the ground wire from the screw hole to the left and attach to a screw hole to the
right.
3. Remove 2 screws from the mounting block and place it to the left, fasten the 2 screws again.
4. Mount the LED block insulator between the LED block and the mounting block. Align the LED
block with the screw holes to the left and fasten the 3 screws again.
When camera lens faces right
1. Remove the 3 screws located on the LED block. Detach the LED block from the mounting block
and separate the LED block insulator from the LED block.
2. Unscrew the ground wire from the screw hole to the left and attach to a screw hole to the
right.
3. Loosen the cable gland and pull a greater length of the cable so it can reach the left side of the
IR-LED.
4. Remove 2 screws on the control board, remove the control board together with the control
board insulator. Fasten the control board together with the control board insulator to the left.
5. Remove 2 screws from the mounting block and place it to the right, fasten the 2 screws again.
6. Fix the LED block together with the LED block insulator on the mounting block, fasten with the
3 screws.
.

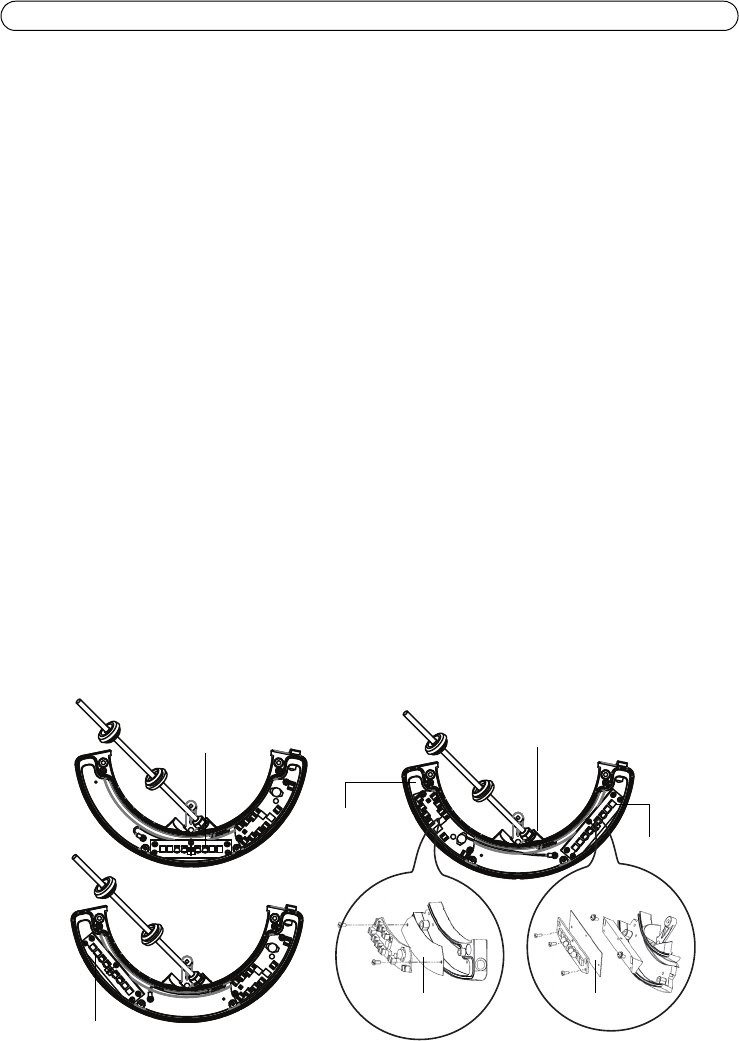

LED block
Control board
LED block insulatorControl board insulator
Cable gland
LED block
LED block
LED block in the center
LED block to the right
LED block to the left
