USBCam2 User Guide B1051061 Rev. –

3

1.5. Controls on the USBCam2

An illustration of the USBCam2 is shown below in Figure 1. For a description of user

controls on the camera, refer to

Table 1.

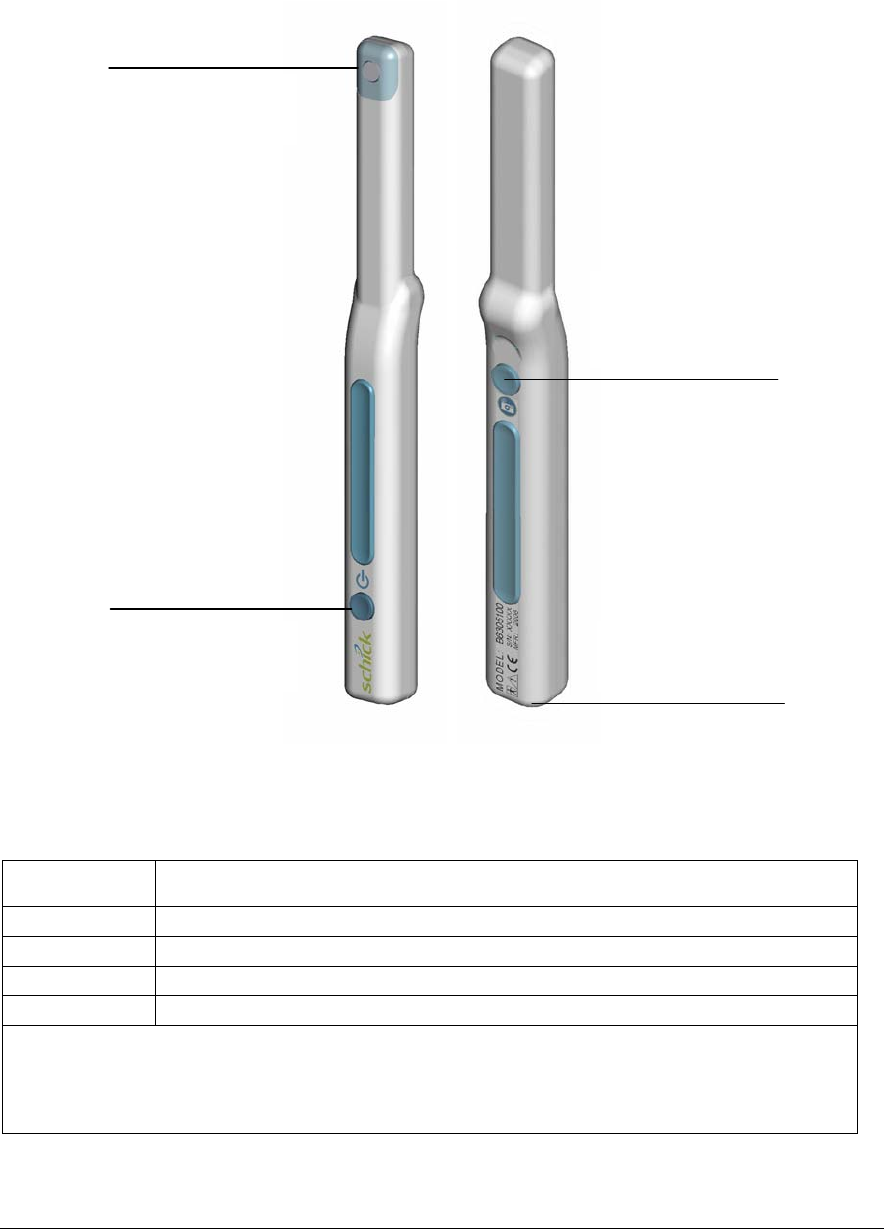

Figure 1. USBCam2 Controls

Table 1. Description of Camera Controls

Number Description

1 Camera lens and LED (light-emitting diode) source

2 Power on/off button (See Note A)

3 Freeze frame capture button (See Note B)

4 USB cable connection (See Note C)

NOTE A: Light source will automatically time out after 5 minutes of continuous operation.

NOTE B: Can be set to either Freeze / Unfreeze images or Freeze / Take images. Refer to Section

4,

Operation, for details.

NOTE C: "B" connector end of USB cable connects here.

(1) Camera Lens and

Light Source (LEDs)

(2) On / Off Button

(

4

)

USB Connecto

r

(3) Freeze Frame

Capture Button
