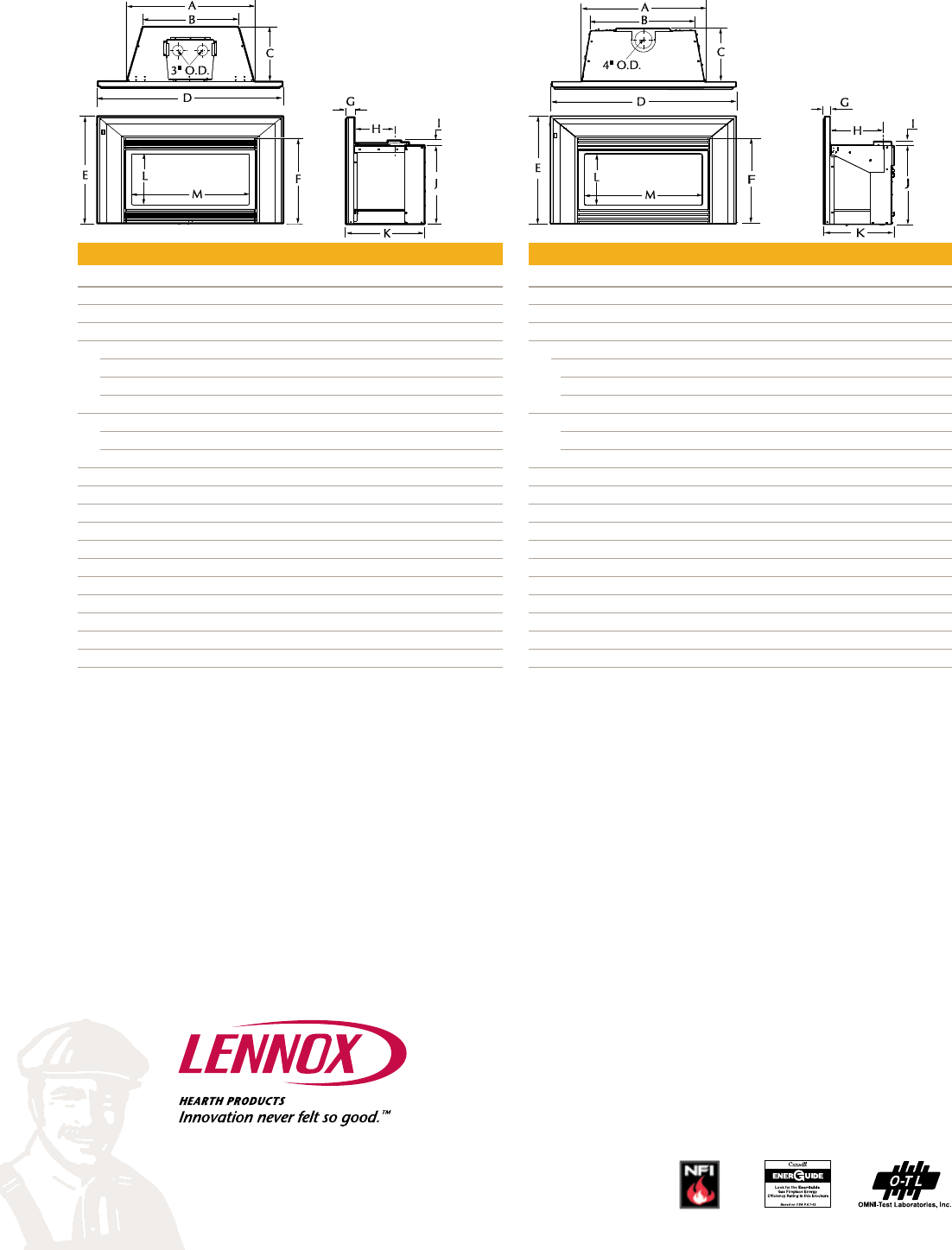

DIMENSIONS
DIRECT-VENT INSERTS
EDVI25 EDVI30 EDVI35
A 26-5/8"
( 676 mm )
25-15/16"
( 659 mm )
32-1/4"
( 814 mm )
B 20-1/2"
( 521 mm )
22-1/4"
( 578 mm )
24-1/4”
( 614 mm )
C 13-3/8"
( 356 mm )
13-3/8"
( 341 mm )
16-7/8"
( 427 mm )
Beveled Surround
Small 41-1/16"
( 1043 mm )
40-1/4"
( 1022 mm )
N/A
D Medium 44-1/8"
( 1121 mm )
45-3/4"
( 1162 mm )
48-1/16"
( 1221 mm )
Large N/A 49-1/4"
( 1251 mm )
N/A
Small 26-1/16"
( 662 mm )
27-1/2"
( 699 mm )
N/A
E Medium 27-5/8"
( 702 mm )
30-1/4"
( 768 mm )
34-1/16"
( 865 mm )
Large N/A 30"
( 762 mm )
N/A
Flat Surround*
D 48"
( 1219 mm )
48"
( 1219 mm )
50"
( 1270 mm )
E 34"
( 834 mm )
34"
( 834 mm )
40"
( 1016 mm )
F 19-1/2"
( 483 mm )
20-7/8"
( 530 mm )
26-11/16"
( 678 mm )
G 1-15/16"
( 49 mm )
1-15/16"
( 46 mm )
1-15/16"
( 46 mm )
H see note** 9-15/16"
( 252 mm )
9-7/8"
( 251 mm )
I 1-1/4"
( 32 mm )
1-9/16"
( 37 mm )
1-5/8"
( 41 mm )
J 17-1/4"
( 438 mm )
20-1/4"
( 514 mm )
24"
( 610 mm )
K 15-1/2"
( 405 mm )
15-1/4"
( 387 mm )
18-3/4"
( 467 mm )
L
10-7/8"
( 276 mm )
11-3/16"
( 284 mm )
15-5/8"
( 397 mm )
M 24-7/8"
( 632 mm )
23-1/4"
( 591 mm )
29-7/16"
( 748 mm )
B-VENT INSERTS
EBVI25 EBVI30
A 26-1/2"
( 675 mm )
26-1/16"
( 662 mm )
B 20-1/2"
( 520 mm )
22-3/8"
( 568 mm )
C 13-5/8"
( 340 mm )
13-5/8"
( 340 mm )
Beveled Surround
Small 41-1/16"
( 1043 mm )
40-1/4"
( 1022 mm )
D Medium 44-1/8"
( 1121 mm )
45-3/4"
( 1162 mm )
Large N/A 49-1/4"
( 1251 mm )
Small 26-1/16"
( 662 mm )
27-1/2"
( 699 mm )
E Medium 27-5/8"
( 702 mm )
30-1/4"
( 768 mm )
Large N/A 30"
( 762 mm )
Flat Surround*
D 48"
( 1219 mm )
48"
( 1219 mm )
E 34"
( 834 mm )
34"
( 834 mm )
F 19-3/8"
( 493 mm )
20-7/8"
( 530 mm )
G 1-15/16"
( 49 mm )
1-15/16"
( 46 mm )
H 11-1/4"
( 282 mm )
11-1/4"
( 292 mm )
I 1-1/4"
( 31 mm )
1"
( 25 mm )
J 17-5/16"
( 439 mm )
20-1/8"
( 508 mm )
K 15-1/4"
( 388 mm )
15-5/8"
( 384 mm )
L 10-7/8"
( 276 mm )
12-3/8"
( 314 mm )
M 24-7/8"
( 632 mm )
23-3/4"
( 595 mm )
* The flat surround is provided unpainted and is designed to be custom
trimmed by your installer to fit the shape and dimensions of an inside
fit installation. Paint after trimming. See installation instructions for
complete information.
** Air inlet = 10-9/16
"
( 268 mm ) and
Exhaust outlet = 9-5/8
"
( 224 mm )
