MINIMUM CLEARANCE TO COMBUSTIBLES
MODEL ADJACENT WALL INSERT TO MANTEL FLOOR MINIMUM*
EDVI25 8" minimum 12" to 15-1/2" minimum** 0" to non-combustible
EBVI25 8" minimum 12" to 15-1/2" minimum** 0" to non-combustible
EDVI30 8" minimum 12" to 18" minimum** 0" to non-combustible
EBVI30 8" minimum 12" to 18" minimum** 0" to non-combustible
EDVI35 8" minimum 12" to 18" minimum** 0" to non-combustible
* Requires up to 16" hearth extension from fireplace face. If hearth is elevated 7" min.,
no hearth extension is required. Refer to owner’s manual.
** Minimum mantel height from top of louvers varies depending on mantel projection.
Please refer to owner’s manual.
MINIMUM FIREPLACE OPENINg
MODEL FRONT WIDTH (A) HEIGHT (B) DEPTH (C) BACK WIDTH (D)
EDVI25 27" 19" 14-1/2" 23-1/4"
EBVI25 27" 19" 14-1/2" 23-1/4"
EDVI30 26-1/2" 22" 14" 22-1/2"
EBVI30 26-1/2" 21" 14" 22-1/2"
EDVI35 32-1/4" 25" 17" 25"
A
B
D
C
SPECIFICATIONS
MODEL GAS
BTU/HR
ENERGUIDE
STEADY STATE
*
EDVI25
NG 25,000 65% 86%
LP 25,000 66% 89%
EBVI25
NG 25,000 64% 79%
LP 25,000 68% 81%
EDVI30
NG 30,000 69% 87%
LP 28,000 70% 89%
EBVI30
NG 30,000 62% 83%
LP 28,000 60% 82%
EDVI35
NG 35,000 66% 86%
LP 34,000 70% 88%
*Based on maximum vent configuration.

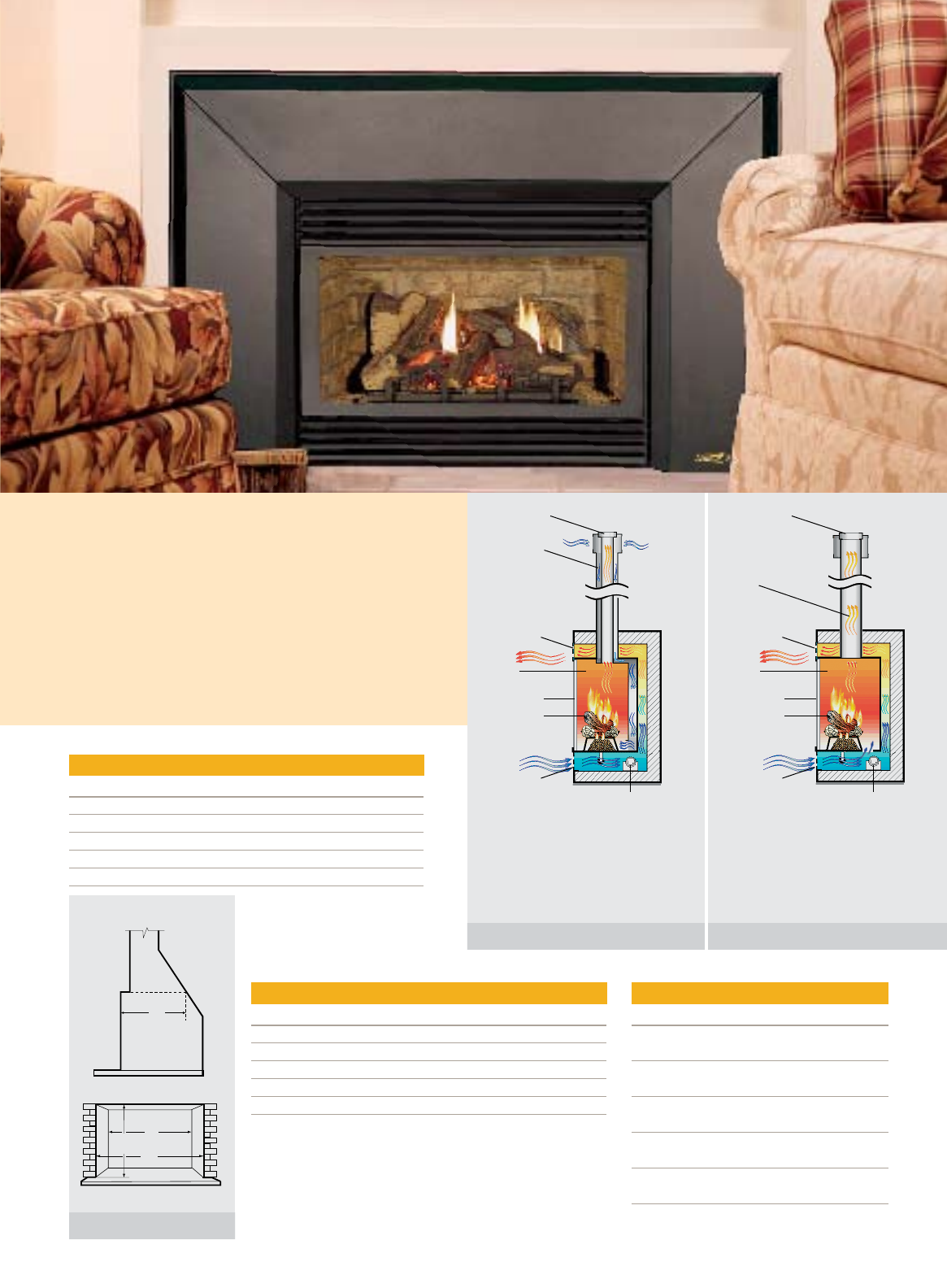

DIRECT-VENT AND B-VENT OPTIONS
Elite
™
Series gas inserts are available in two venting
configurations. Direct-vent models receive 100% of their
combustion air from outside of the home for greater
efficiency and are ideal for airtight homes. We also offer
B-vent inserts that draw combustion air from inside the
home so they require less chimney flue space for ducting.
Both systems feature ceramic glass panels that seal the
combustion area for efficiency and safe indoor air quality.
DIrEcT-VENT
Draws combustion air from
outside and returns combustion
exhaust back to the outside of
the house.
B-VENT
Draws combustion air from
inside the home and vents
combustion exhaust to
the outdoors.
Outside Exhaust
Outside Intake
Warm Air Out
Sealed
Combustion Area
Ceramic Glass
Ceramic Fiber
Log Set
Cool
Room Air In
Air Blower
Outside Exhaust
B-vent
Warm Air Out
Sealed
Combustion Area
Ceramic Glass
Ceramic Fiber
Log Set
Cool
Room Air In
Air Blower
Typical Fireplace
Front View
Side View
