15
5. OPERATION

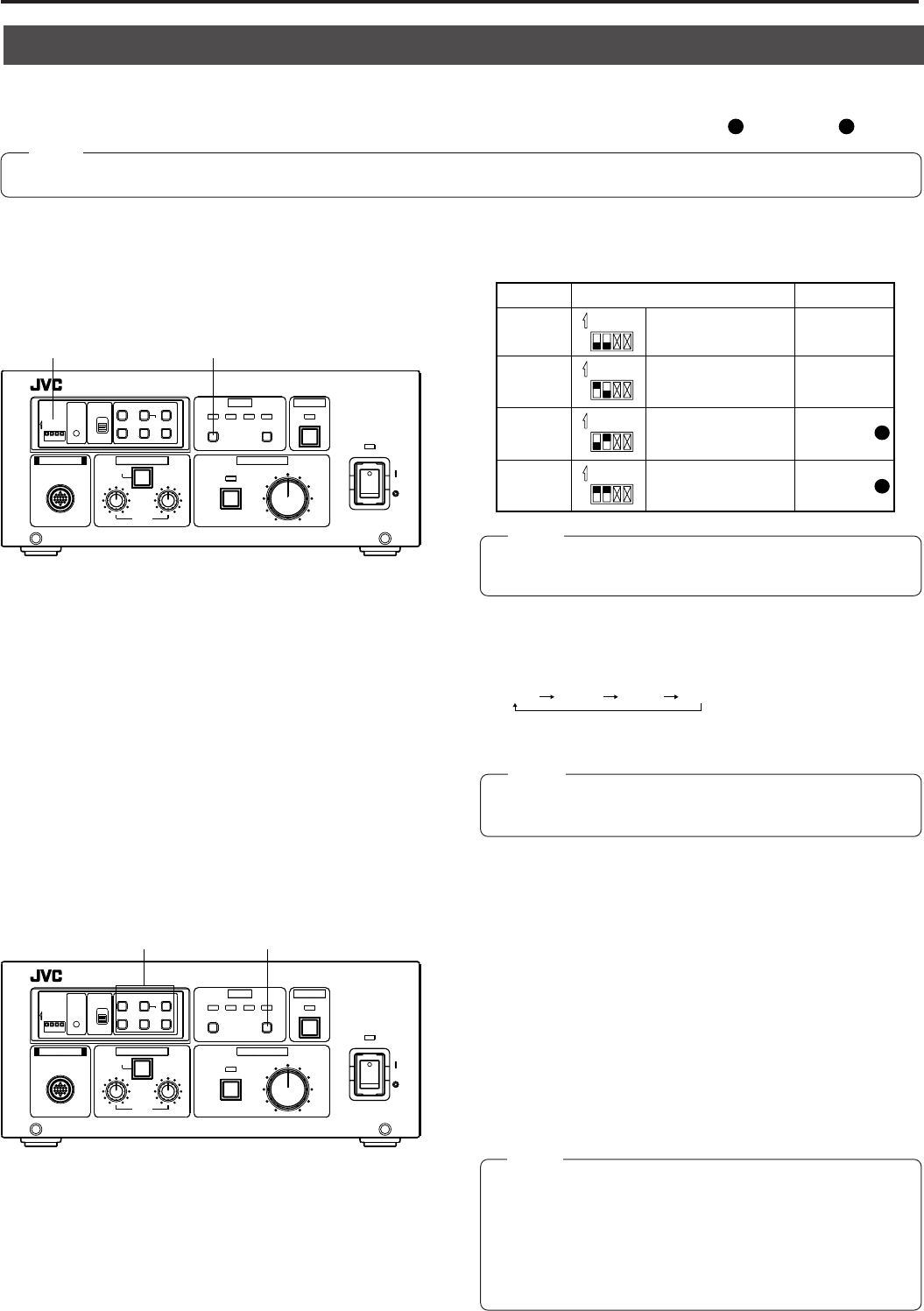

FILE SETTING
Ⅵ Scene File Setting
Select the “Scene File” with the dip switch 1 and 2 according
to the purposes.
Note:
Switch off the power when switching the Scene File over. If
it is carried out while the power is ON, it will not be changed.
Ⅵ FILE Setting
Each Scene File has four of sub files (FILE) to be set.
Each time the SELECT button is pressed, it is switched in the
order of
FILE1 FILE2 FILE3 FILE4
.
It takes 1 second to switch over the FILE. LED blinks rapidly
during the FILE switching operation.
Note:
Do not perform other operations during the LED blinking, it
may cause the KY-F58 to malfunction.
The FILE setting is completed when the LED stops blinking, and
lights.
CAMERA CONTROL UNIT KY-F58
SELECT buttonDIP switch
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL
ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF
Scene File
Dip switch setting
1. OFF
2. OFF
3, 4. Do not switch over
1. ON
2. OFF
3, 4. Do not switch over
1. OFF
2. ON
3, 4. Do not switch over
1. ON
2. ON
3, 4. Do not switch over
Example for use
Standard
setting
Slit
Inspection
Microscope
ON
4321
ON
4321
ON
4321
ON
4321
A
B
C
D
1
Microscope
2
CAMERA CONTROL UNIT KY-F58
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL
ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF
Changing setting
values
MEMORY button
Ⅵ Changing setting values
The setting value is changed for each file.
Refer to the “6. SETTINGS ON THE MENU SCREEN” on
page 18.
Ⅵ Registration to the FILE
Setting values can be registered to each FILE.
Press the MEMORY button for 2 sec. or more for registration.
The setting value is registered to the FILE which LED lights. It
takes approx. 2 sec. for registration. During the registration,
the LED blinks slowly.
The FILE registration is completed when the LED stops blink-
ing, and lights.
Note:
•
To register a value which has been changed on the MENU
screen or with a volume level knob, make sure to register
any changes in the selected file. If the power is turned off
without registering the changes, they will be automatically
erased.
• Do not perform other operations during the LED blinking, it
may cause the KY-F58 to malfunction.
There are four scene files to be set by dip switch depending on the operating conditions.
Scene File A including four sub files are all set to the standard shipment setting values. Change the settings according to the requirements.
Scene File B, C and D should be set to required file settings before use such as Slit inspection, Microscope
1
, Microscope
2
, etc.
Note:
Before carry out operations below, make sure the LOCK switch is turned OFF.
