Adjusting Standard Tray Paper Guides
Printer Tasks 3-5
Printer Tasks

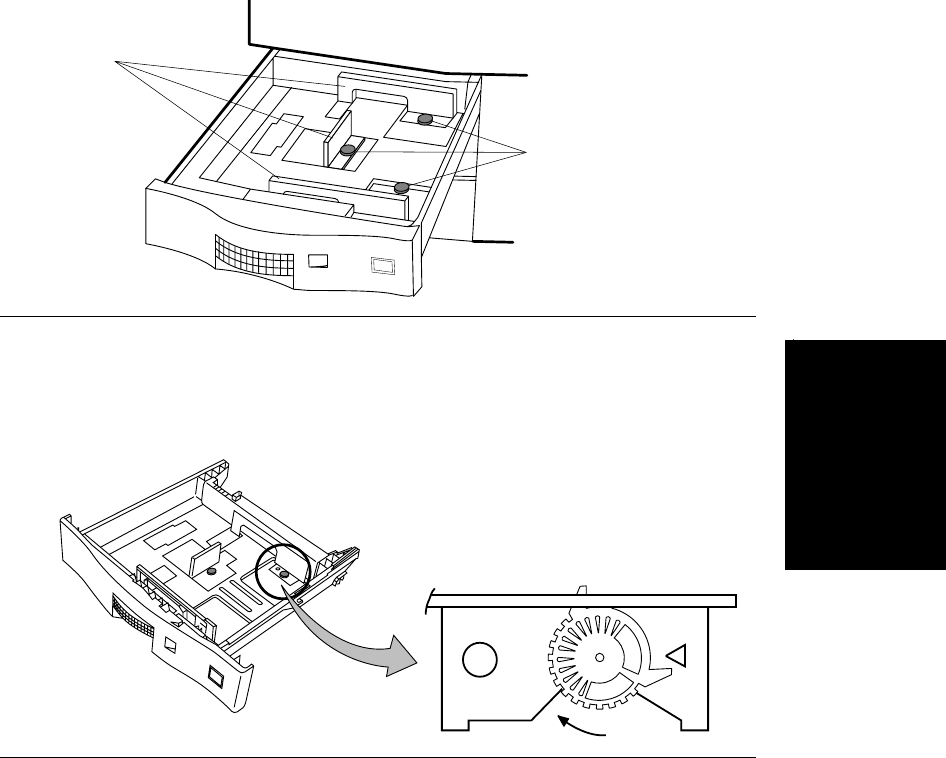

1. Each paper guide has a blue locking thumbwheel, as shown in Figure 3-5.
Figure 3-5 Paper guides
2. Turn the blue locking thumbwheels on each paper guide counterclockwise to the OPEN
position (Figure 3-6).
Figure 3-6 Locking device
Lift paper guides out of their current locations and place them in the new paper size locations.
The paper size indicators on the tray are visible through the round circle cutout on the paper
guide, as shown in Figure 3-7.
Guides
(3) Locking devices
LTR
LTR
LGR
C
L
O
S
E
O
P
E
N
LTR
