Diverter Assembly
Caution
Support the Diverter Assembly access door during this procedure to prevent
damage to the plastic hinge pins.
1 Open the Diverter Assembly access door and release the support struts
(Figure 6-12, callout 1) by sliding the strut ends forward and downward.
2 Remove (6) self-tapping screws, CH106 (Figure 6-12, callout 2).
Note
The access door support struts will fall free when the Diverter Assembly is
lifted away from the access door.
3 Lift the Diverter Assembly up and away from the access door.

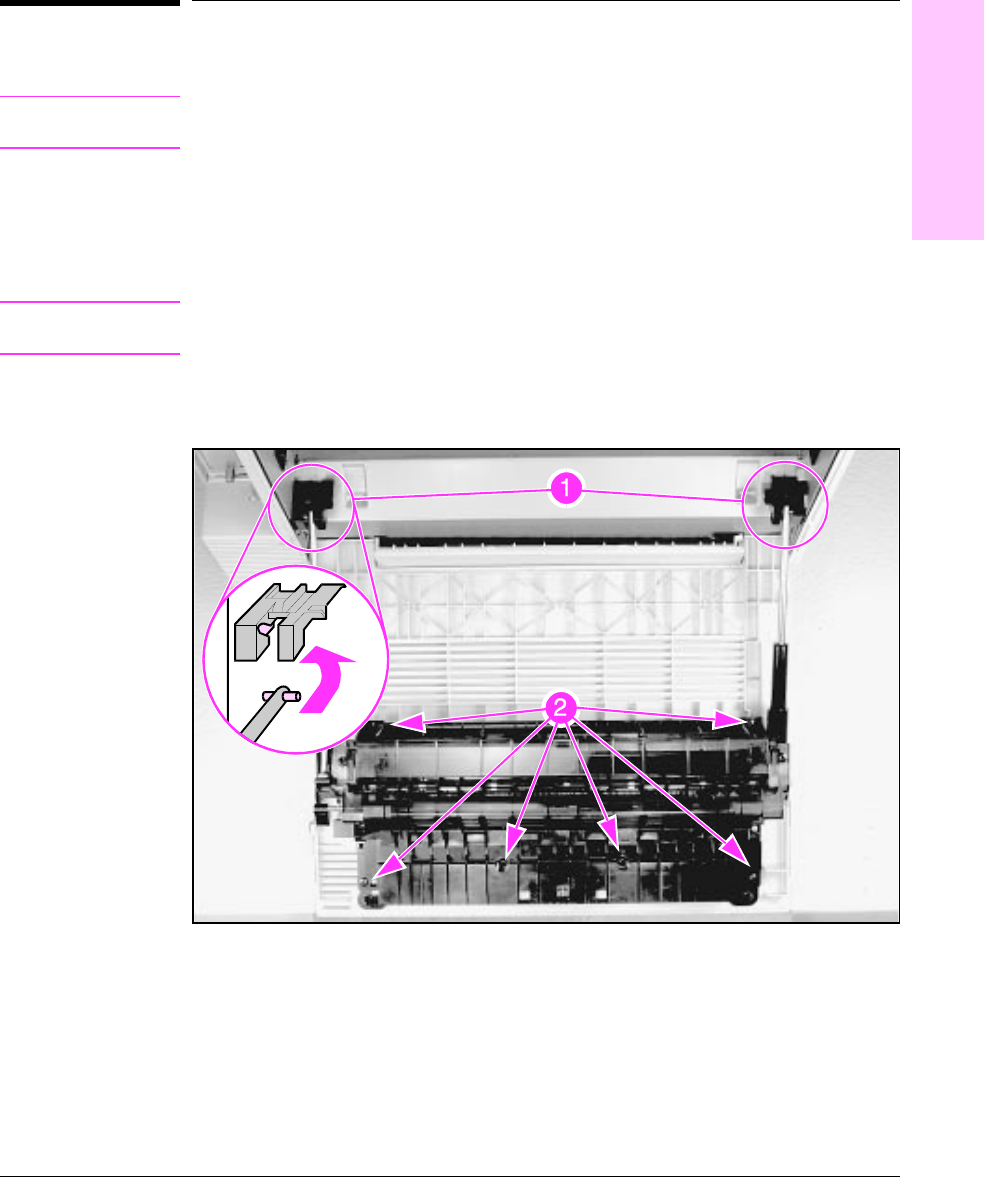

Diverter Assembly
Figure 6-12
6
Removal and
Replacement
Removal and Replacement 6-27
