Reference Manual
300530EN, Rev BA
September 2012
Rosemount 2410
3-18
Section 3. Installation
Figure 3-10 illustrates an example with a number of tanks daisy-chained to a
Rosemount 2410 Tank Hub (requires multiple tanks option).
If a Raptor field device is connected to the end of the Tankbus (fieldbus
segment), the built-in terminator can be used. A separate bus terminator may
be used instead.

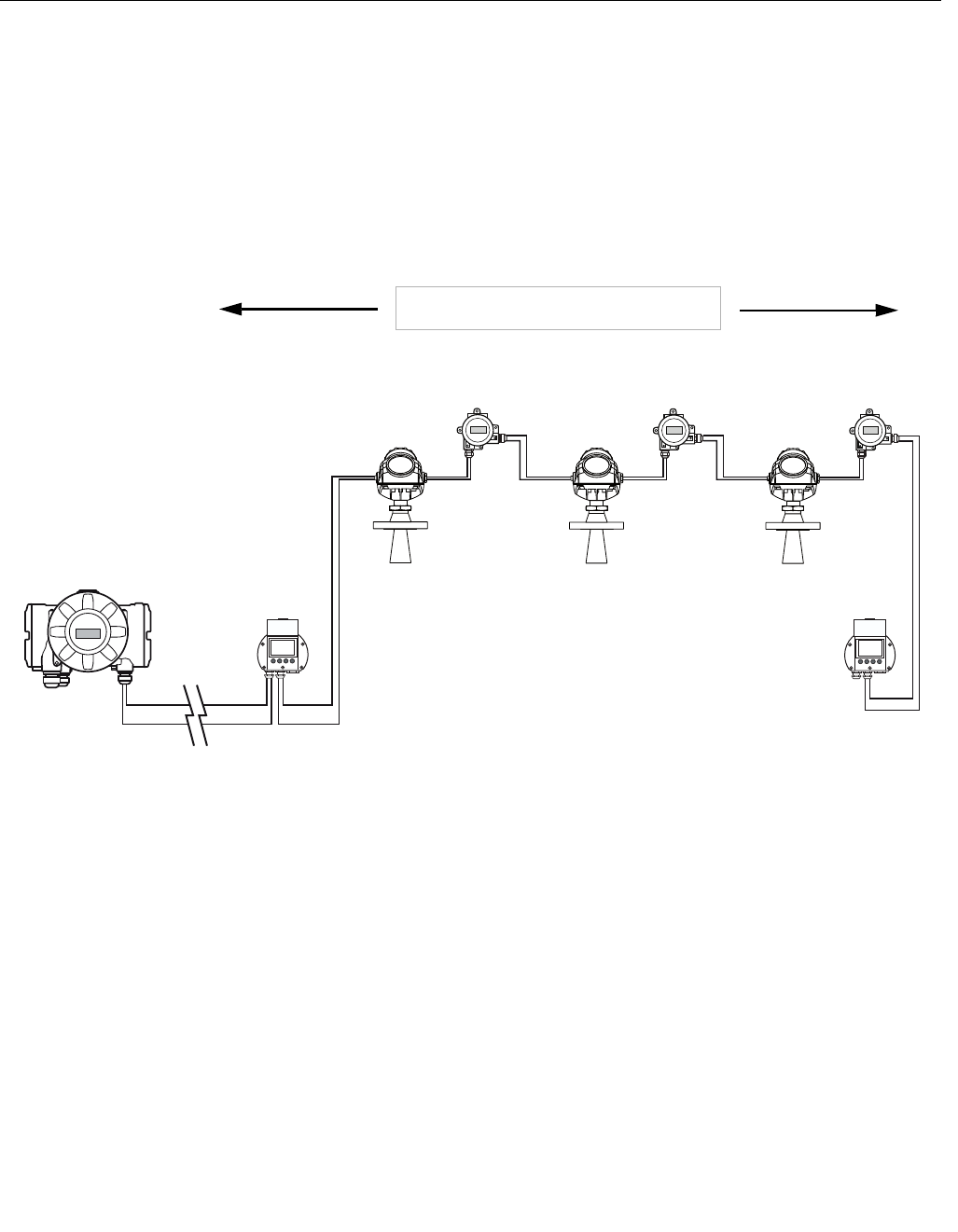

Figure 3-10. Example of a
Raptor system with several
tanks daisy-chained to a
Rosemount 2410
Note that the total length of the Tankbus (fieldbus segment) must be within the
FISCO specifications, see “Cable Selection for the Tankbus” on page 3-6.
Tankbus
5400 Level
Transmitter
2230 Display
644 Temperature
Transmitter
2410 Tank Hub with
intrinsically safe power
supply, integrated power
conditioner, and built-in
terminator
2230 Display with
built-in terminator
Tankbus length up to 1000 meter depending
on number of devices and cable type
