33D-Link DAP-1522 User Manual
Section 3 - Conguration

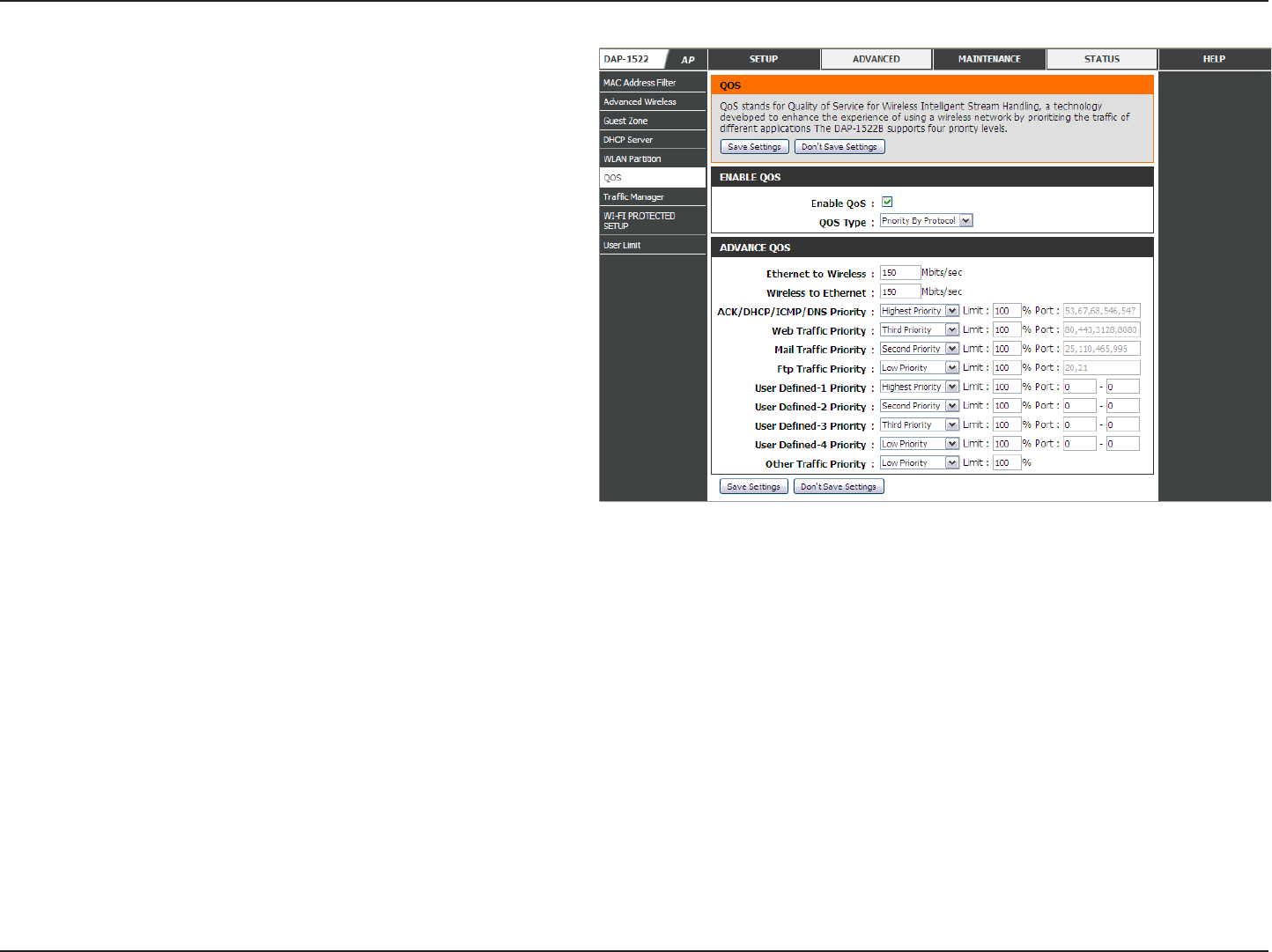

Priority by
Protocol:
Ethernet
Wireless:
Wireless to
Ethernet:
ACK/DHCP/ICMP/
DNS Priority:
Web Trac
Priority:
Mail Trac
Priority:
Ftp Trac
Priority:
Users can set the priority and percentage of total
bandwidth reserved for each of their four traffic
categories. Please note that the combined percentage
value of transmission limits does not have to be
100%. These percentages represent the maximum
bandwidth designated for each trac category.
The value entered here indicates the Ethernet to
wireless speed required before the Advanced QoS
function is enabled. Advanced QoS will be enabled
once the total bandwidth reaches or surpasses the set
value. The suggested range is 800 ~ 96000kbits/sec.
The value entered here indicates the wireless to
Ethernet speed required before the Advanced QoS
function is enabled. Advanced QoS will be enabled
once the total bandwidth reaches or surpasses the set
value. The suggested range is 800 ~ 96000kbits/sec.
Represents the priority value and bandwidth limit
applied to ACK, DHCP, ICMP, and DNS for packet
delivering.
Trac generated by typical Web services (packets sent
through ports 80,443, 3128 and 8080).
Trac generated by e-mail sending and receiving (ports 25, 110, 465 and 995).
Trac generated by FTP Uploading and Downloading (ports 20, 21).
