49

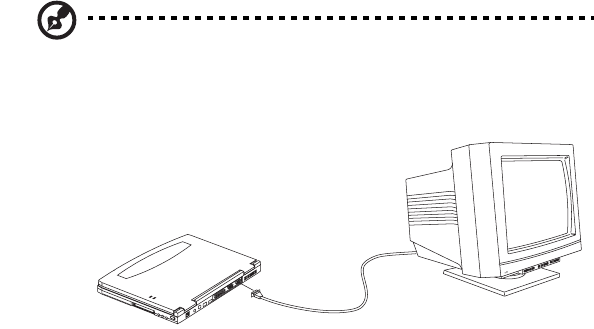

External Monitor
To show graphical effects on a larger display, connect an external
monitor to the external display port. Read the monitor manual
for additional instructions.
Note: If an external monitor is not connected, closing the display cover puts
the computer into standby mode.
Setting Up Dual Display
Dual display allows you to expand your desktop to an external
display device, giving you more desktop space to work on.
To use dual display:
1. Connect an external display device to the external display
port of the computer.
2. Enable and set dual display options:
a. Click on Start, Settings, Control Panel.
b. Double-click on Display.
c. Click on the Settings tab.
d. Click on 2 (the second monitor icon).
e. Click on Yes.
